Air Bag Deactivation Indicator: Service and Repair

PASSENGER AIR BAG DEACTIVATION (PAD) INDICATOR







Removal and Installation

WARNING:
- Always wear safety glasses when repairing an air bag supplemental restraint system (SRS) vehicle and when handling an air bag module. This will reduce the risk of injury in the event of an accidental deployment.
- To reduce the risk of personal injury, do not use any memory saver devices.

NOTE:
- The air bag warning lamp illuminates when the RCM fuse is removed and the ignition switch is ON. This is normal operation and does not indicate a supplemental restraint system (SRS) fault.
- Repair is made by installing a new part only. If the new part does not correct the condition, install the original part and carry out the diagnostic procedure again.
- The SRS must be fully operational and free of faults before releasing the vehicle to the customer.

1. Depower the system.

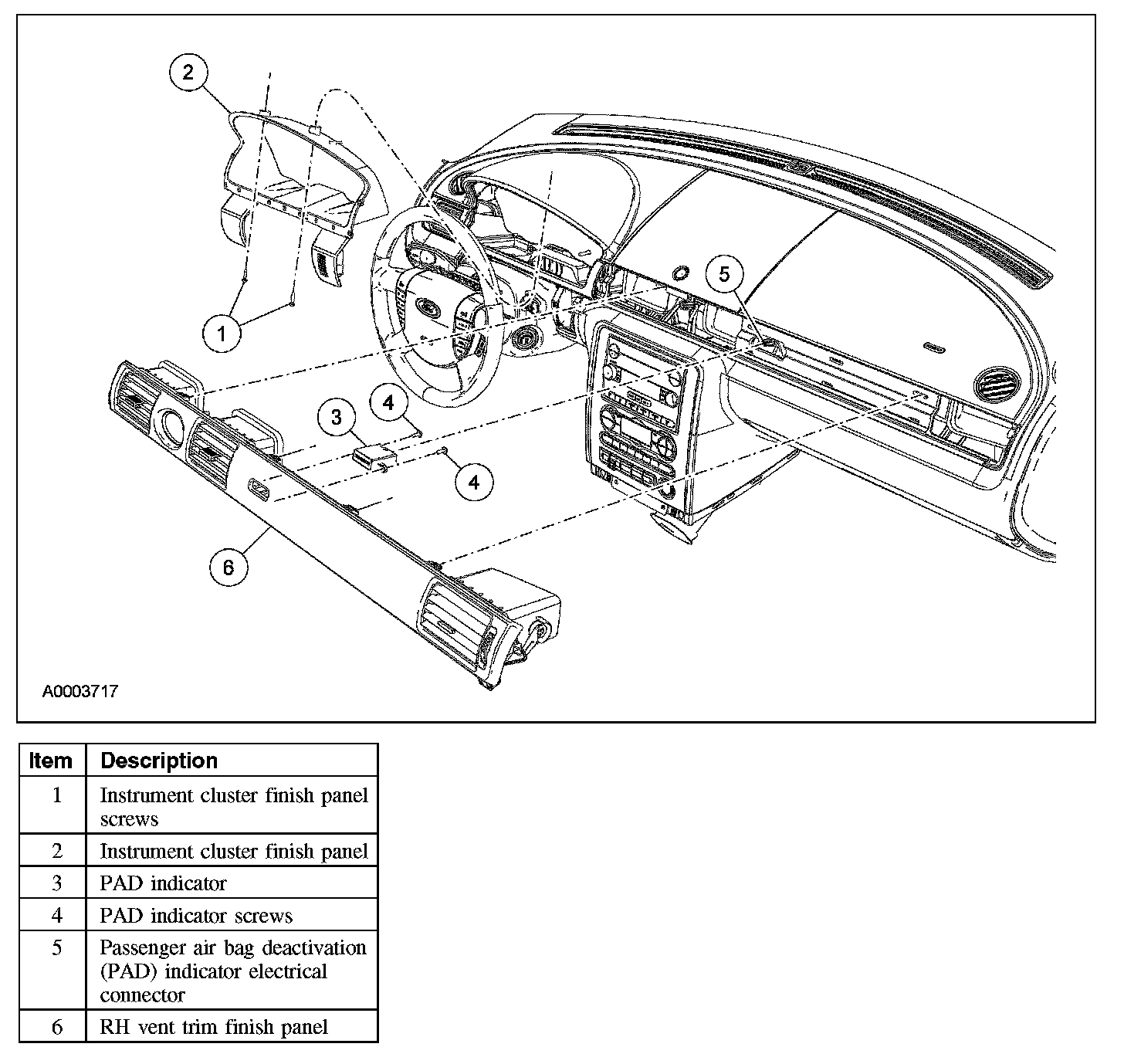

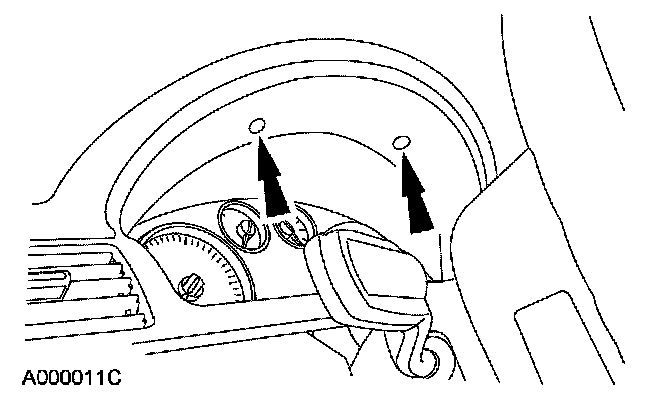

2. Remove the 2 screws from the instrument cluster finish panel.
3. Position out the instrument cluster finish panel enough to release the RH clip to the RH vent trim finish panel.
4. Gently pull outward to release the clips on the RH vent trim finish panel.
5. Disconnect the PAD indicator electrical connector.

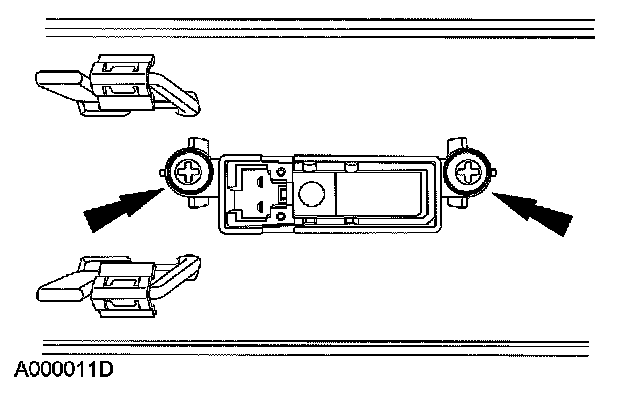

6. Remove the 2 screws and remove the PAD indicator.
7. To install, reverse the removal procedure.
8. Repower the system.
