Intake Air Duct: Service and Repair

AIR CLEANER OUTLET PIPE







Exploded View

Removal and Installation

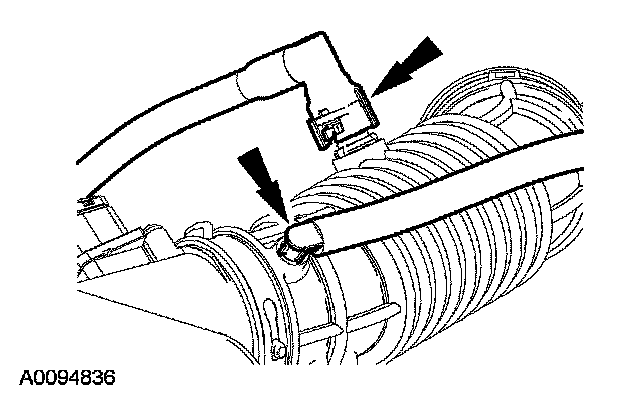

1. CAUTION: The brake aspirator tube must be fully seated in the air cleaner outlet pipe or a vacuum leak will occur.

Disconnect the positive crankcase ventilation (PCV) and brake aspirator tubes from the air cleaner outlet pipe.

2. Loosen the 2 clamps and remove the air cleaner outlet pipe.
- To install, tighten to 5 Nm (44 lb-in).

3. To install, reverse the removal procedure.
