Fuel Injector Wiring Harness: Service and Repair

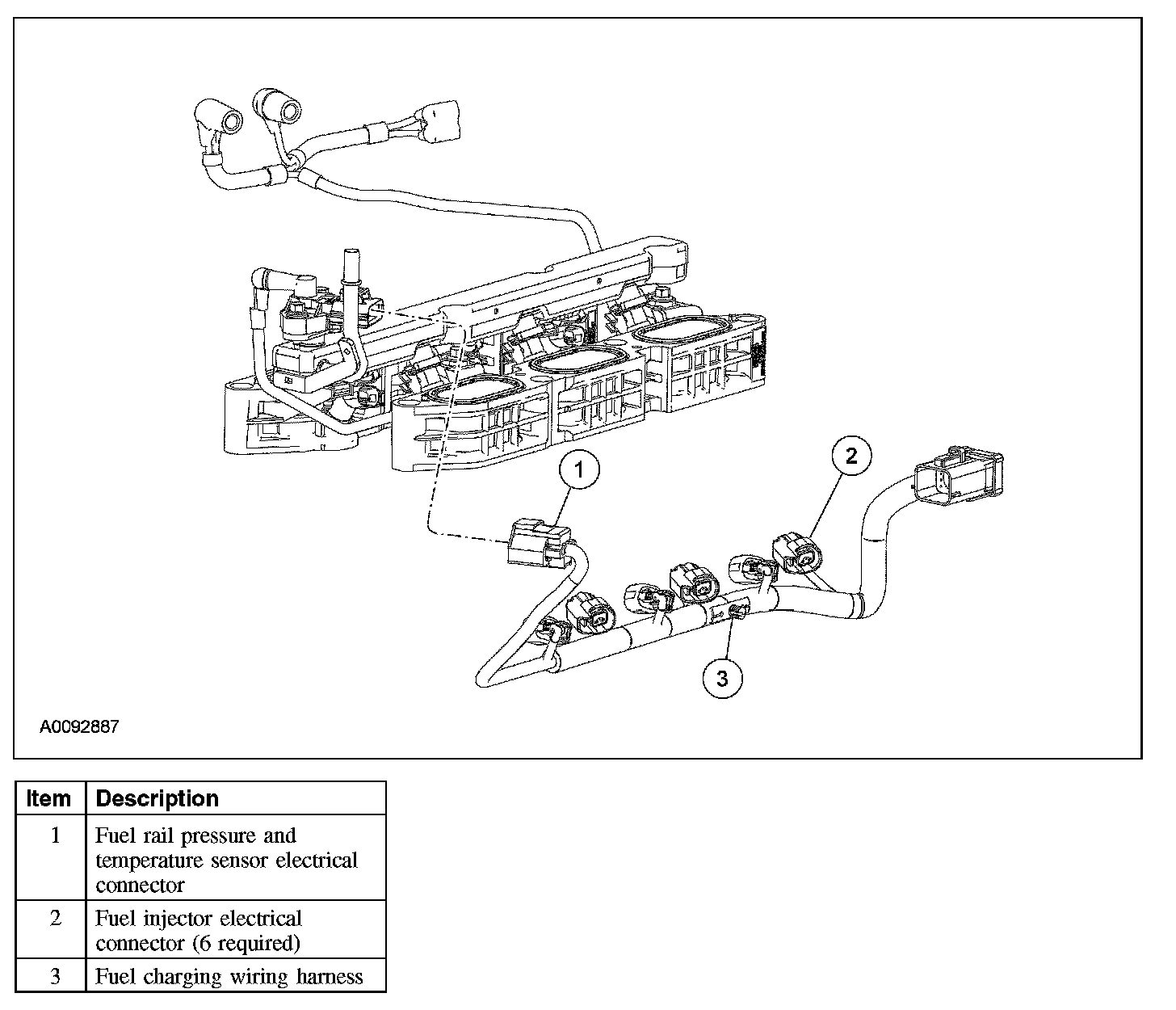

FUEL CHARGING WIRING HARNESSRemoval and Installation
WARNING: Do not smoke or carry lighted tobacco or open flame of any type when working on or near any fuel-related components. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions may result in personal injury.
1. Remove the lower intake manifold.
2. Disconnect the fuel rail pressure and temperature sensor electrical connector.
3. Disconnect the 6 fuel injector electrical connectors.
4. Detach the fuel charging wiring harness from the lower intake manifold assembly.
5. To install, reverse the removal procedure.
