Tests KN: Variable Speed Electric Cooling Fan

PINPOINT TEST KN: VARIABLE SPEED ELECTRIC COOLING FAN

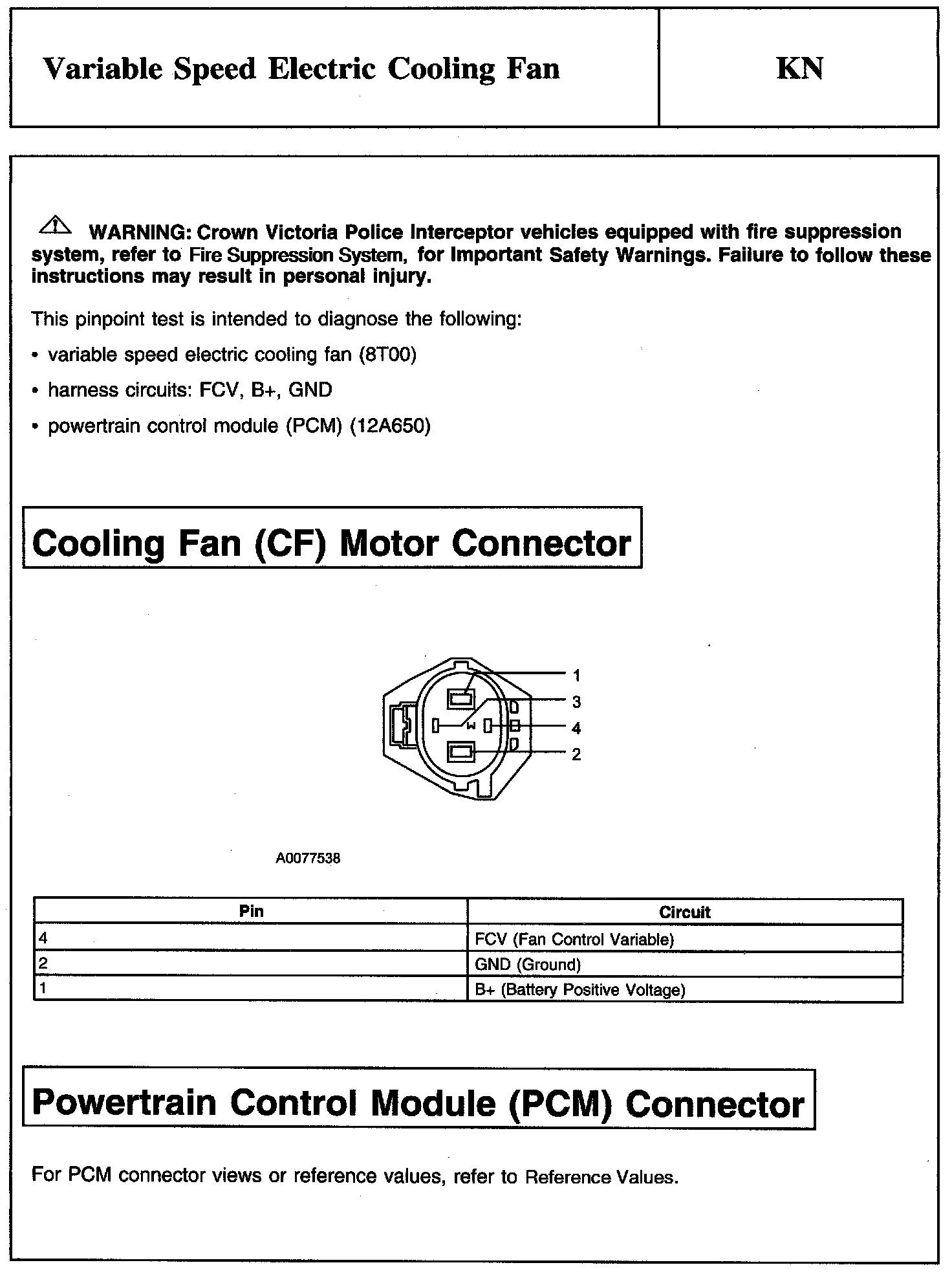

Warning, Cooling Fan (CF) Motor Connector And Powertrain Control Module (PCM) Connector:

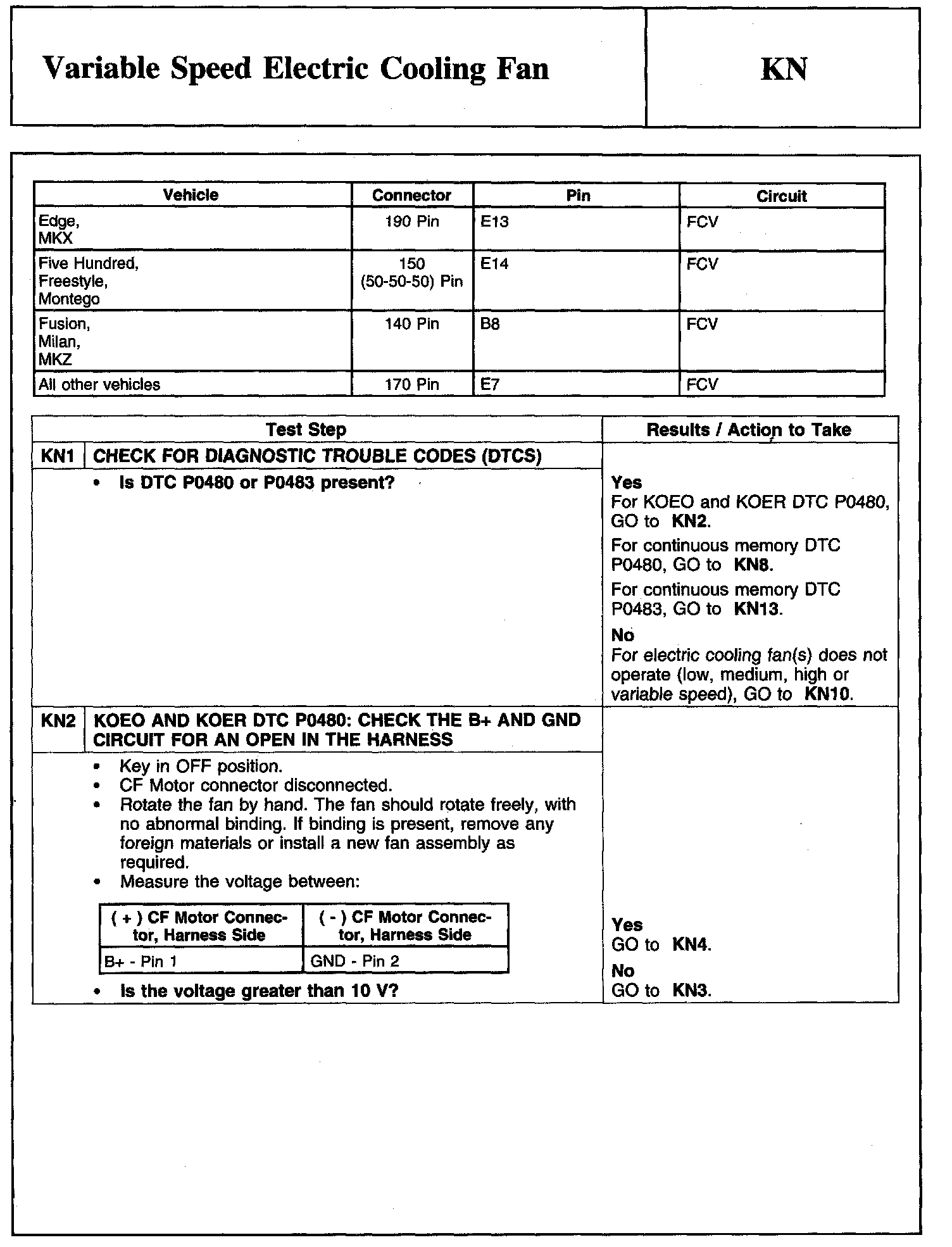

KN1-KN2:

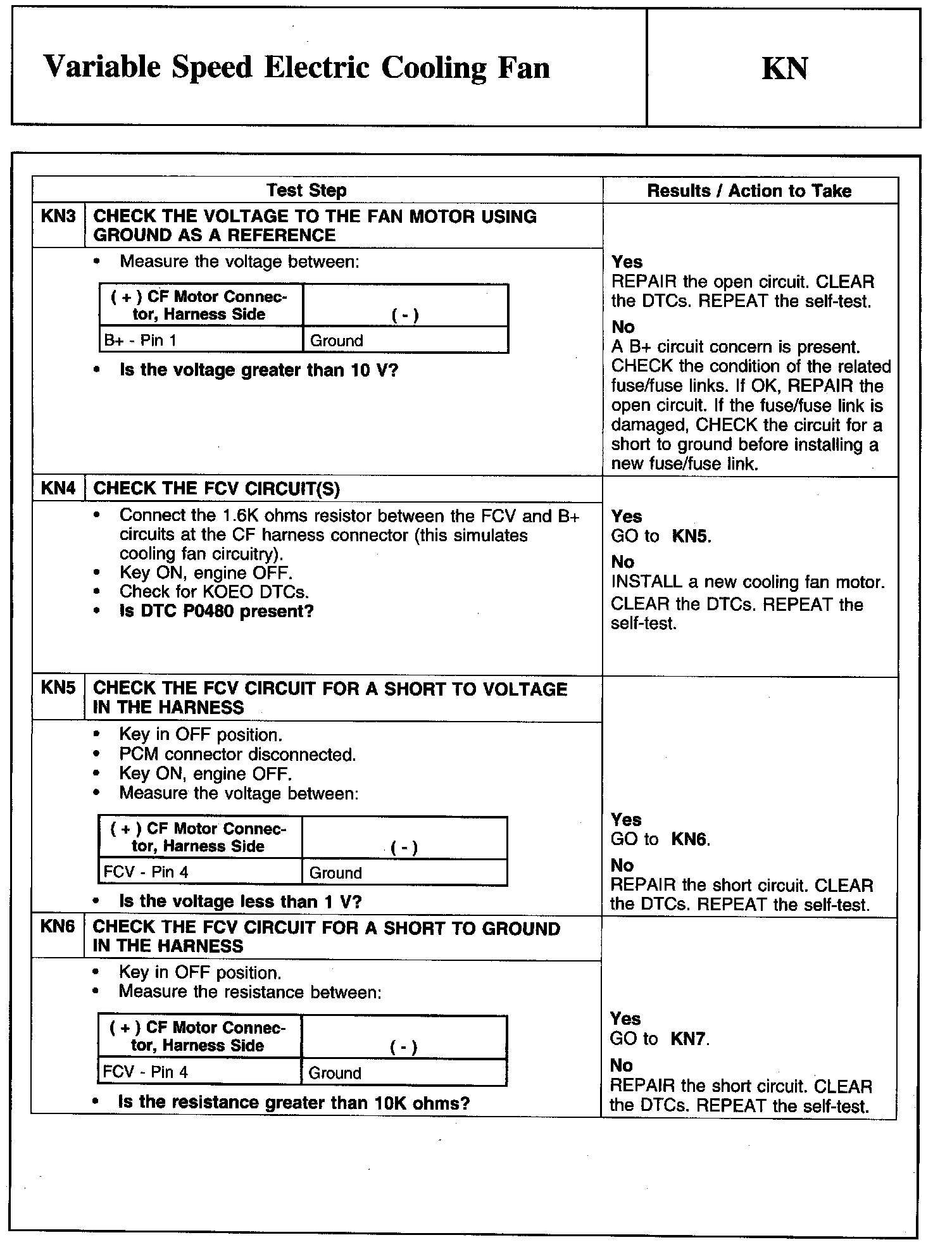

KN3-KN6:

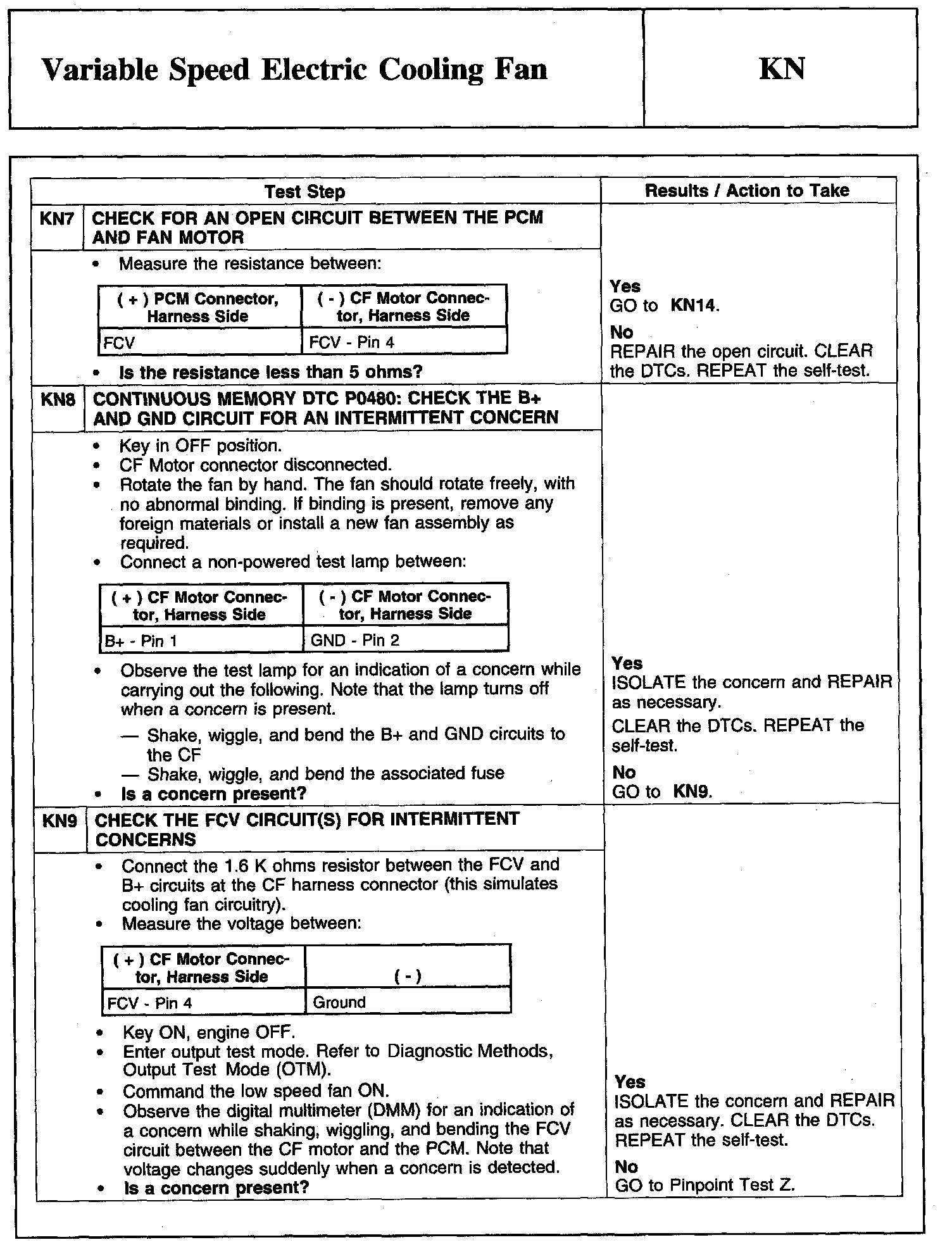

KN7-KN9:

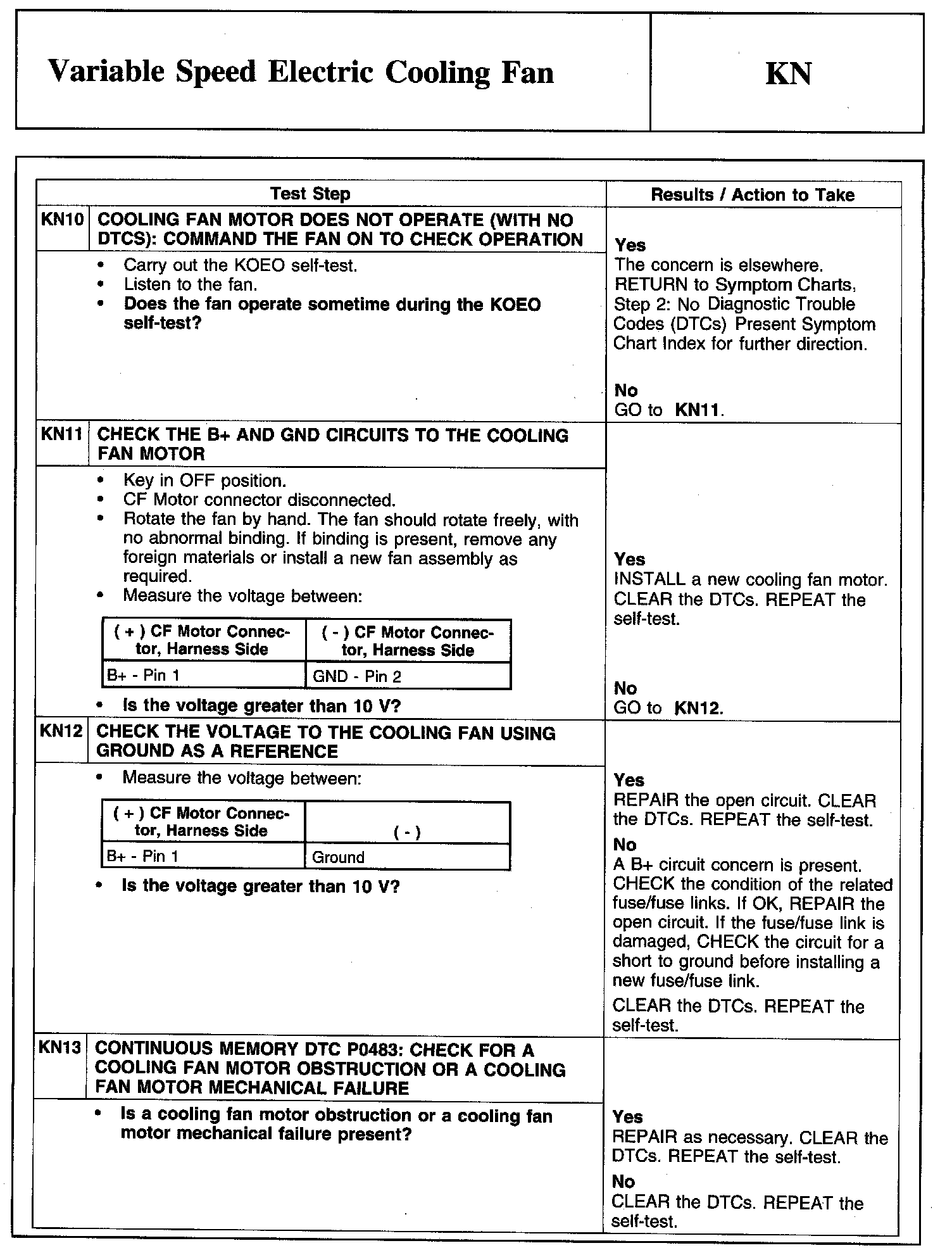

KN10-KN13:

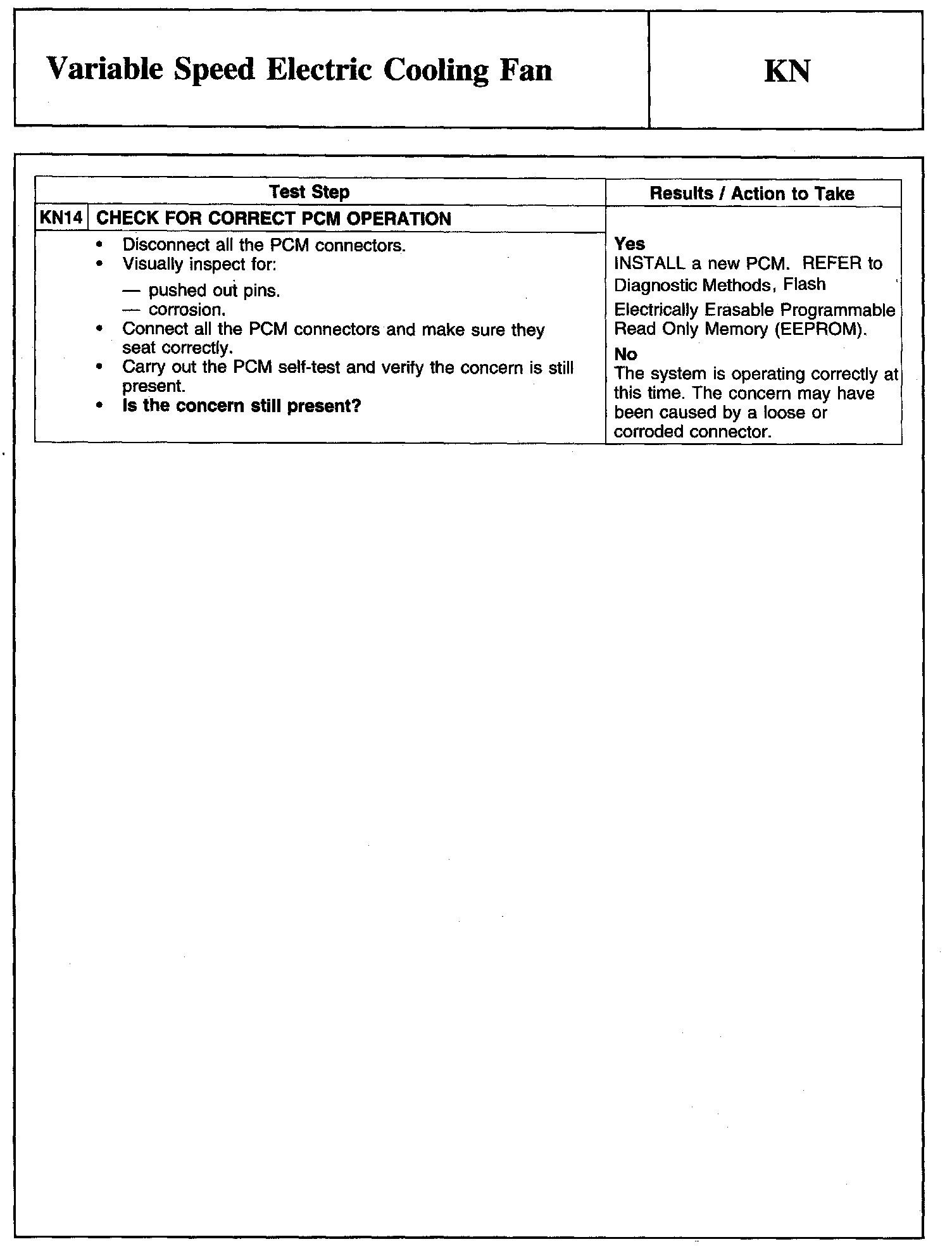

KN14:
