Tests DS: Air Conditioning Pressure (ACP) Transducer Sensor

PINPOINT TEST DS: AIR CONDITIONING PRESSURE (ACP) TRANSDUCER SENSOR

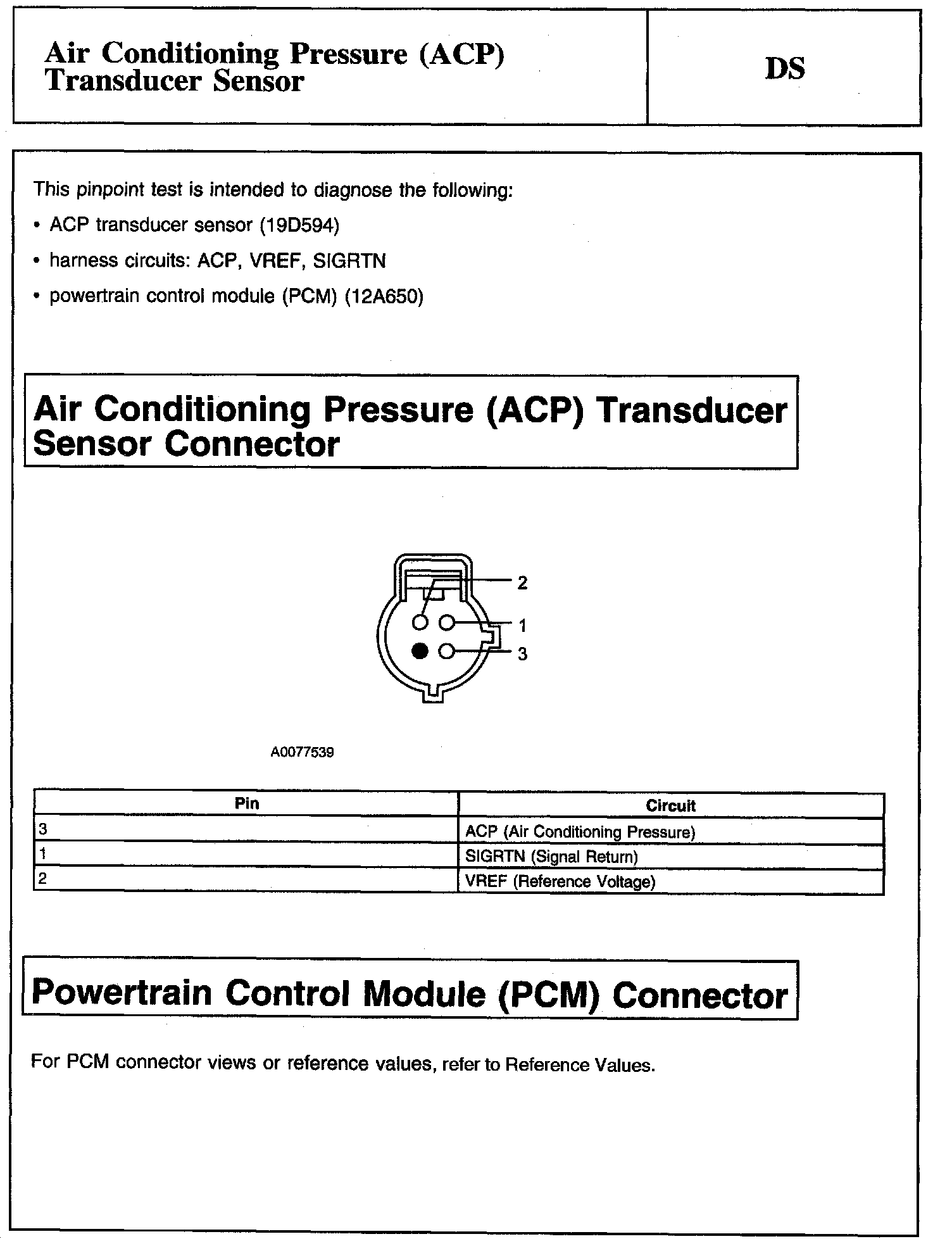

Air Conditioning Pressure (ACP) Transducer Sensor Connector And Powertrain Control Module (PCM) Connector:

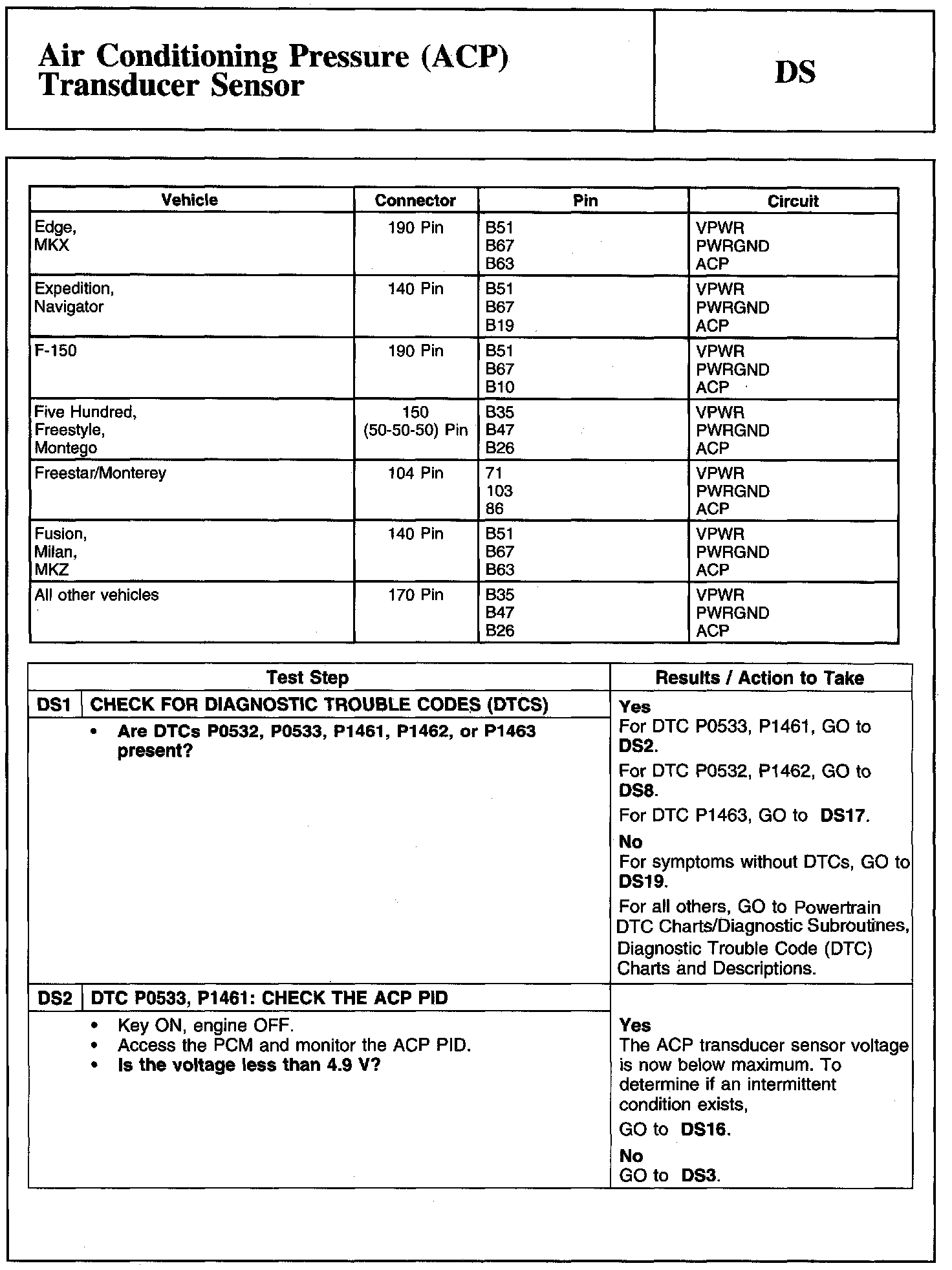

DS1-DS2:

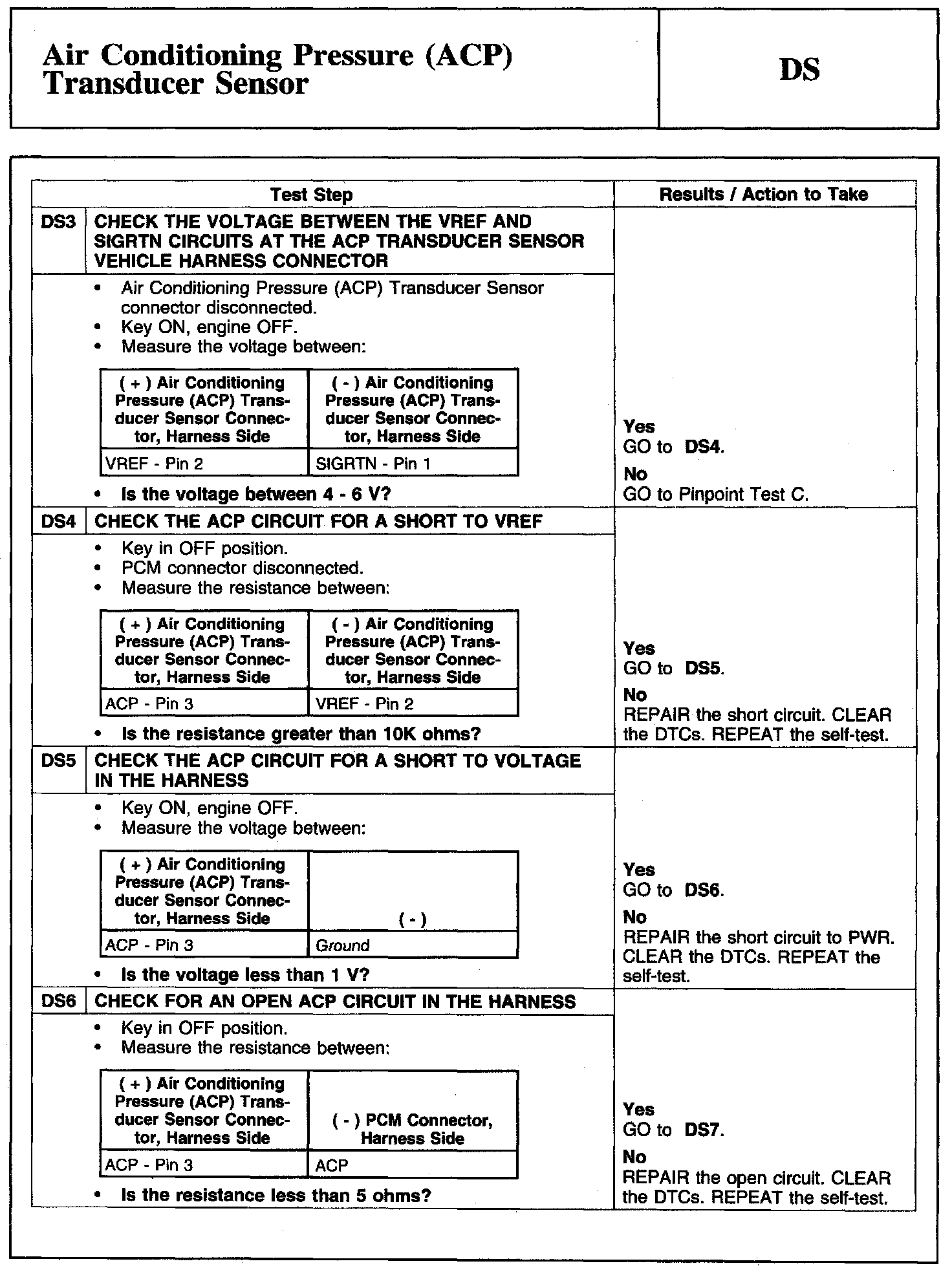

DS3-DS6:

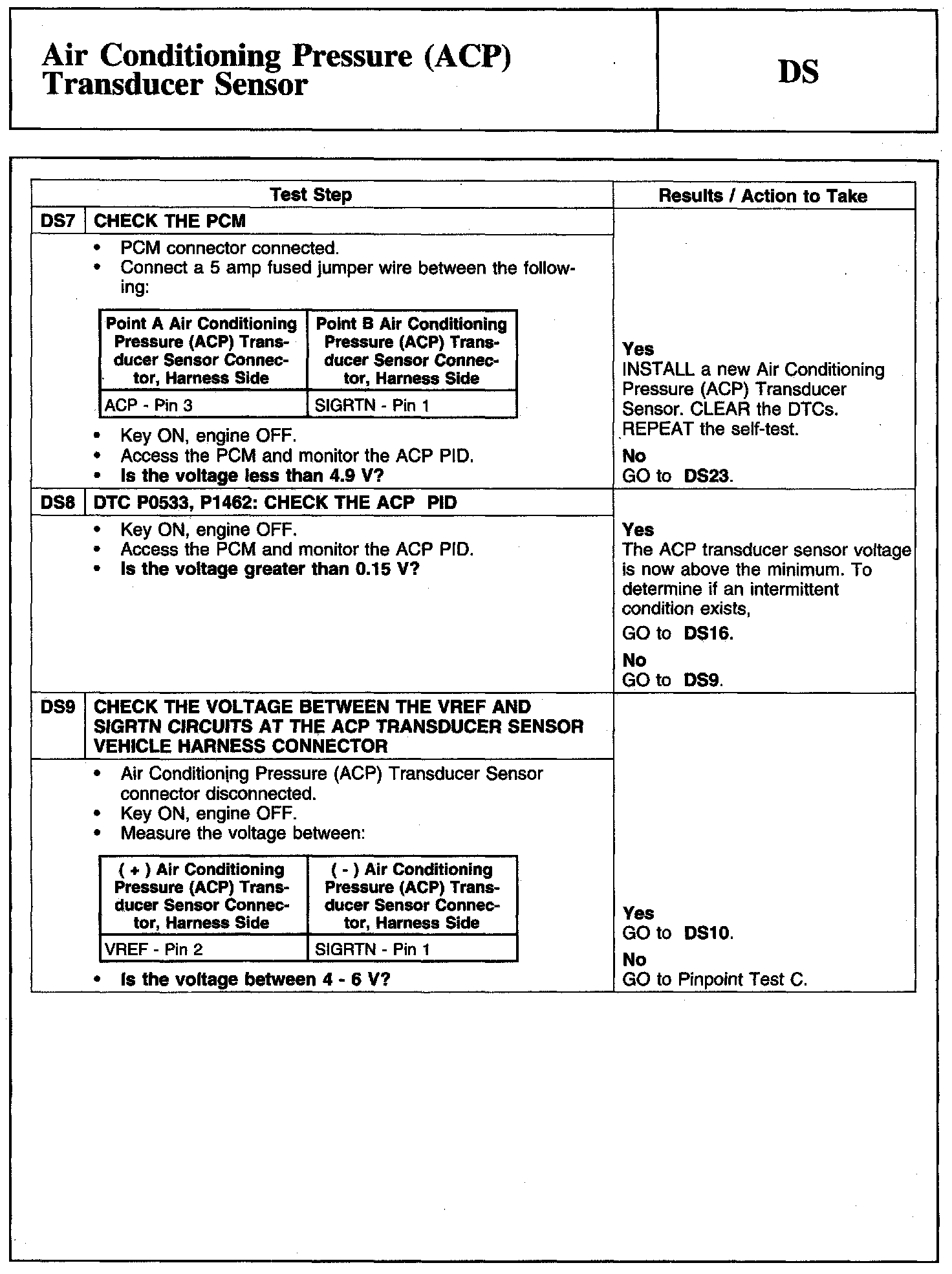

DS7-DS9:

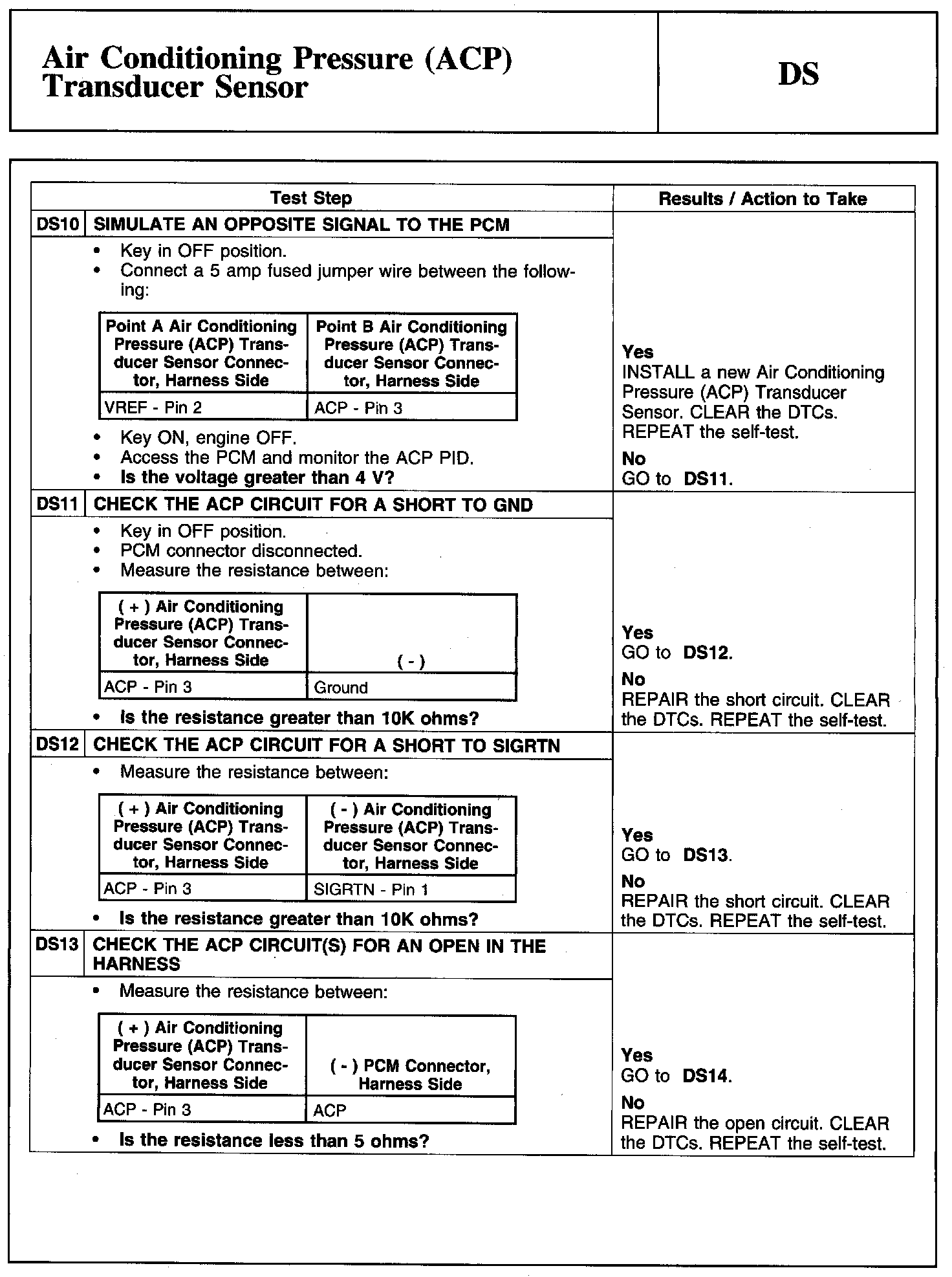

DS10-DS13:






DS14-DS17:

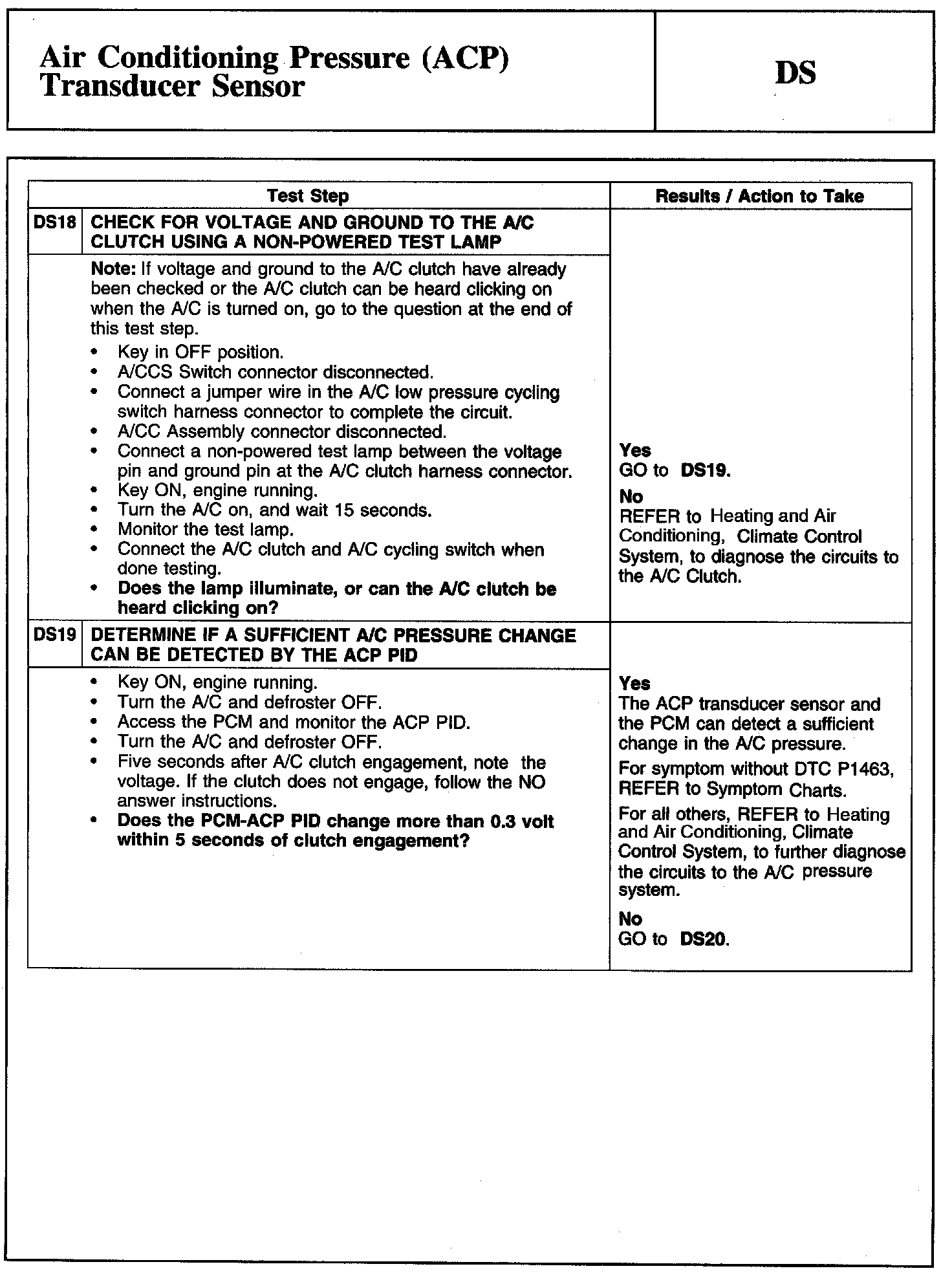

DS18-DS19:

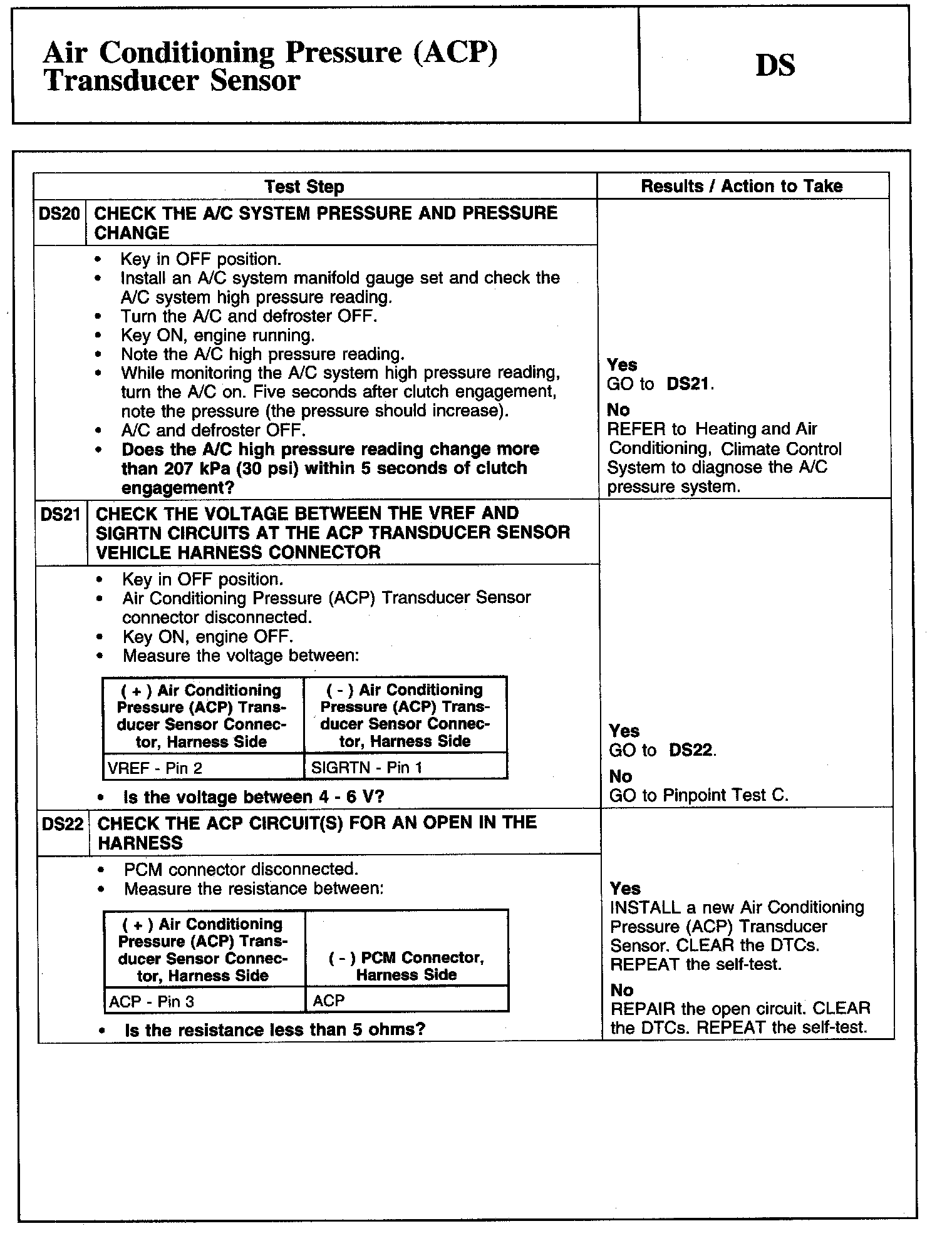

DS20-DS22:

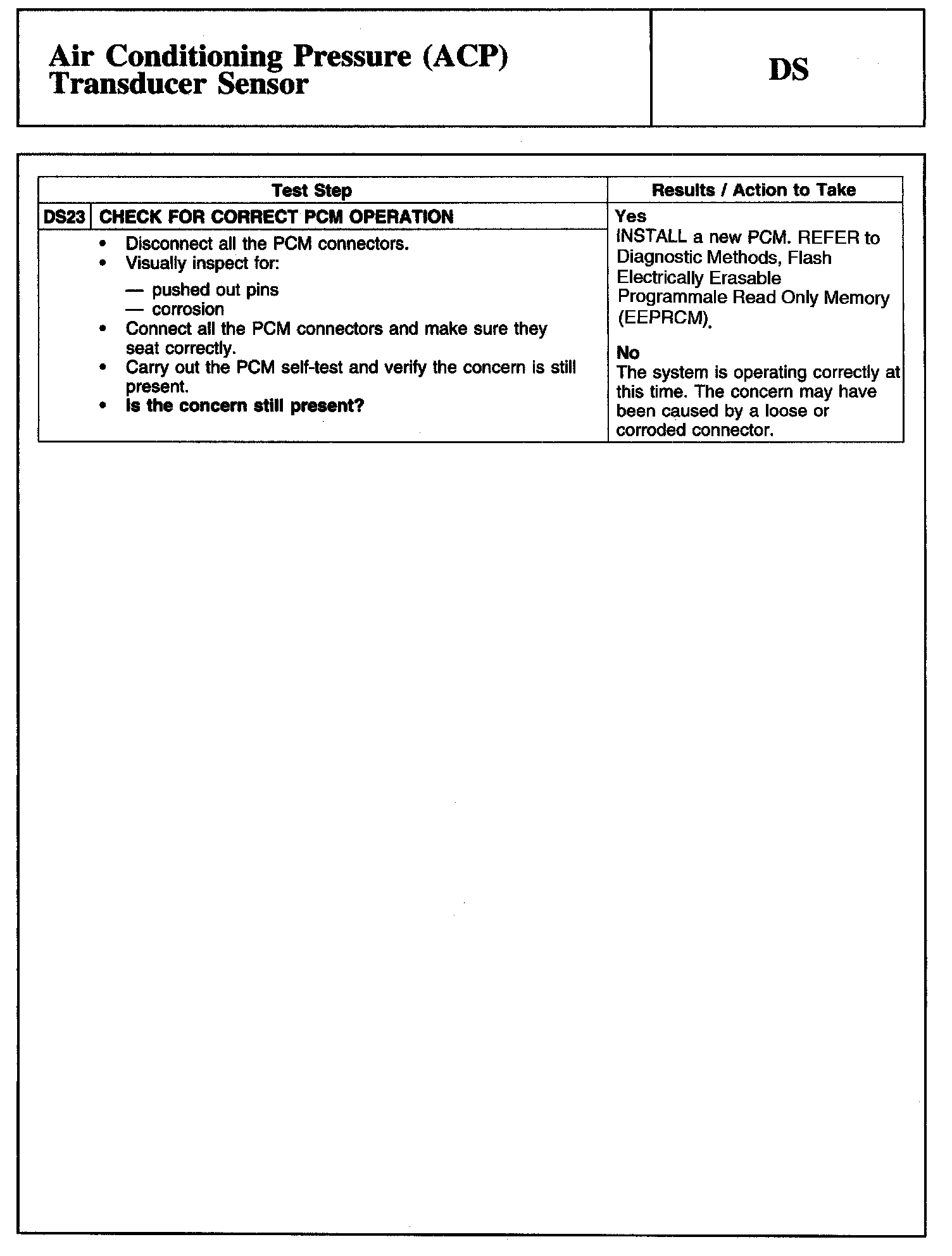

DS23:
