Home >> Mercury >> 2007 >> Montego AWD V6-3.0L VIN 1 >> Repair and Diagnosis >> Lighting and Horns >> Tail Lamp >> Service and Repair

Tail Lamp: Service and Repair

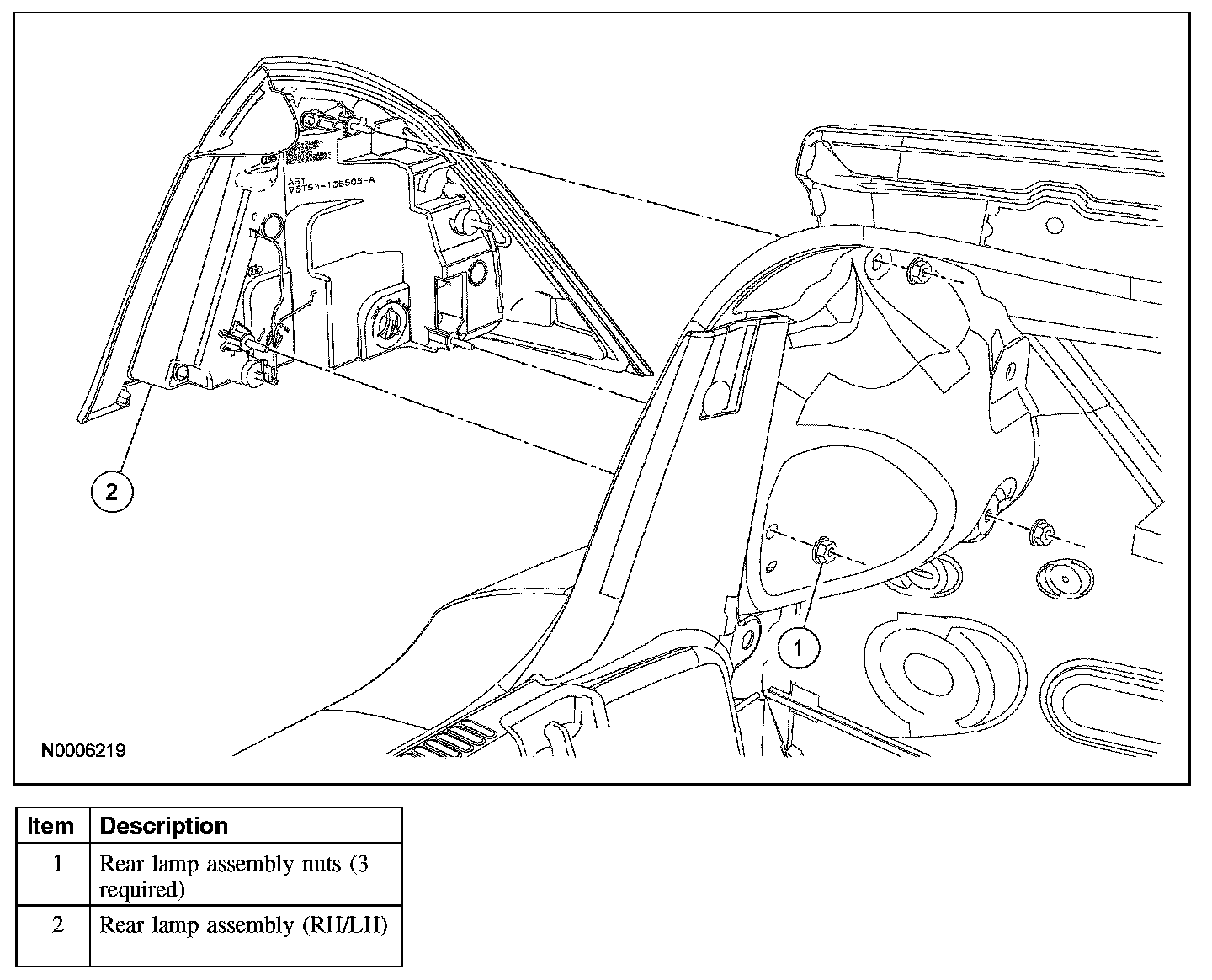

REAR LAMP ASSEMBLY







Removal and Installation
1. Remove the 3 nuts and the rear lamp assembly.
- Disconnect the electrical connector.

2. To install, reverse the removal procedure.
