Headlamp Bulb: Service and Repair

HEADLAMP BULB

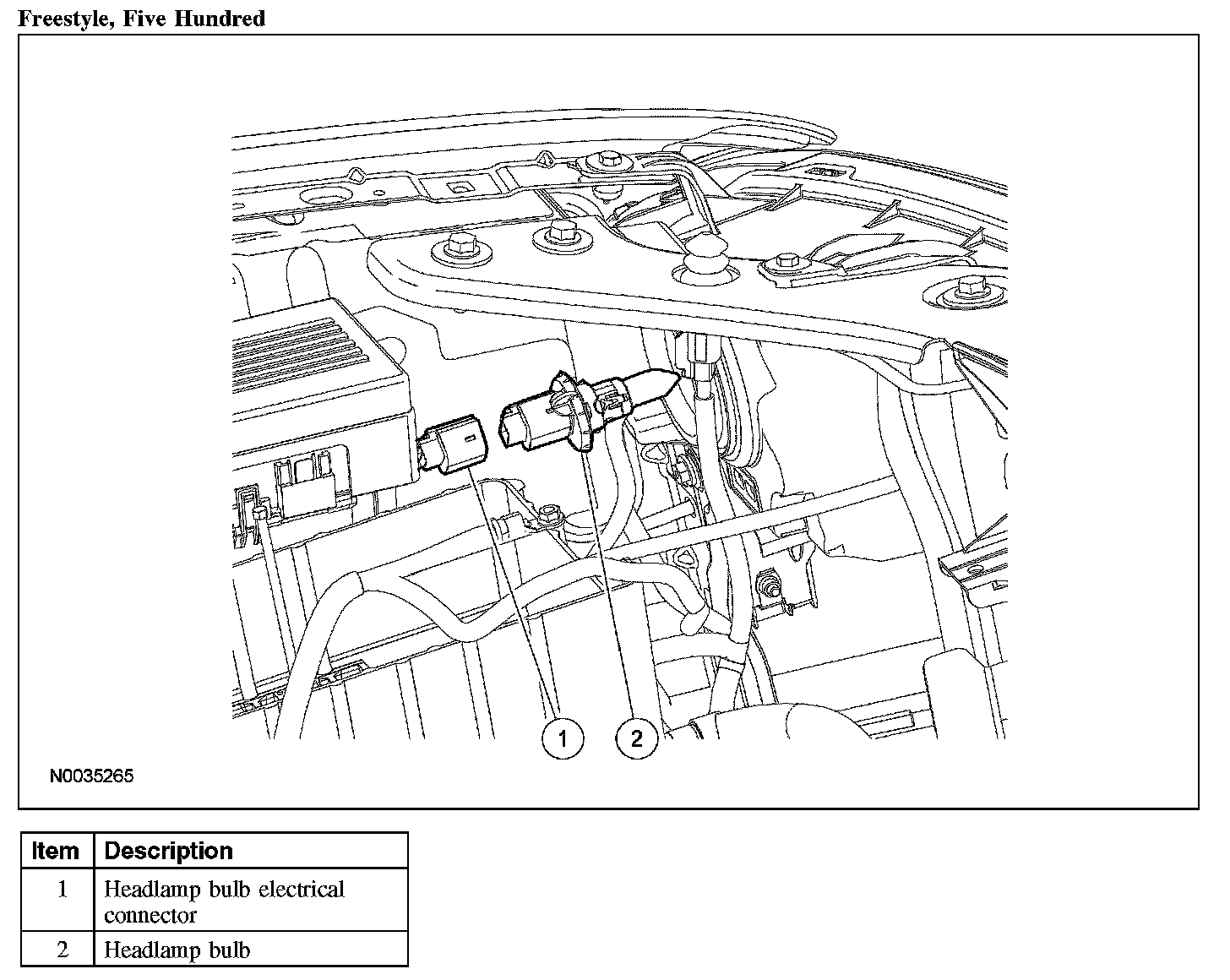

Freestyle, Five Hundred:

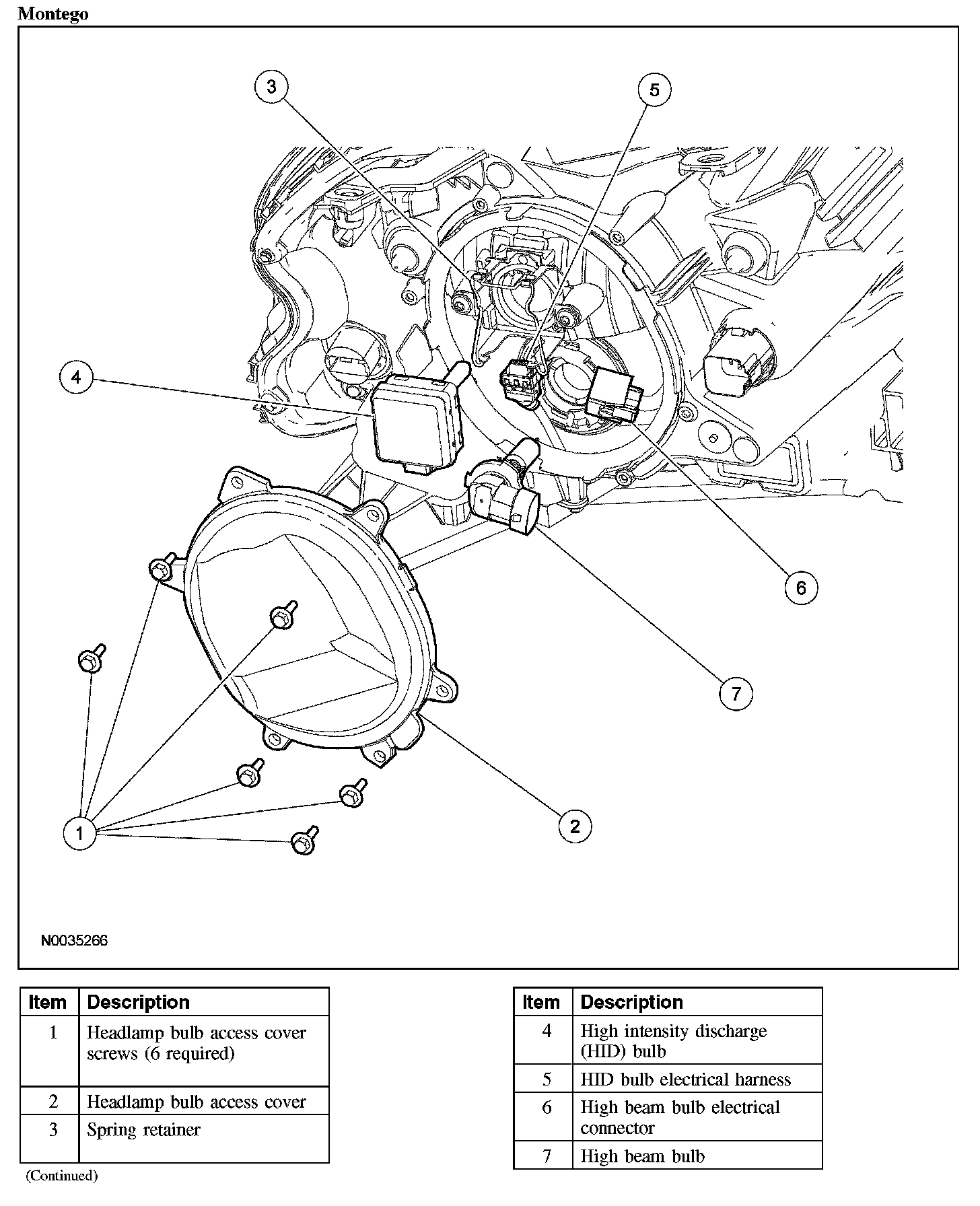

Montego:

Removal and Installation

WARNING: The headlamp bulb contains gas under pressure. The bulb may shatter if the glass envelope is scratched or if the bulb is dropped. Handle the bulb only by its base. Avoid touching the glass envelope. Failure to follow these instructions may result in personal injury.

NOTE:
- The headlamp bulb should not be removed from the headlamp assembly until just before a new bulb is installed. Removing the bulb for an extended period of time may affect headlamp bulb performance. Contaminants may enter the headlamp assembly where they can settle on the lens and reflector. Never turn on the headlamps with the bulb removed from the headlamp assembly.
- Make sure the headlamp switch and ignition switch are in the OFF position.

Freestyle, Five Hundred
1. Rotate the headlamp bulb 1/8-turn counterclockwise and remove the headlamp bulb.
- Disconnect the electrical connector.

Montego
2. Remove the headlamp assembly.
3. Remove the 6 screws and the headlamp bulb access cover.

Montego high beam bulb
4. Rotate the headlamp bulb 1/8-turn counterclockwise and remove the headlamp bulb.
- Disconnect the electrical connector.

Montego HID bulb
5. Release the spring retainer and remove the HID bulb.
- Disconnect the electrical connector.

All vehicles
6. To install, reverse the removal procedure.
