Home >> Mercury >> 2007 >> Montego AWD V6-3.0L VIN 1 >> Repair and Diagnosis >> Lighting and Horns >> Courtesy Lamp >> Diagrams >> Connector Views >> Interior/MAP Lamps Assembly

Interior/MAP Lamps Assembly

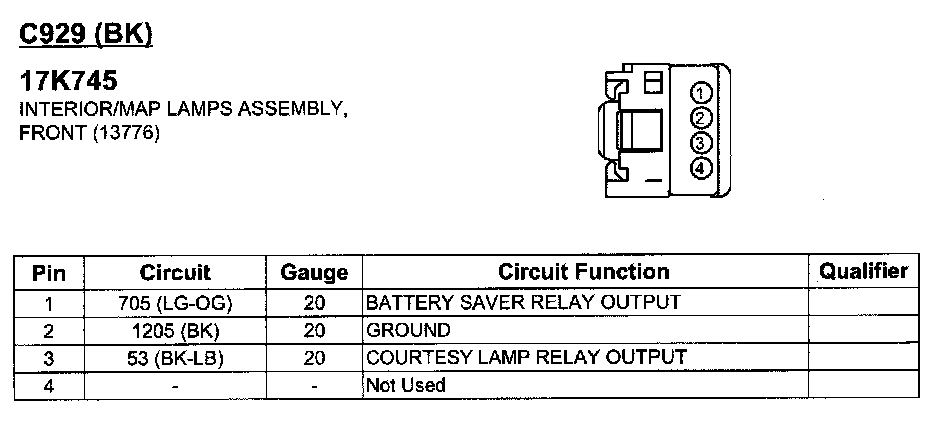

C929:
