Center Mounted Brake Lamp: Service and Repair

HIGH MOUNTED STOPLAMP







Removal and Installation
1. Remove the parcel shelf.

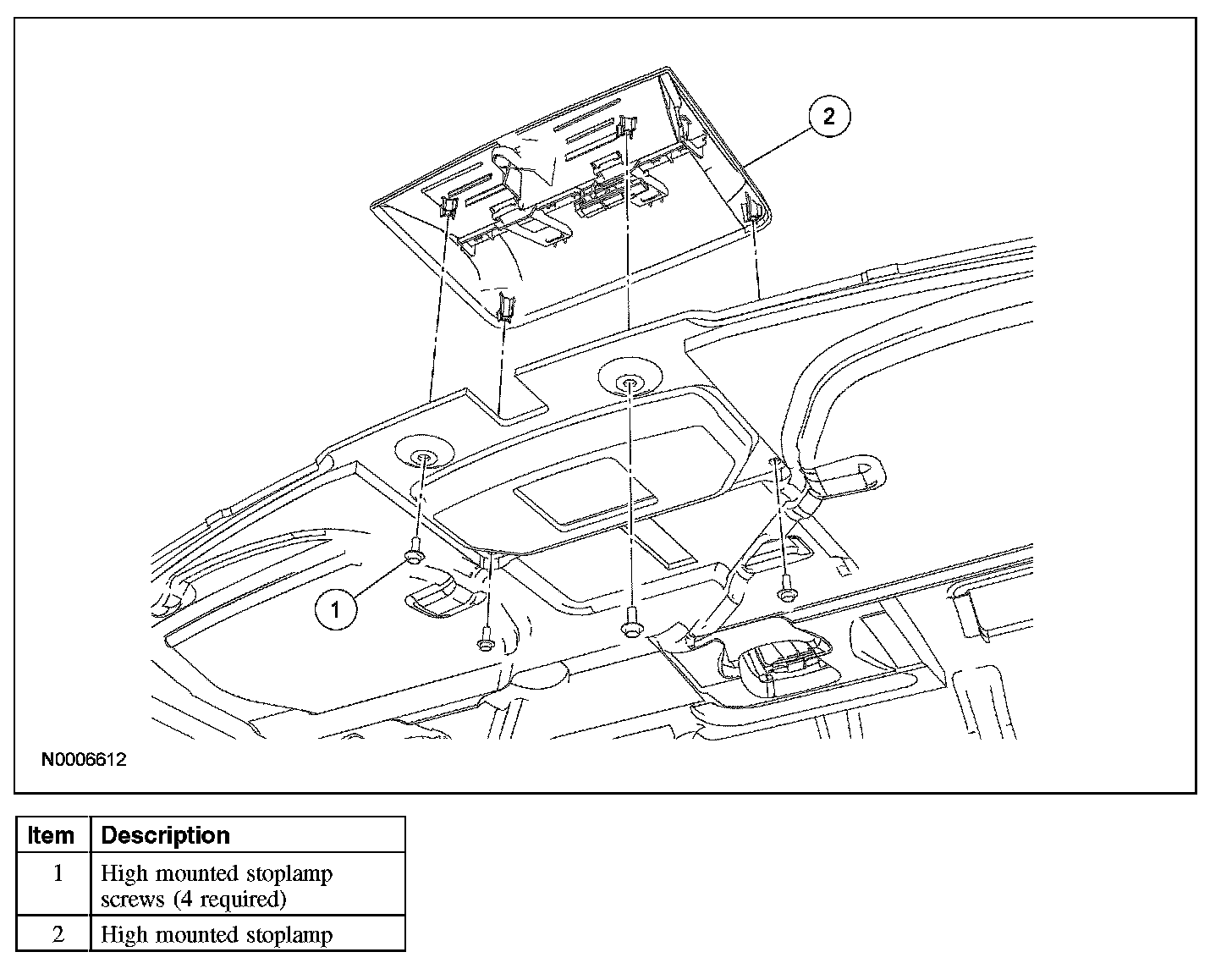

2. Remove the 4 screws and the high mounted stoplamp.
- Disconnect the electrical connector.

3. To install, reverse the removal procedure.
