Reading and Clearing Diagnostic Trouble Codes

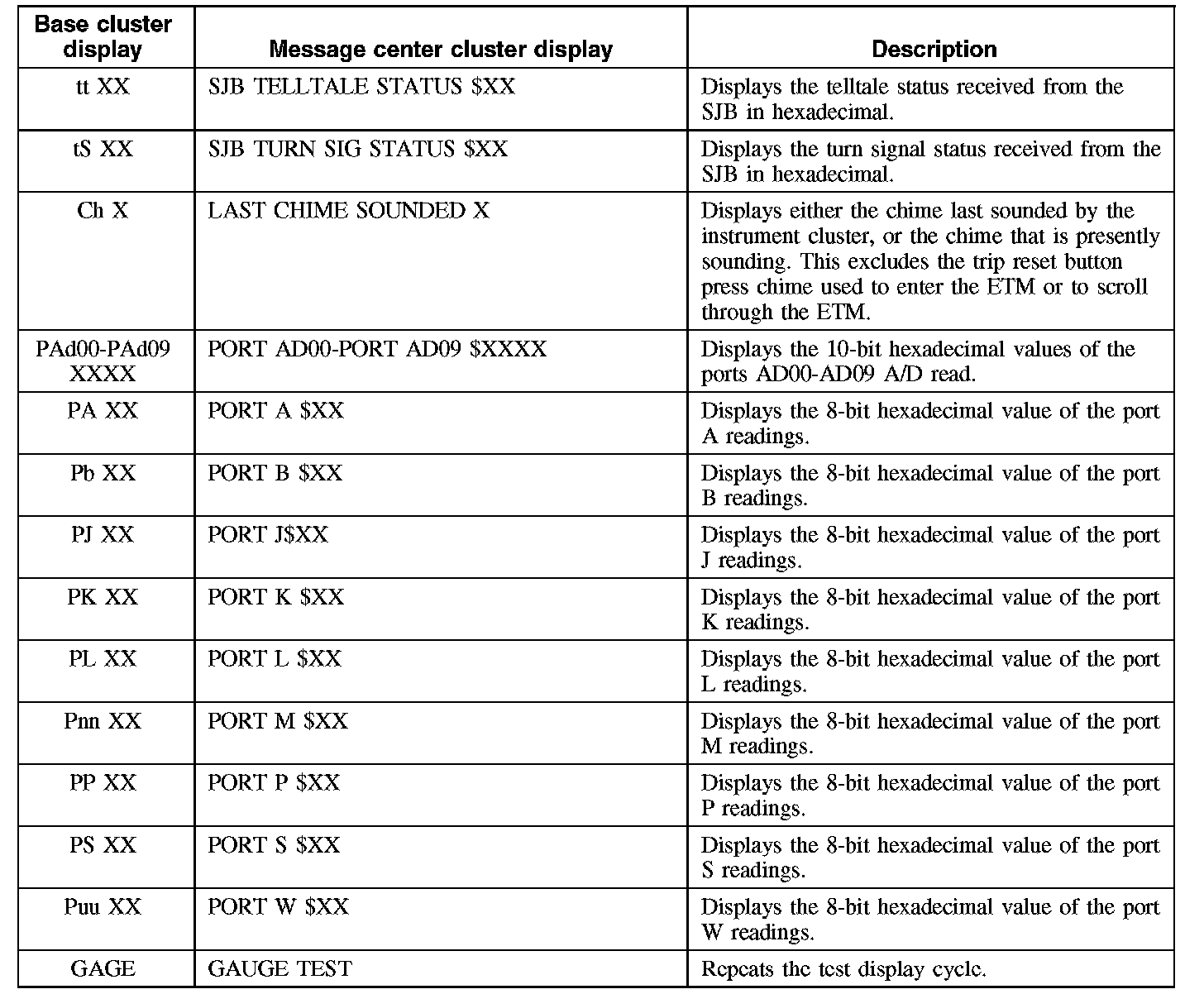

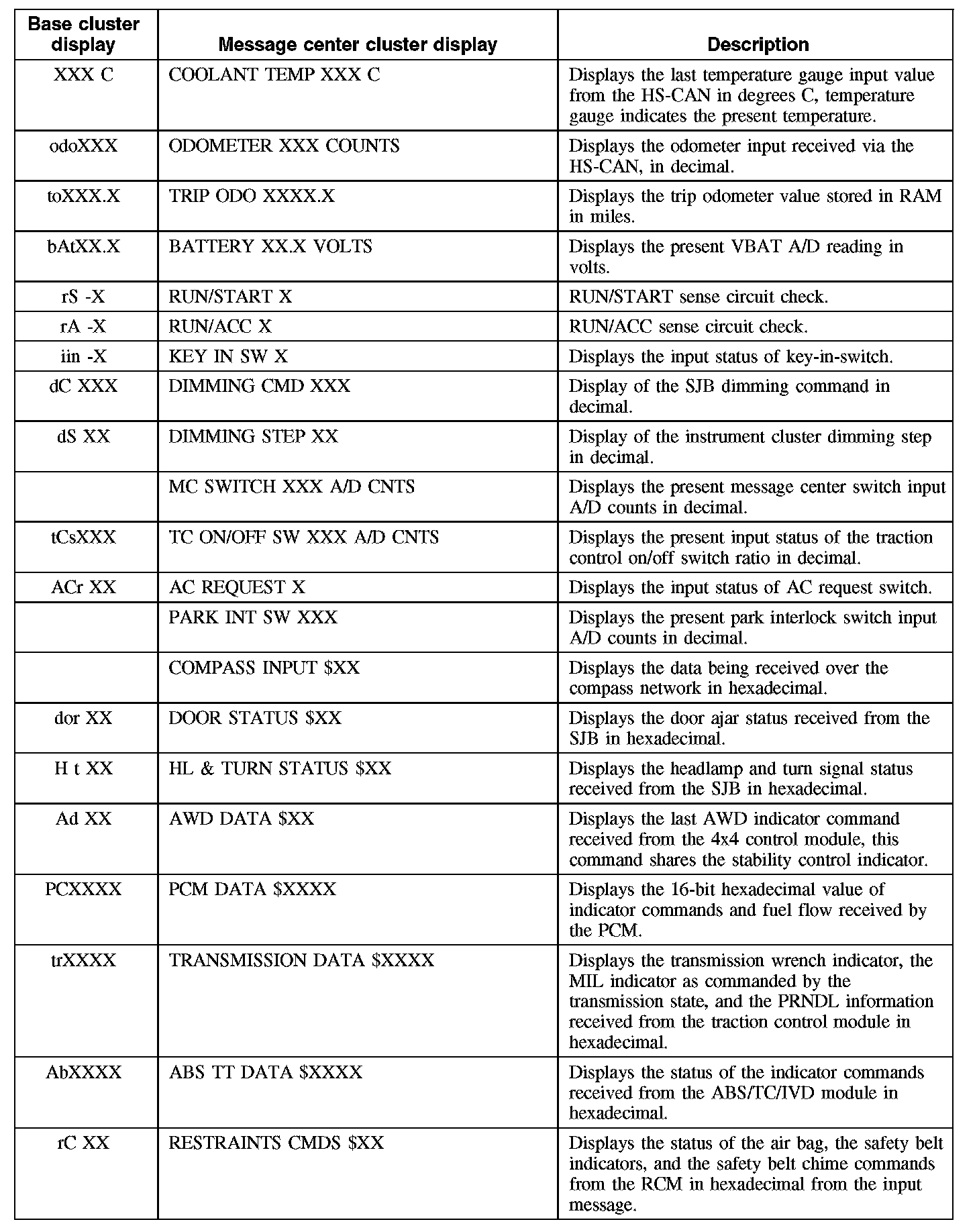

INSTRUMENT CLUSTER SELF-DIAGNOSTIC MODEInstrument Cluster Self-Diagnostic Mode (Part 1):
Instrument Cluster Self-Diagnostic Mode (Part 2):
Instrument Cluster Self-Diagnostic Mode (Part 3):
To enter the instrument cluster self-diagnostic mode with the ignition key in the OFF position, press and hold the odometer/trip reset button. Turn the key to the RUN position and hold until the display indicates TEST, usually within 3 to 5 seconds. Press the RESET button once to advance through each stage of the self-test. To exit the instrument cluster self-test mode, turn the ignition to the OFF position. If no DTCs related to the concern are retrieved, GO to Symptom Chart. Instrument Cluster
