Test S: The Speed Control Indicator Is Never/Always On

PINPOINT TEST S: THE SPEED CONTROL INDICATOR IS NEVER/ALWAYS ON

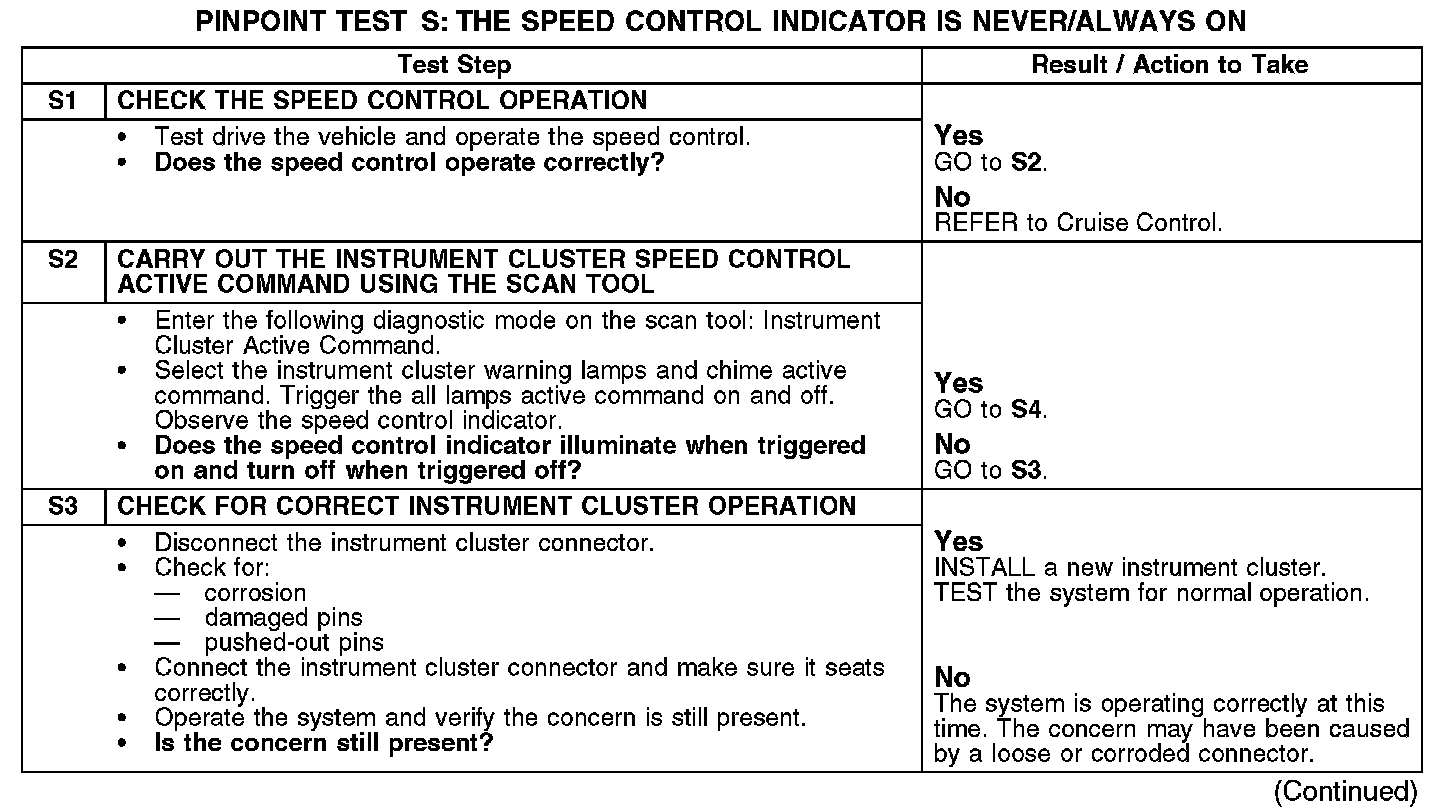

S1-S3:

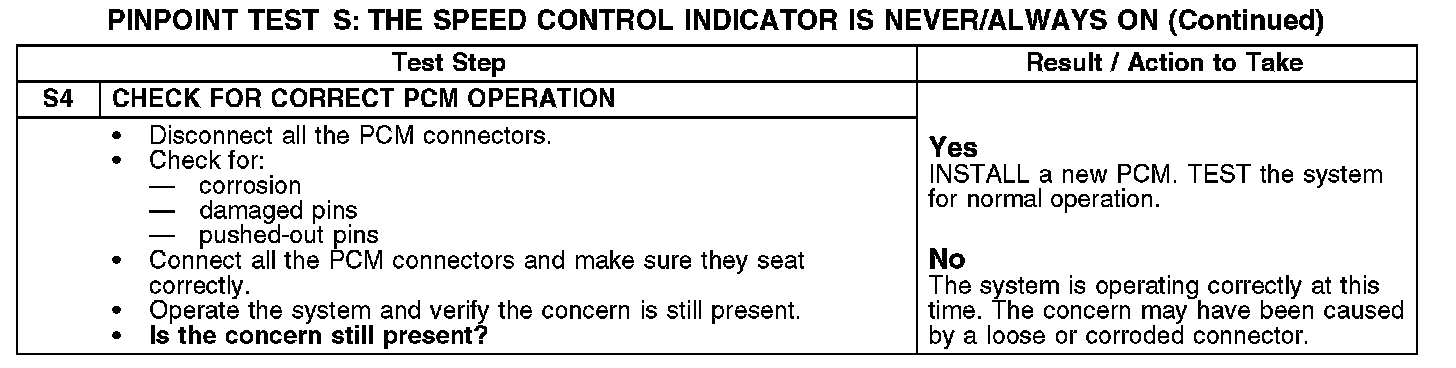

S4:

Normal Operation
The speed control status information is sent to the instrument cluster from the powertrain control module (PCM) over the communication network.

Possible Causes
- PCM
- Instrument cluster
