Test H: The Charging System Warning Indicator Is Never/Always On

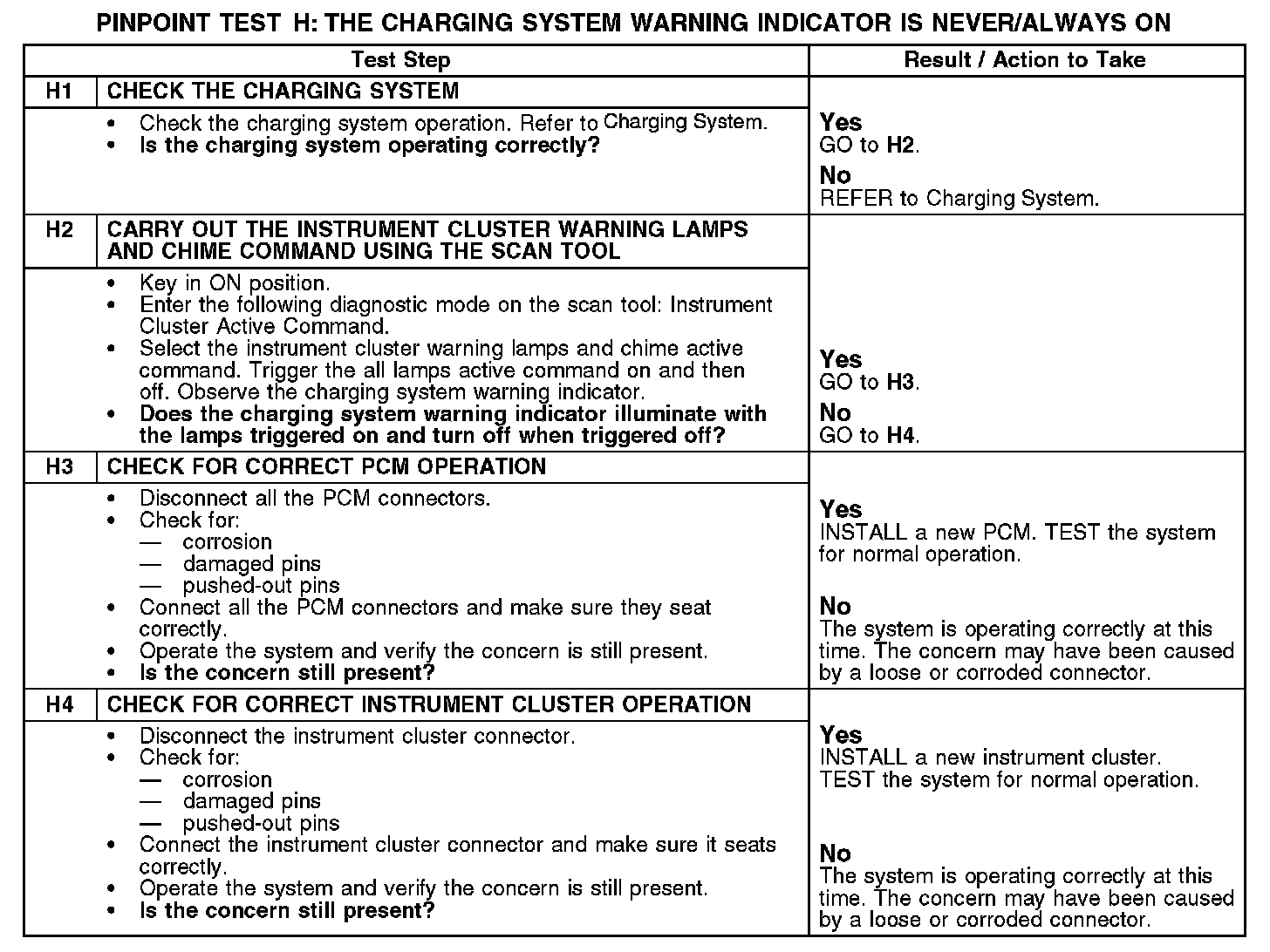

PINPOINT TEST H: THE CHARGING SYSTEM WARNING INDICATOR IS NEVER/ALWAYS ON

H1-H4:

Normal Operation
The charging system warning indicator is controlled by the instrument cluster based upon data received from the powertrain control module (PCM) over the communication network.

Possible Causes
- Charging system
- PCM
- Instrument cluster
