Blower Motor Resistor

BLOWER MOTOR RESISTOR

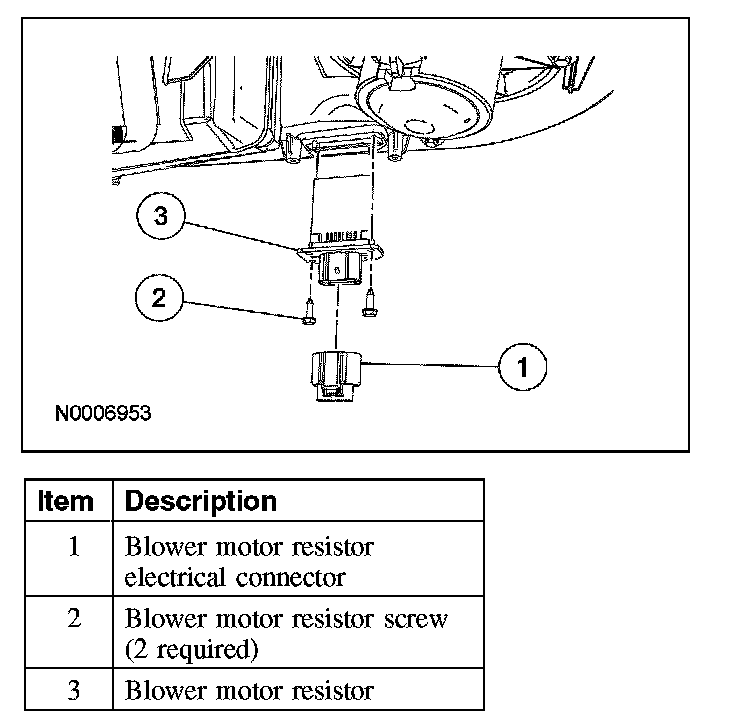

Removal and Installation
1. Remove the RH lower instrument panel insulator.
2. Disconnect the blower motor resistor electrical connector.
3. Remove the 2 blower motor resistor screws.
4. Remove the blower motor resistor.
5. To install, reverse the removal procedure.
