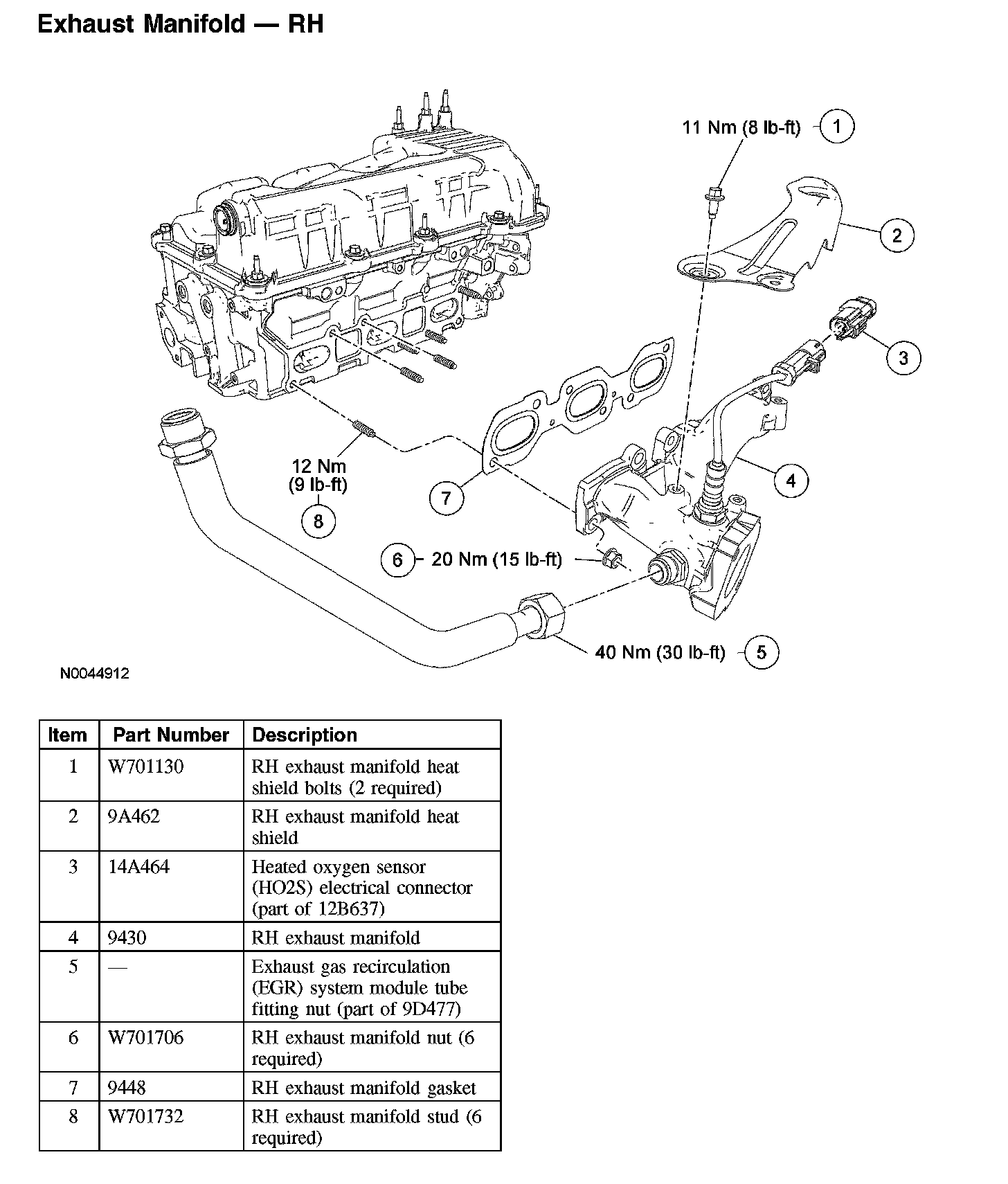

Exhaust Manifold - RH

Exhaust Manifold - RH

Exhaust Manifold - RH:

Removal and Installation
1. With the vehicle in NEUTRAL, position it on a hoist.
2. Remove the RH catalytic converter.
3. Disconnect the heated oxygen sensor (HO2S) electrical connector.
4. Remove the 3 bolts and the RH exhaust manifold heat shield
^ To install, tighten to 11 Nm (8 lb-ft).
5. Disconnect the exhaust gas recirculation (EGR) system module tube from the exhaust manifold.
^ To install, tighten to 40 Nm (30 lb-ft).
6. Remove and discard the 6 RH exhaust manifold nuts.
^ To install, tighten to 20 Nm (15 lb-ft).
7. Remove and discard the 3 studs closest to the rear of the cylinder head.
^ To install, tighten to 12 Nm (9 lb-ft).
8. Remove the RH exhaust manifold and gasket.
^ Discard the exhaust manifold gasket.
9. Remove and discard the 3 remaining studs.
^ To install, tighten to 12 Nm (9 lb-ft).

10. NOTE: Make sure to install a new exhaust manifold gasket, studs and nuts.

To install, reverse the removal procedure.
