Exhaust Manifold - LH

Exhaust Manifold - LH

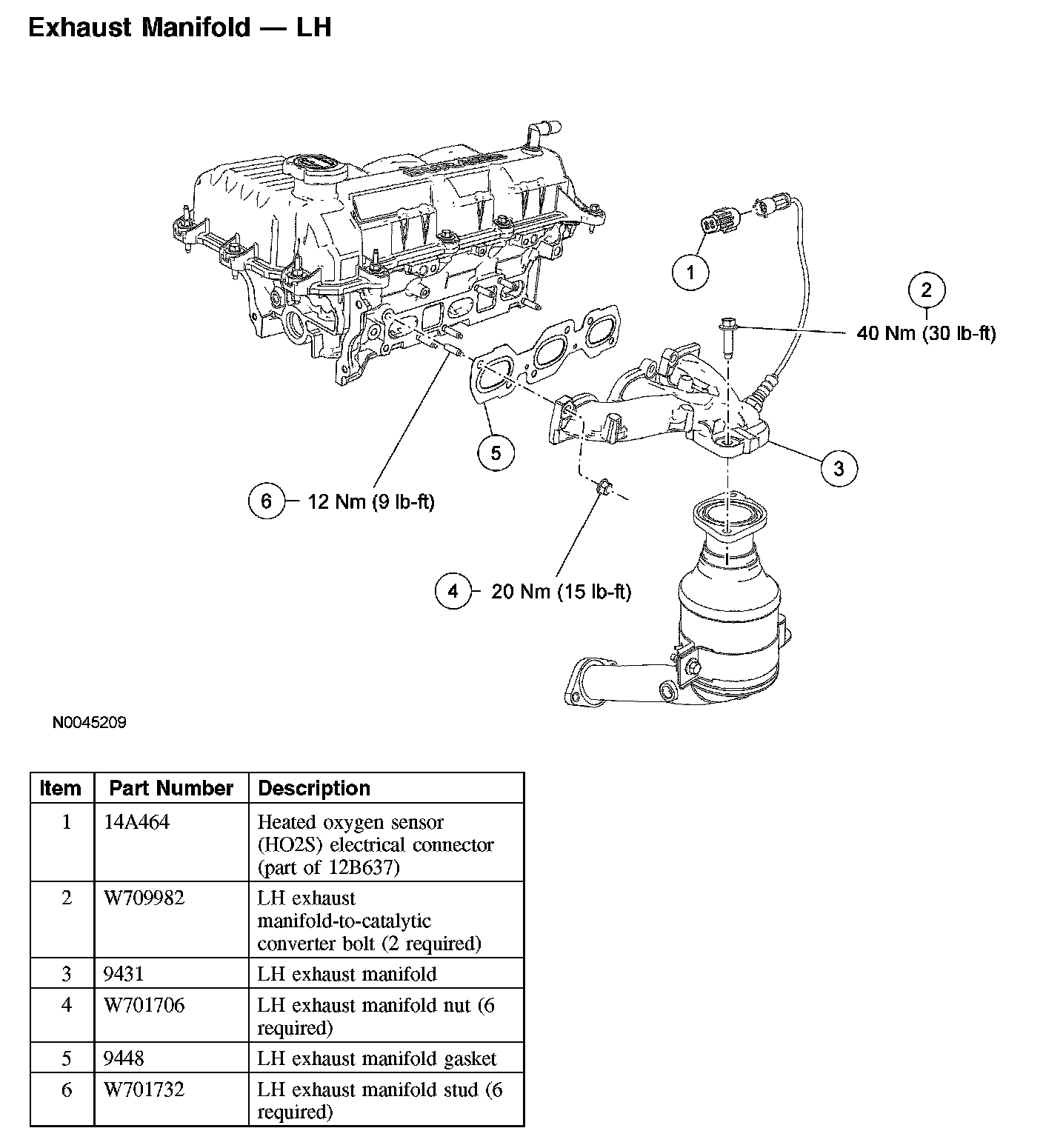

Exhaust Manifold - LH:

Removal and Installation
1. Remove the cooling fans.
2. Disconnect the heated oxygen sensor (HO2S) electrical connector.
3. Remove the 2 exhaust manifold-to-catalytic converter bolts.
^ To install, tighten to 40 Nm (30 lb-ft).
4. Remove and discard the 6 exhaust manifold nuts.
^ To install, tighten to 20 Nm (15 lb-ft).
5. Remove the exhaust manifold.
^ Remove and discard the gasket.
6. Remove and discard the 6 exhaust manifold studs.
^ To install, tighten to 12 Nm (9 lb-ft).

7. NOTE: Make sure to install new studs, nuts and gasket.

To install, reverse the removal procedure.
