Engine Support Insulators - LH

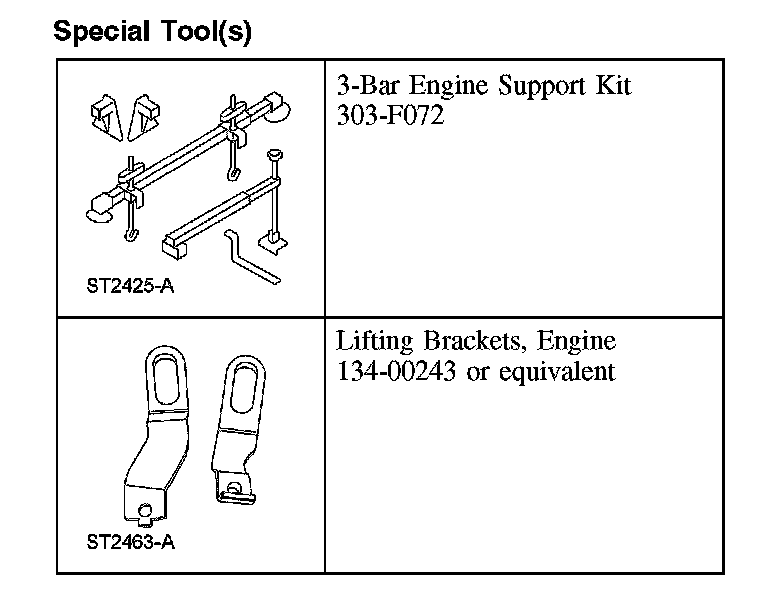

Engine Support Insulators - LHSpecial Tool(s):
Removal and Installation
1. With the vehicle in NEUTRAL, position it on a hoist.

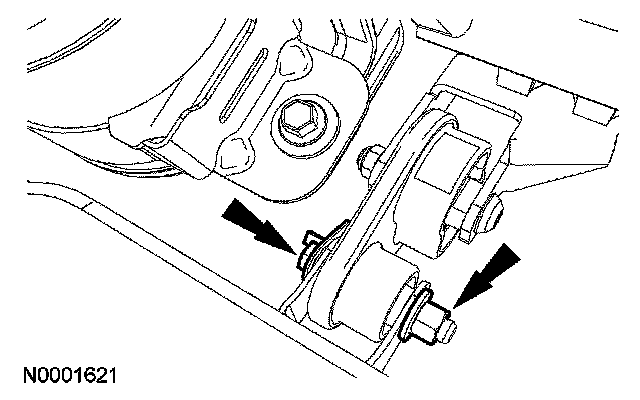

2. Remove and discard the roll restrictor cross brace-to-roll restrictor bolt.
^ To install, tighten to 48 Nm (35 lb-ft).

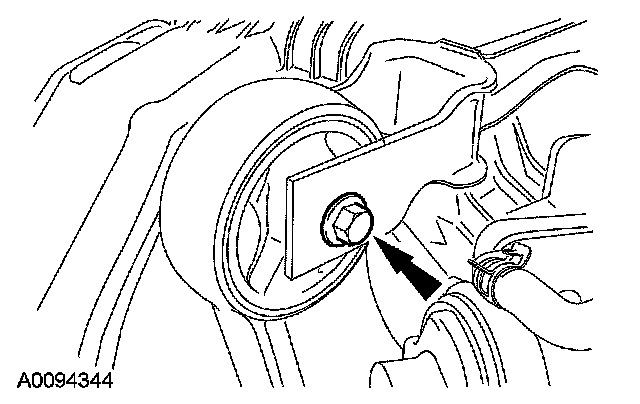

3. Remove the front transaxle stabilizer bolt and nut.
^ To install, tighten to 40 Nm (30 lb-ft).

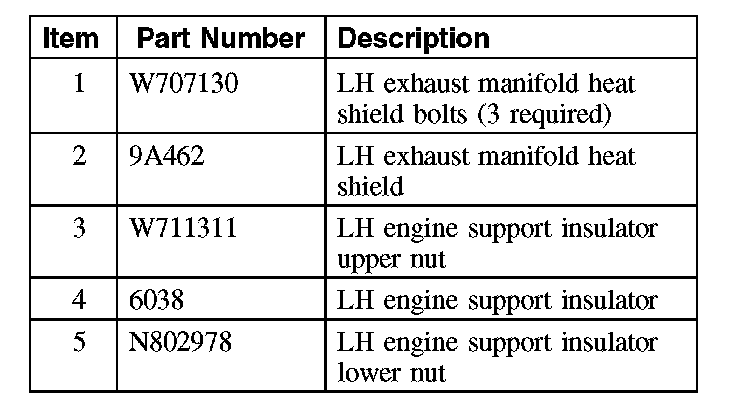

4. If equipped, remove the 3 bolts and the LH exhaust manifold heat shield.
^ To install, tighten to 11 Nm (8 lb-ft).

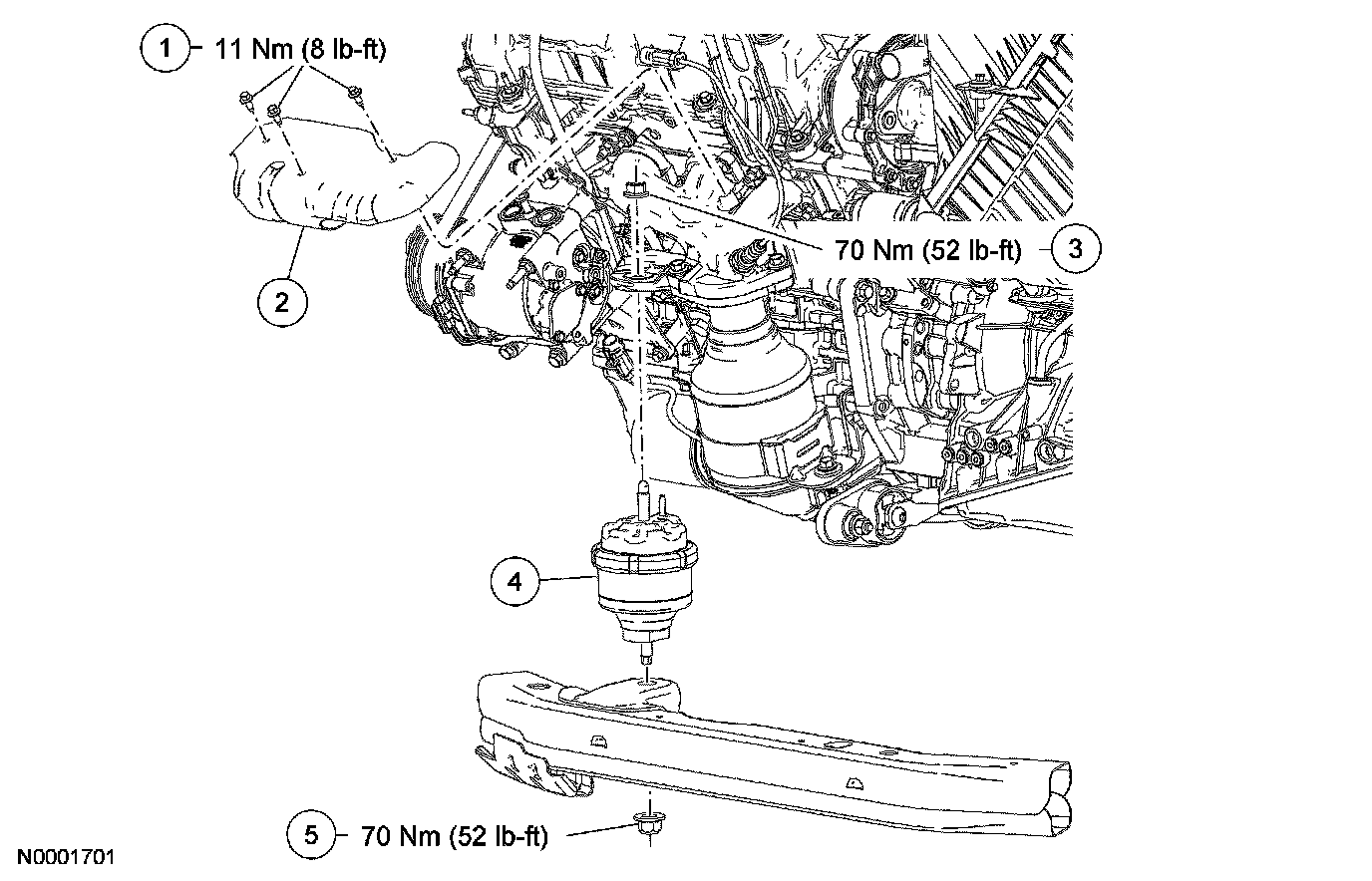

5. Remove the engine support insulator lower nut.
^ To install, tighten to 70 Nm (52 lb-ft).
6. Remove the engine support insulator upper nut.
^ To install, tighten to 70 Nm (52 lb-ft).

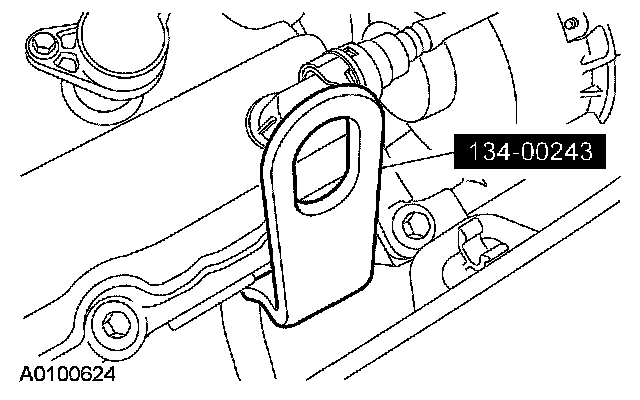

7. Mount the special tool to the LH cylinder head.

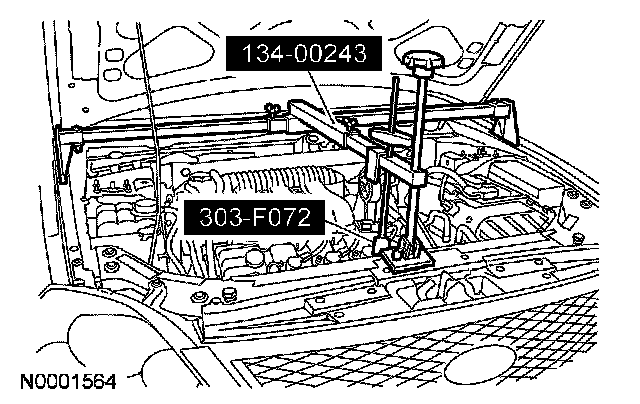

8. Using the special tools, raise the engine to gain the clearance necessary to remove the insulator.
9. CAUTION: Make sure that the engine support insulator locator pins are aligned correctly with the bracket.
To install, reverse the removal procedure.
