Test A: Loss of Coolant

Test A: Loss of Coolant

Possible causes
^ Radiator
^ Thermostat housing assembly
^ Throttle body adapter heating
^ Coolant pump seal
^ Radiator hoses
^ Heater hoses
^ Heater core
^ Engine gaskets
^ Degas bottle

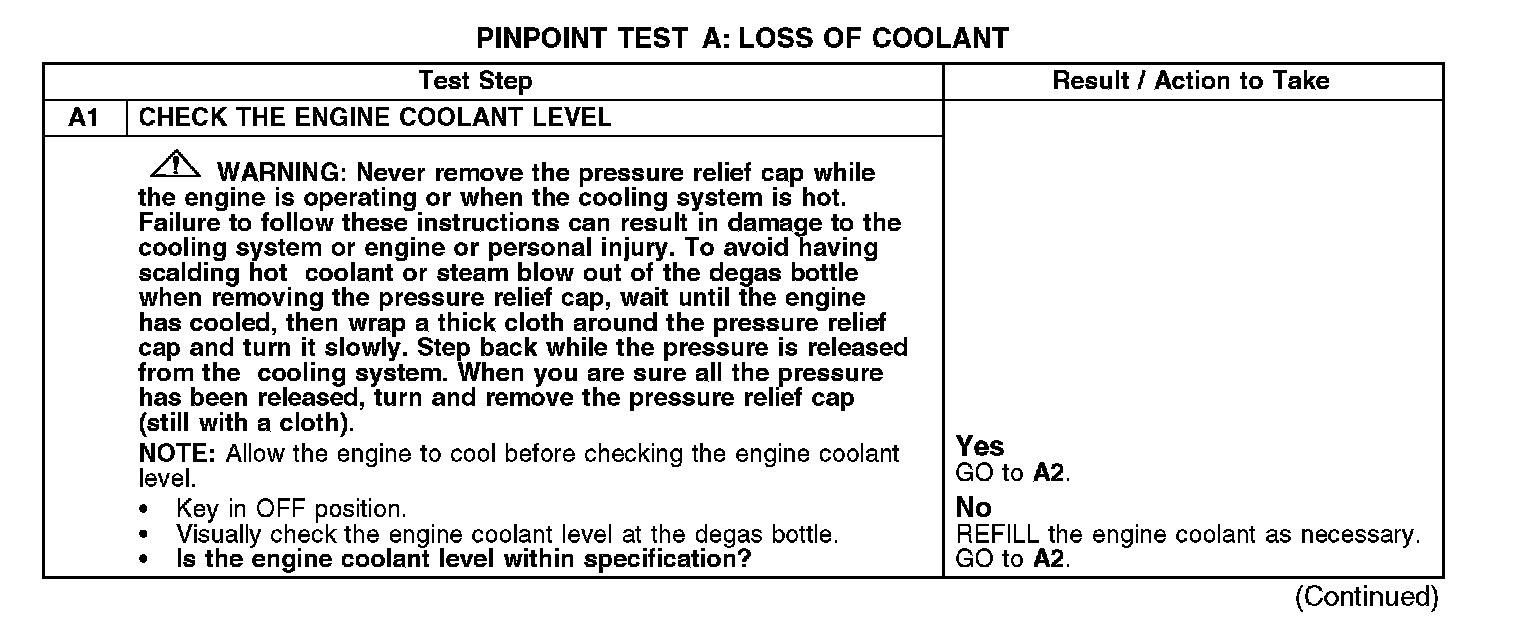

A1:

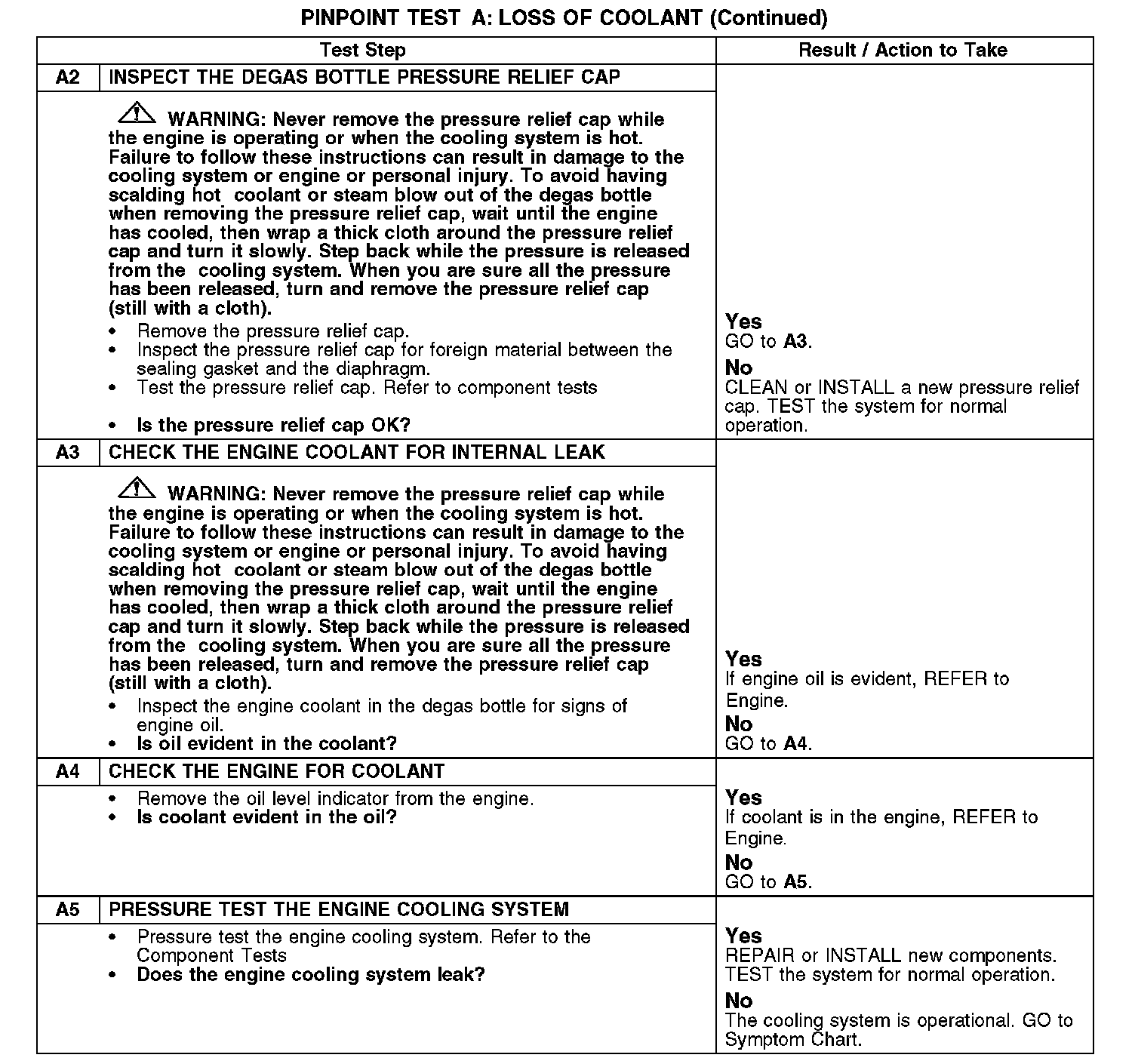

A2-A5:
