Home >> Mercury >> 2007 >> Montego AWD V6-3.0L VIN 1 >> Repair and Diagnosis >> Diagrams >> Connector Views >> C2003-C3104 >> C2003

C2003

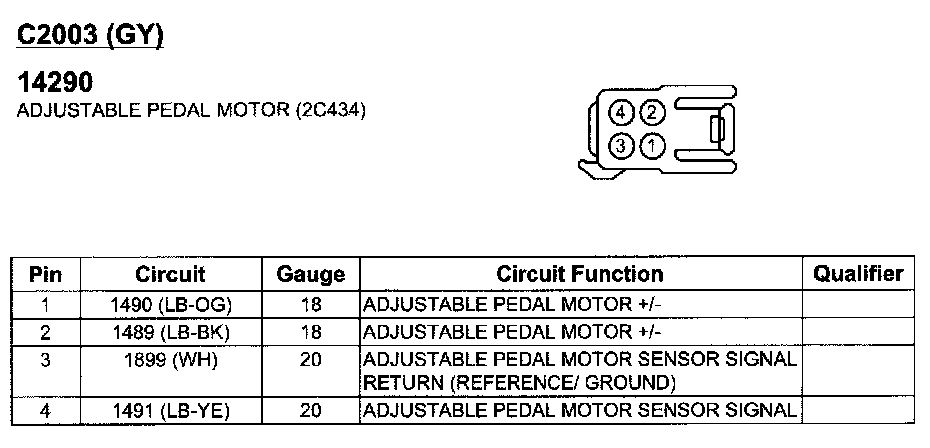

C2003:



C2159:
