Parking Brake Cable - Intermediate

Parking Brake Cable - Intermediate

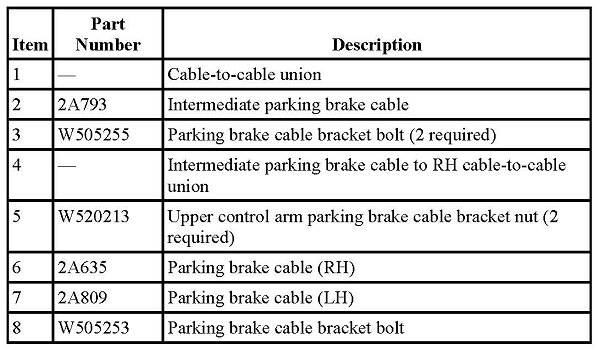

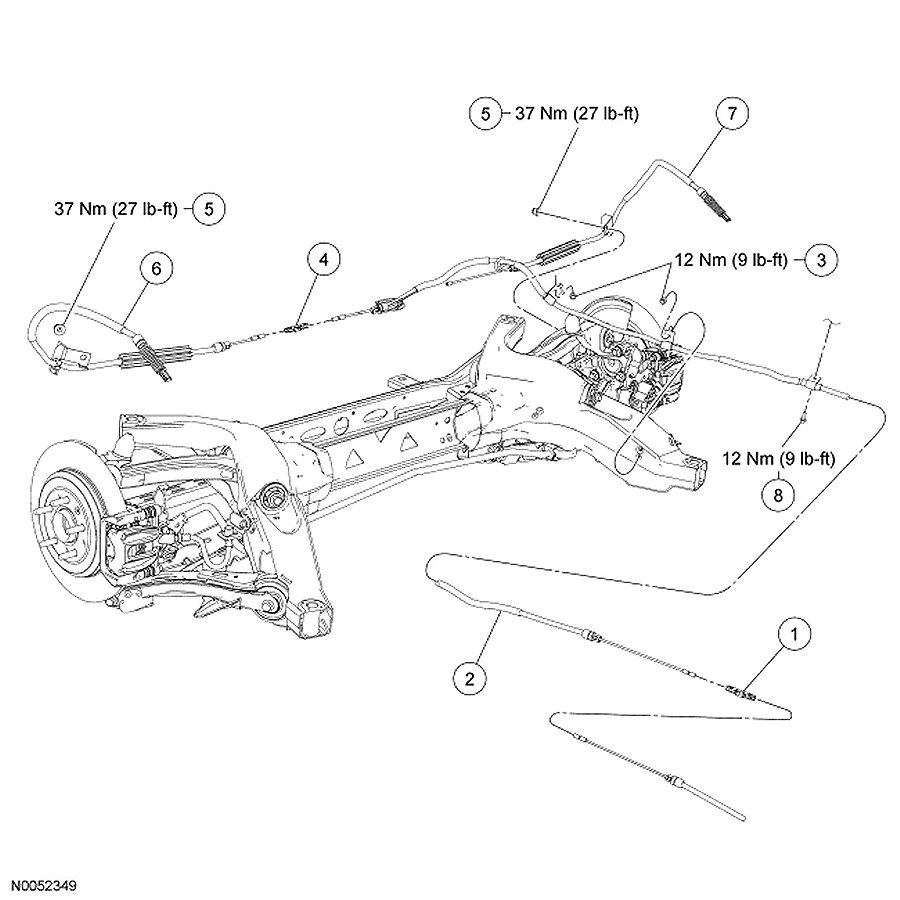

Removal and Installation









1. Relieve the parking brake cable tension.
2. Remove the 3 parking brake cable bracket bolts from the subframe.
^ To install, tighten to 12 Nm (9 lb-ft).
3. Disconnect the intermediate cable from the front cable at the cable-to-cable union.
4. Release the intermediate cable from the body bracket.
5. Release the intermediate cable from the rear RH cable at the cable-to-cable union.
6. Release the LH rear cable from the intermediate cable at the conduit equalizer.
7. To install, reverse the removal procedure.
^ Inspect the parking brake system for correct operation.
