Roof Opening Panel Shield

ROOF OPENING PANEL SHIELD

Part 1:

Part 2:

Exploded View

Removal and Installation
1. Remove the roof opening panel glass.
2. With glass removed, place roof opening panel into the CLOSED position.







3. NOTE: The 4 roof opening panel shield slides come as an assembly with the roof opening panel shield.

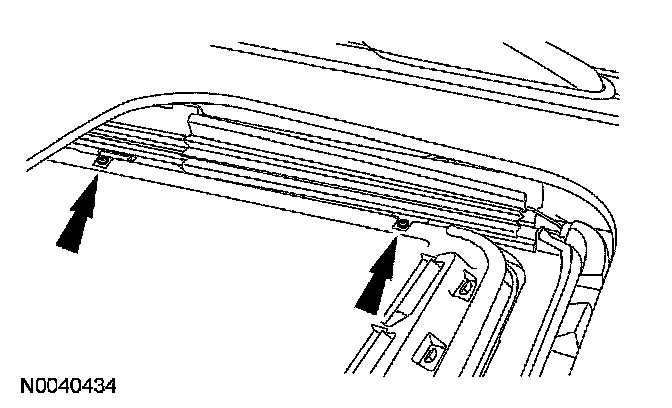

With roof opening panel shield in full forward position, remove the 4 Torx(R) screws.
- Remove the 2 front screws first to allow shield to slide further forward in track to expose 2 rear screws.

4. Lift the roof opening panel shield upward through roof opening.
5. To install, reverse the removal procedure.
