Test B: A Single Mirror Is Inoperative

PINPOINT TEST B: A SINGLE MIRROR IS INOPERATIVE

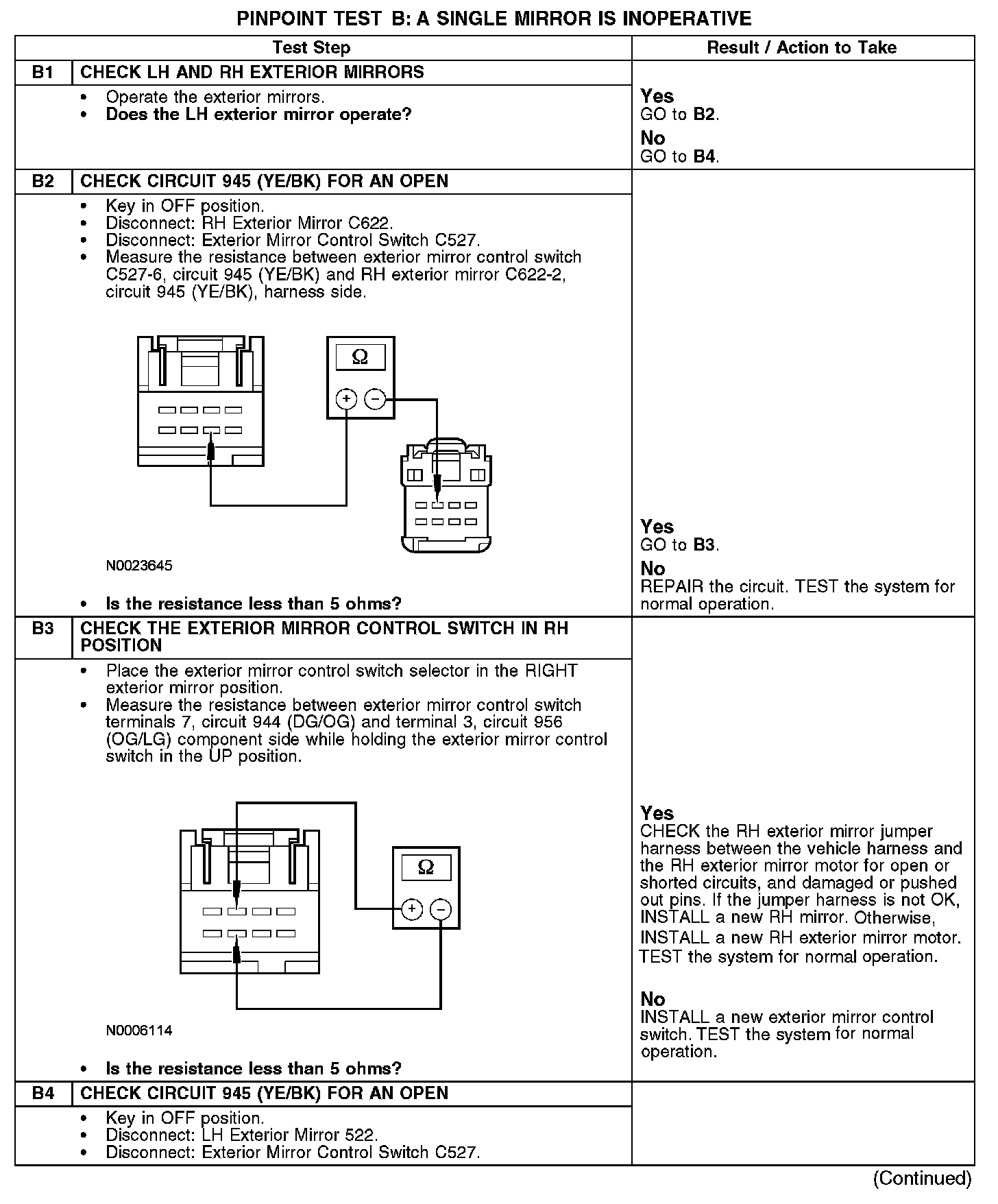

B1-B4:

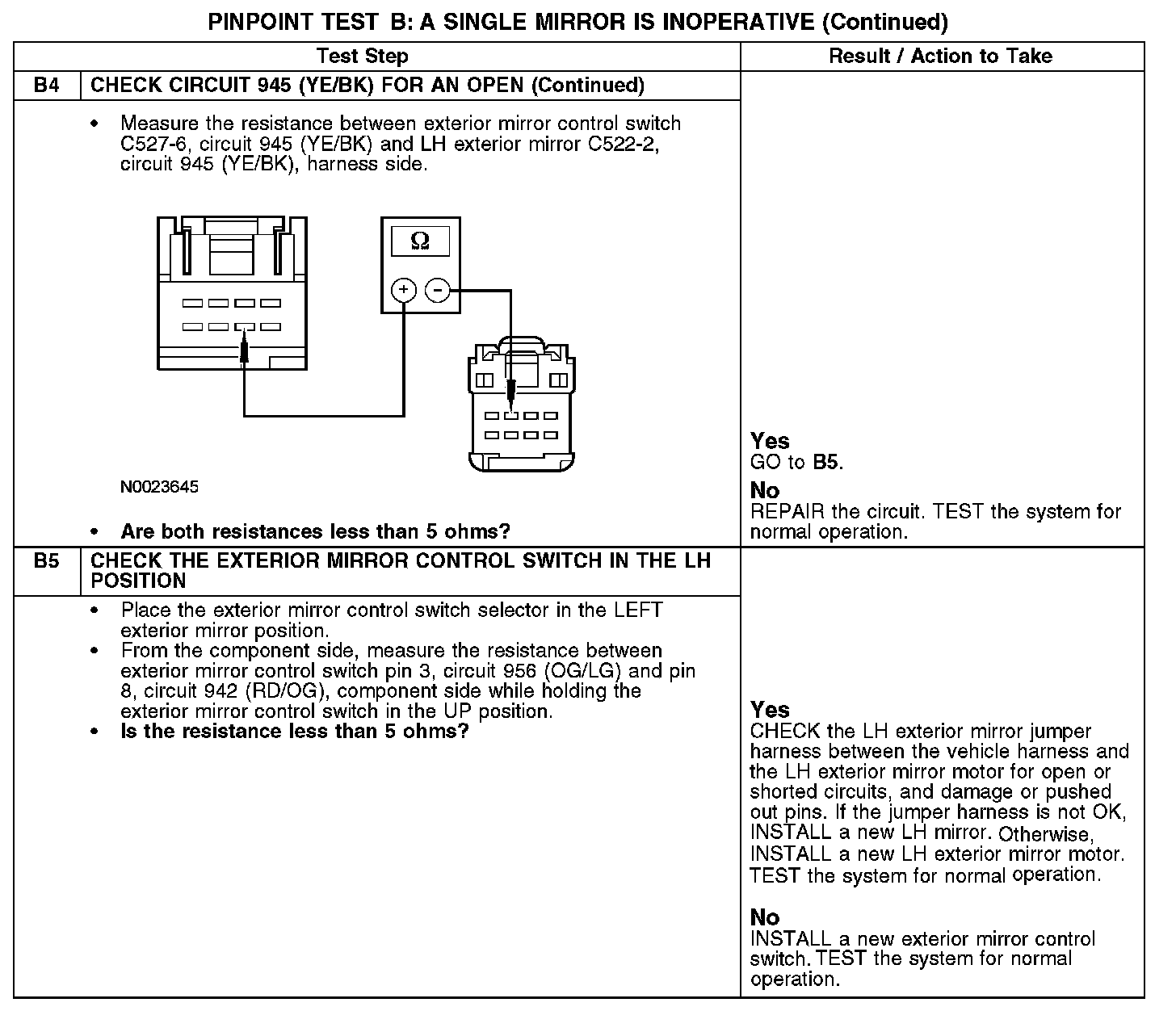

B4-B5:

Normal Operation
Under normal operation, the exterior mirror control switch uses circuit 945 (YE/BK) as the common circuit for both exterior mirror UP/DOWN and RIGHT/LEFT movement.

Possible Causes
- Open in circuit 945 (YE/BK)
- Inoperative exterior mirror control switch
- Inoperative exterior mirror motor
