Test K: Panic Feature Is Inoperative or Does Not Operate Correctly

PINPOINT TEST K: PANIC FEATURE IS INOPERATIVE OR DOES NOT OPERATE CORRECTLY

K1-K7:

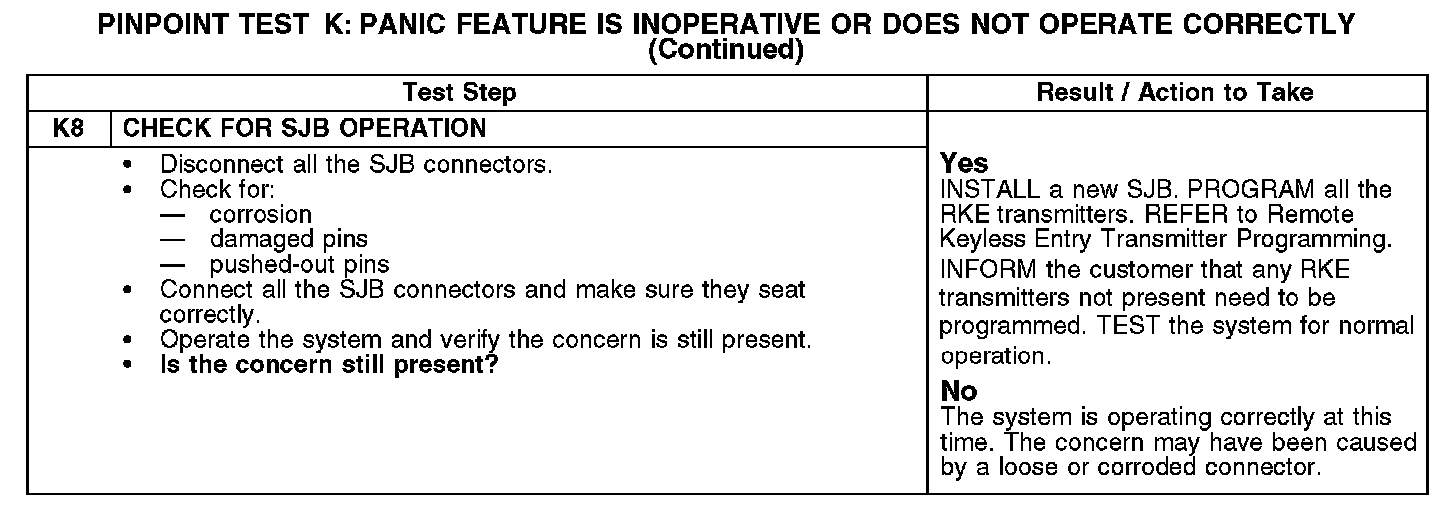

K8:

Normal Operation
When the smart junction box (SJB) receives a command indicating an activation of the panic alarm, the SJB energizes the horn and turn signal lamps as a visual and audible alarm.

Possible Causes
- Remote keyless entry (RKE) transmitter
- SJB
