Console - Rear, Floor

CONSOLE-REAR, FLOOR







Removal and Installation

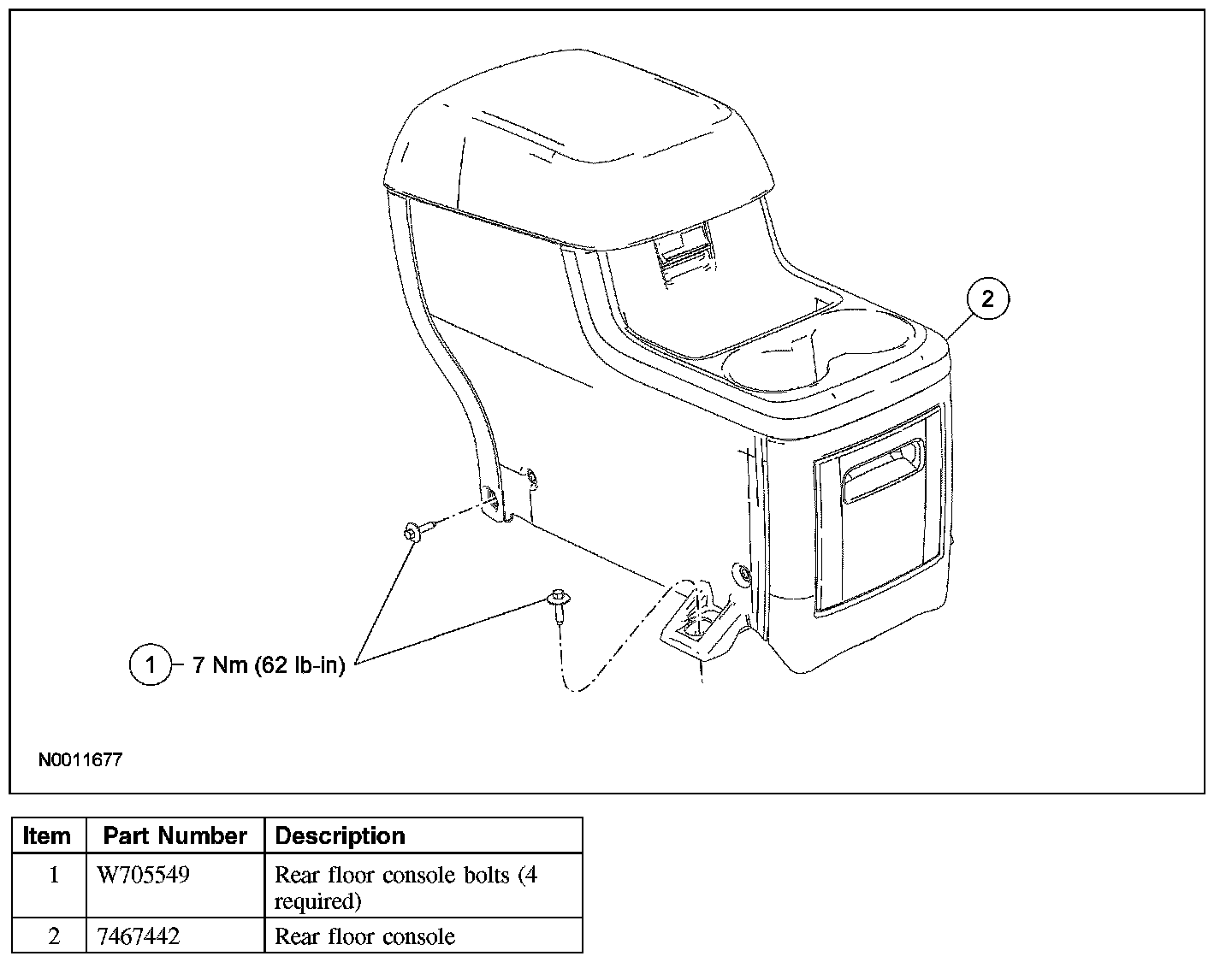

1. Remove the 4 rear floor console bolts.
- To install, tighten to 7 Nm (62 lb-in).

2. Remove the rear floor console.
3. To install, reverse the removal procedure.
