Rear Door Panel: Service and Repair

DOOR TRIM PANEL-REAR

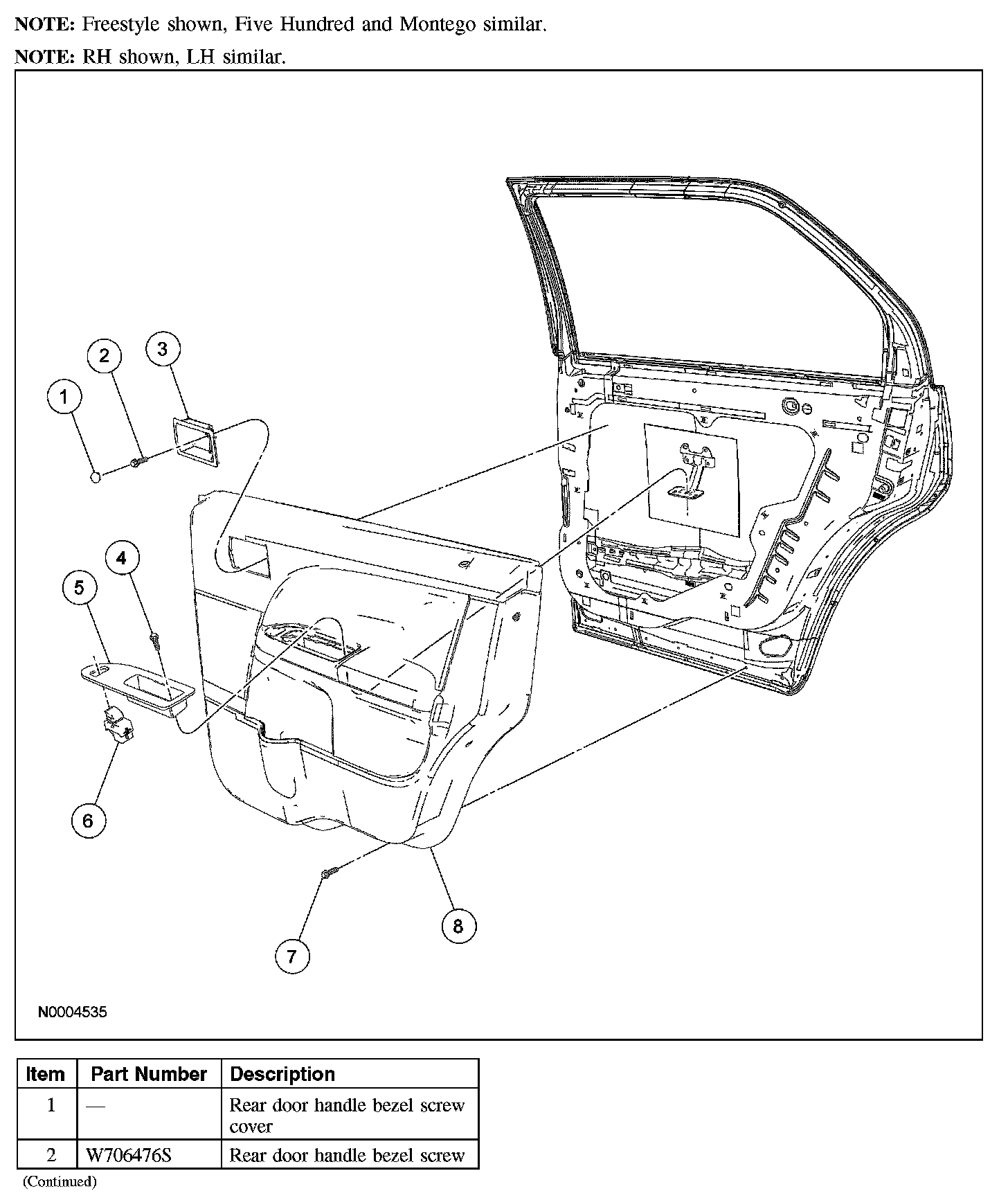

Part 1:

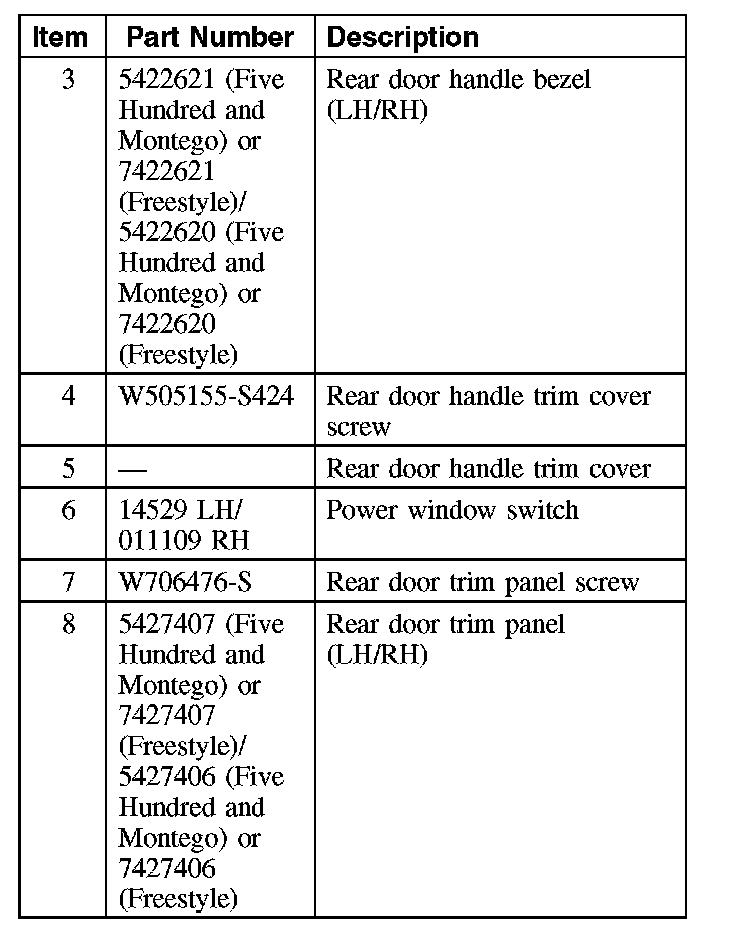

Part 2:

Removal and Installation
1. Remove the rear door handle bezel screw cover.
2. Remove the rear door handle bezel screw.
3. Remove the rear door handle bezel.
4. Remove the rear door handle trim cover screw.
5. Remove the 6 rear door trim panel screws.

6. CAUTION: Avoid pulling directly on the upper rear corner (vinyl portion) of the door trim panel during removal to prevent damage to the door trim panel.

Position the rear door trim panel by pulling straight away from the rear door to release the retaining clips.

7. Disconnect the power window switch.
8. Remove the rear door trim panel.
9. To install, reverse the removal procedure.
