Front Bumper Cover / Fascia: Service and Repair

BUMPER COVER-FRONT,FIVE HUNDRED, MONTEGO

Five Hundred,montego:

Exploded View

Removal and Installation
1. Remove the 2 front bumper cover scrivets.
2. Remove the 2 front bumper cover bolts.
- To install, tighten to 7 Nm (62 lb-in).

3. Remove the 3 front bumper cover lower retainers.
4. Remove the 6 front bumper cover wheel house screws.
- To install, tighten to 2 Nm (18 lb-in).

5. If equipped, disconnect the fog lamps electrical connector.

6. NOTE: The rearward upper portion of the bumper cover must be pulled outward to unclip it from the fender.

Remove the front bumper cover.

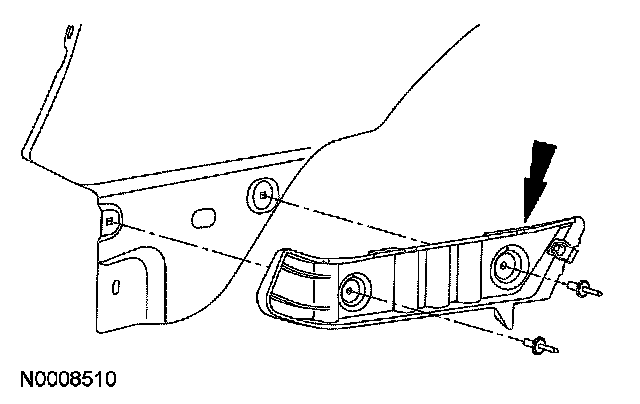

7. Inspect the bumper cover mounting reinforcements for damage. If necessary, install new bumper cover mounting reinforcements.
8. To install, reverse the removal procedure.
