Test M: DTC B2924 - Audio Button Stuck

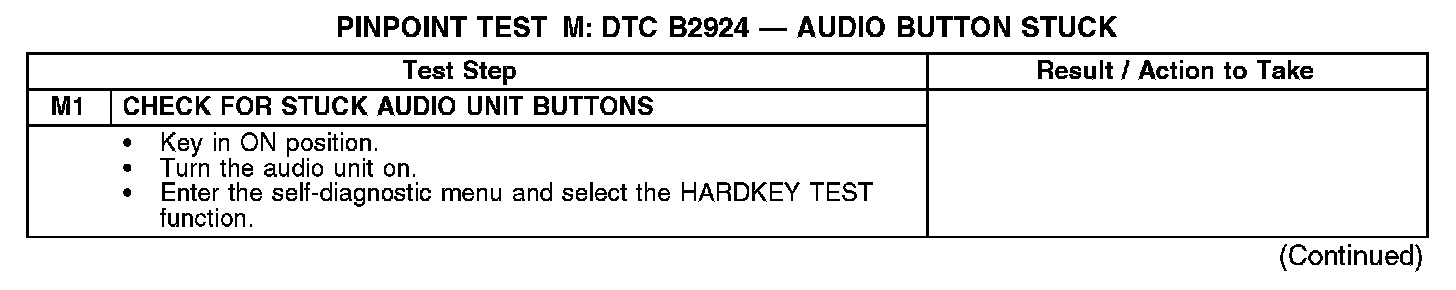

PINPOINT TEST M: DTC B2924 - AUDIO BUTTON STUCK

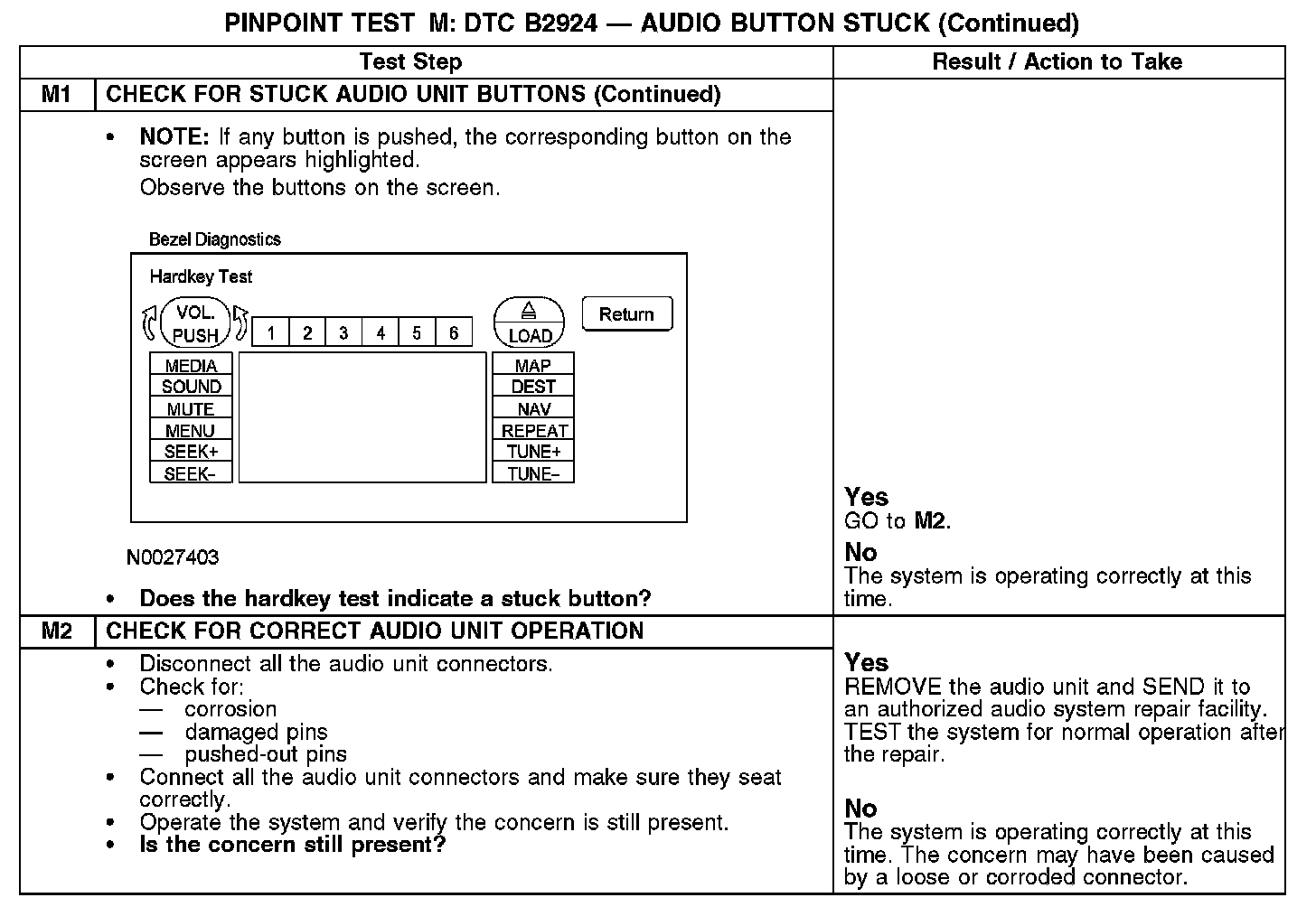

M1:

M1-M2:

Normal Operation
The navigation unit internally monitors the buttons and stores diagnostic trouble code (DTC) B2924 if a button is pushed or stuck during the self-diagnostic test.

Possible Causes
- Audio unit
