Global Positioning System Antenna: Service and Repair

GLOBAL POSITIONING SYSTEM (GPS) ANTENNA







Removal and Installation
1. Remove the audio unit.
2. Open and lower the glove compartment door.

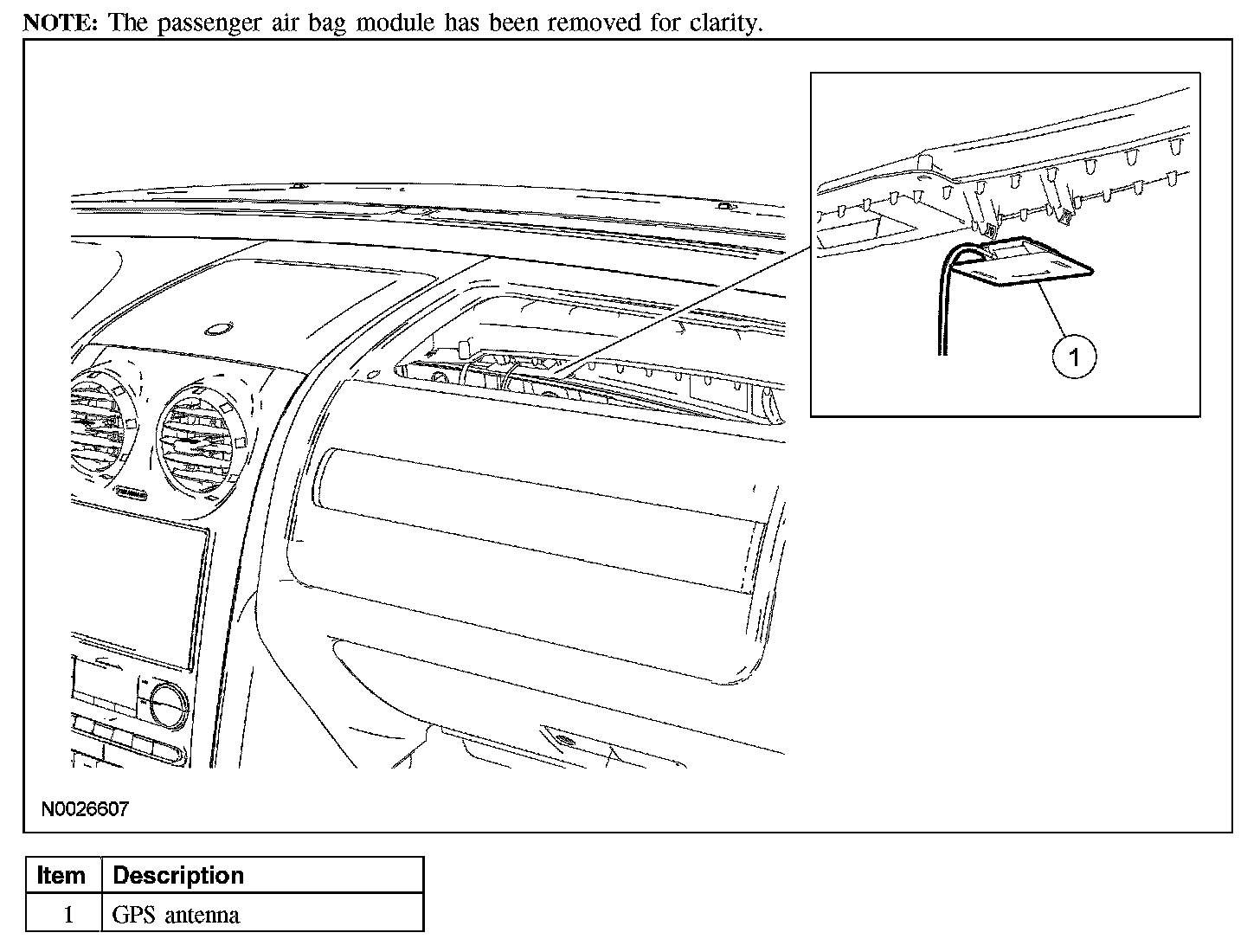

3. Release the 2 clips and remove the GPS antenna.
4. To install, reverse the removal procedure.
