Test A: The Parking Aid Is Inoperative/Does Not Operate Correctly

PINPOINT TEST A: THE PARKING AID IS INOPERATIVE/DOES NOT OPERATE CORRECTLY

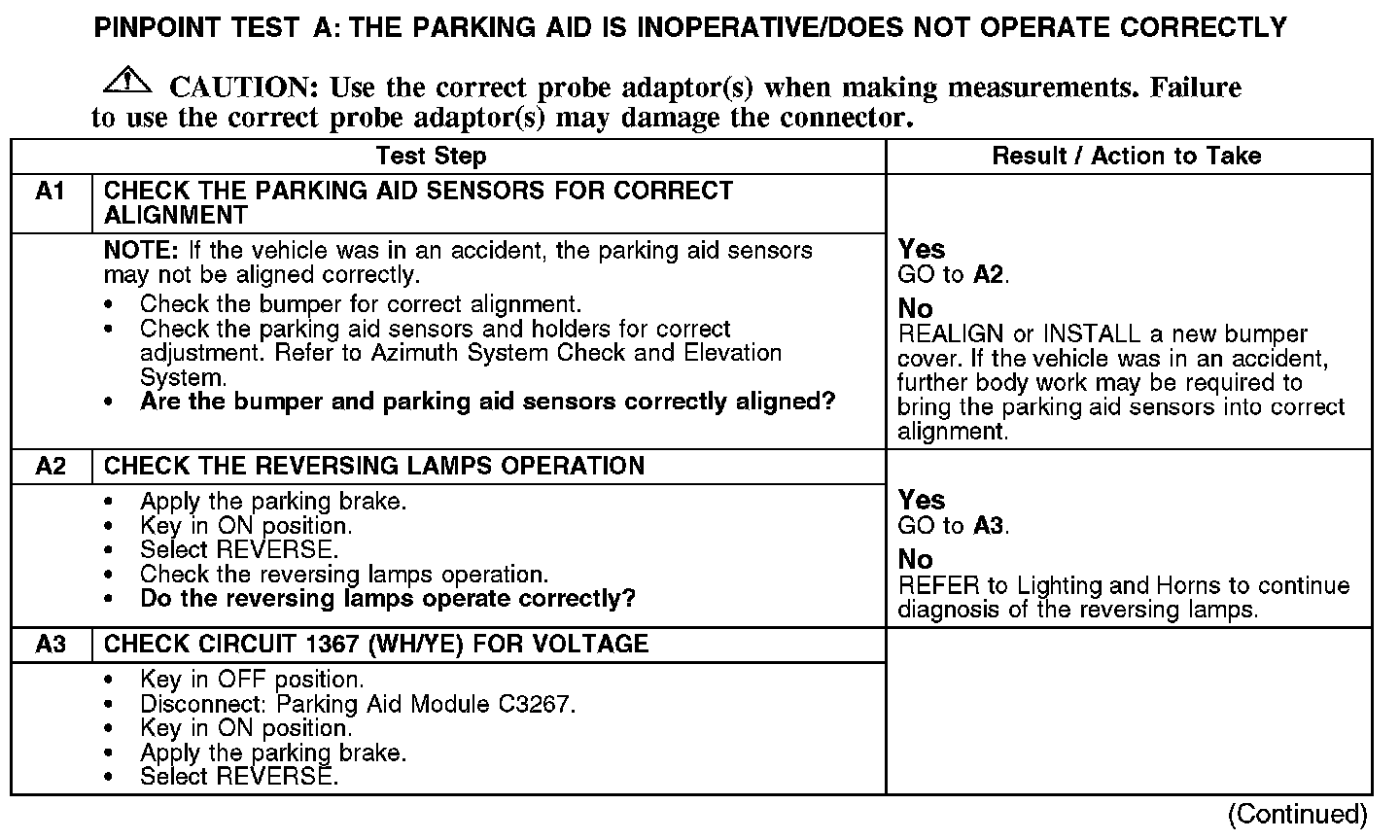

A1-A3:

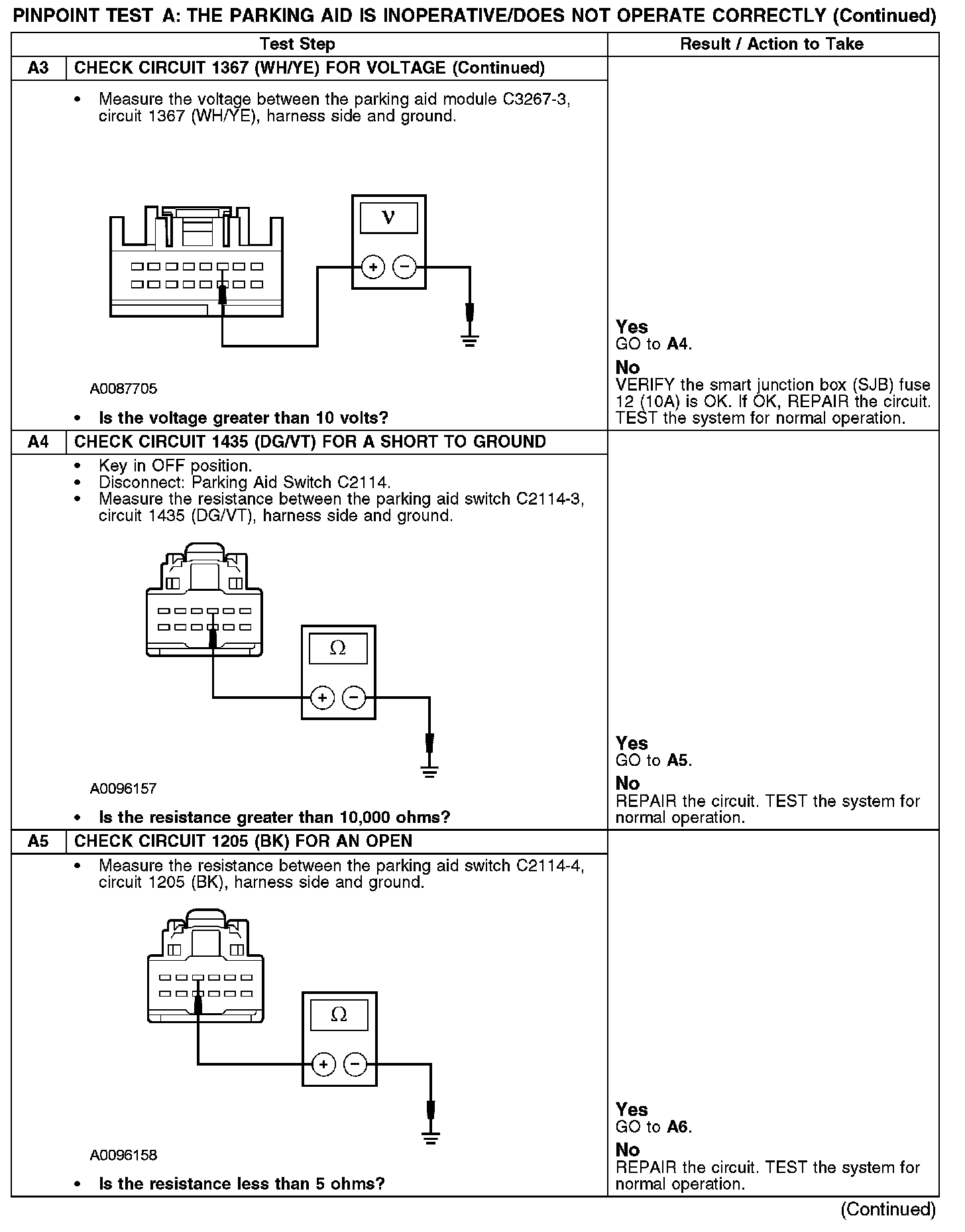

A3-A5:

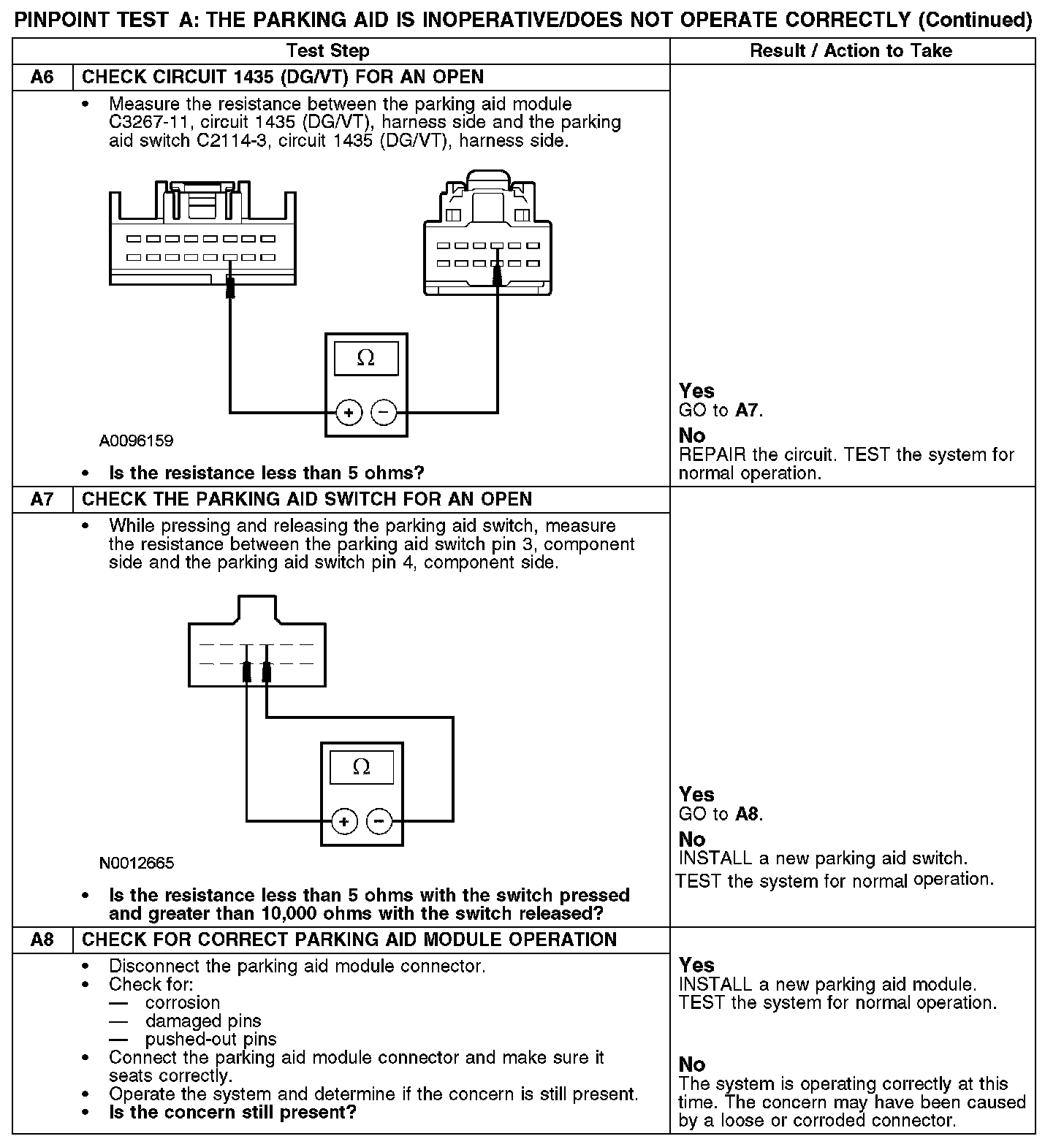

A6-A8:

Normal Operation
The parking aid system is enabled when the ignition switch is in the RUN position and REVERSE (R) gear is selected. The parking aid module supplies voltage to the parking aid sensors on circuit 1439 (BN/PK). The parking aid module supplies ground to the parking aid sensors on circuit 1440 (DG/YE). The parking aid module receives a signal from the parking aid sensors on circuits 1444 (DB/YE), 1443 (WH/LB), 1442 (DG/WH) and 1441 (WH/LG).

Possible Causes
- Fuse
- Circuit 1367 (WH/YE) open or short to ground
- Circuit 1435 (DG/VT) open or short to ground
- Circuit 1205 (BK) open
- Parking aid sensor alignment
- Parking aid module
- Parking aid switch
- Bumper cover
