Antenna, Radio: Service and Repair

ANTENNA - SATELLITE RADIO







Removal and Installation

Wagon
1. Remove the LH and RH D-pillar trim panels.

Sedan
2. Remove the LH and RH C-pillar trim panels.

All vehicles
3. Carefully lower the rear of the headliner to gain access to the satellite antenna.

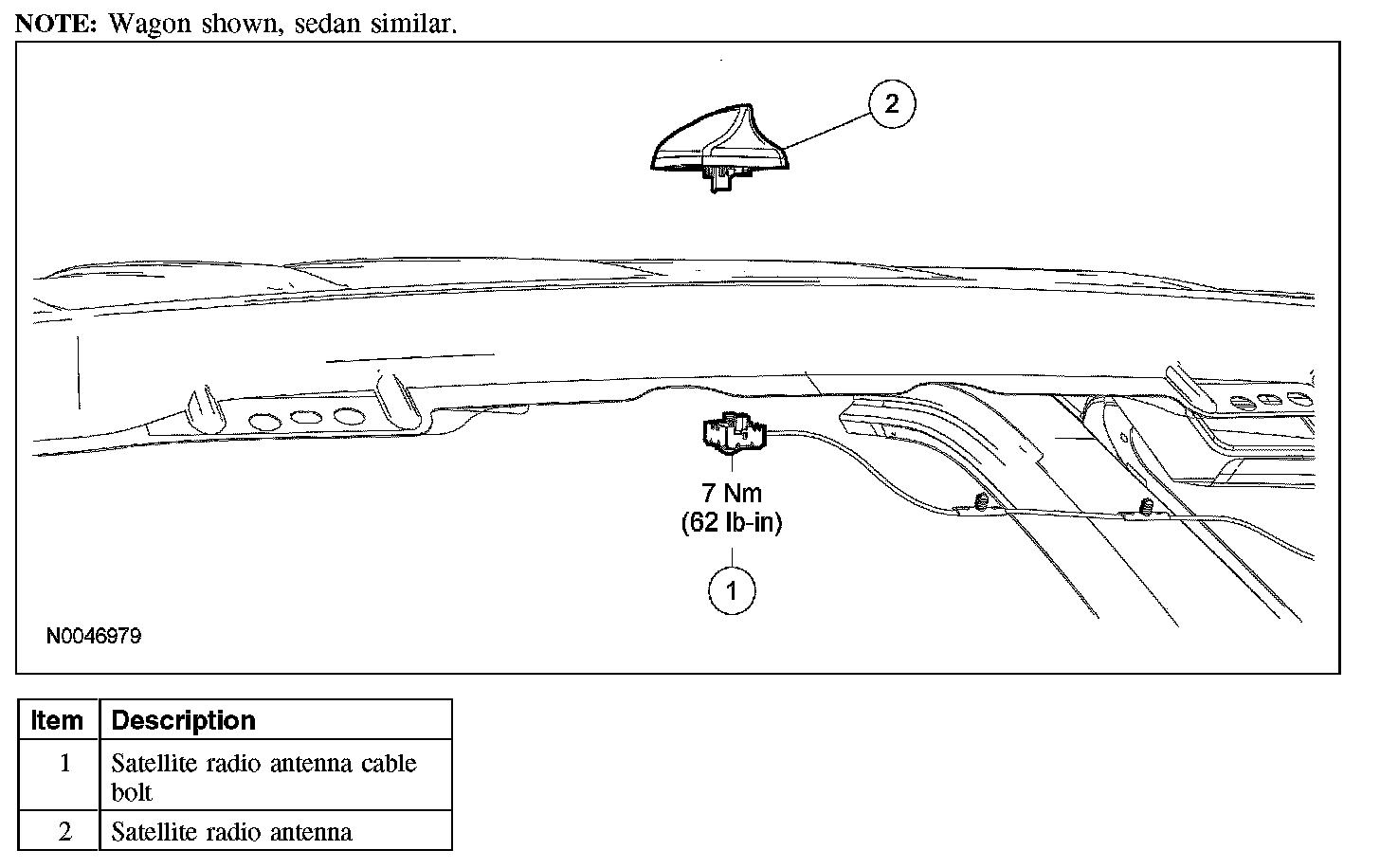

4. Loosen the satellite radio antenna cable bolt and disconnect the cable from the satellite radio antenna.
- To install, tighten to 7 Nm (62 lb-in).

5. Remove the satellite radio antenna.
6. To install, reverse the removal procedure.
