Montego 2WD V6-3.0L VIN 1
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Automatic Transmission/Transaxle
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
6 Speed Automatic Transaxle
>>
Connector Views
Connector Views
Transaxle Connector Layouts

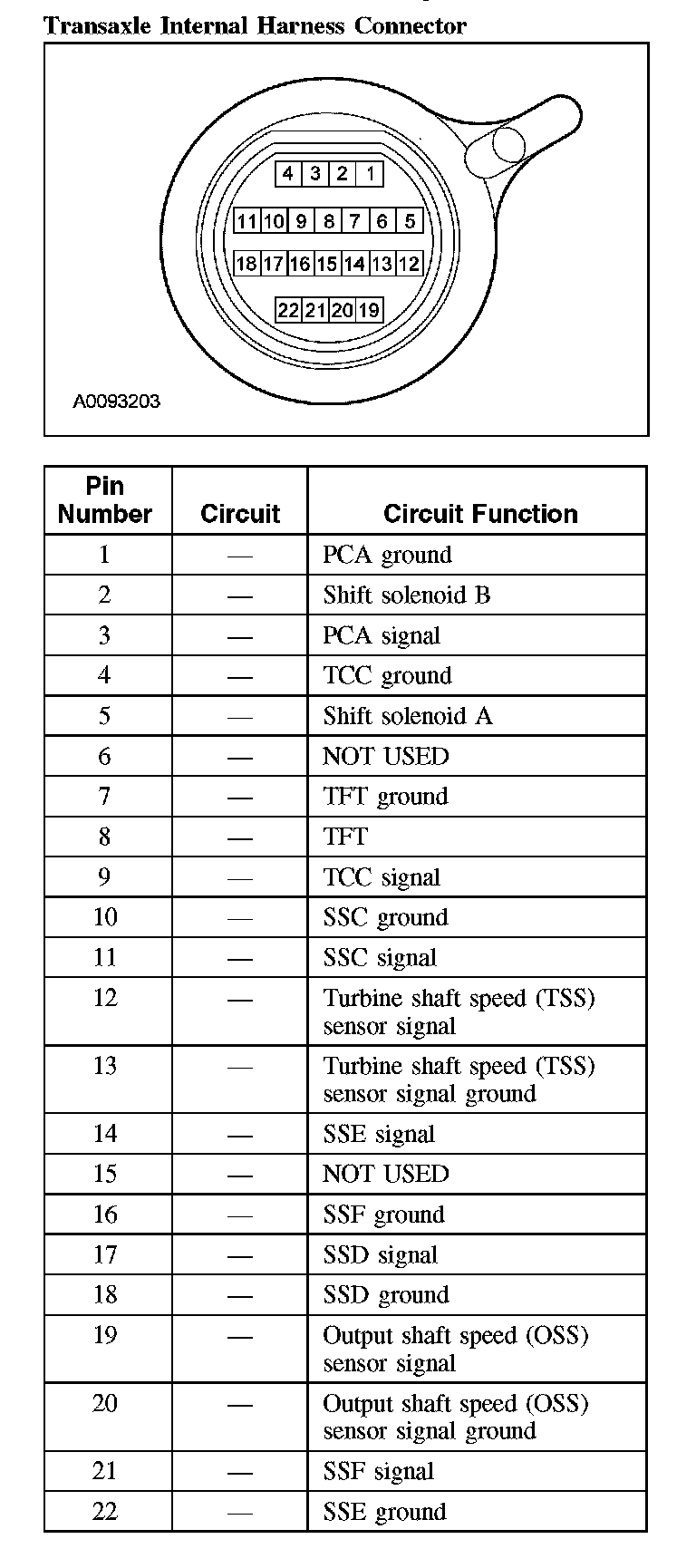

Transaxle Internal Harness Connector:

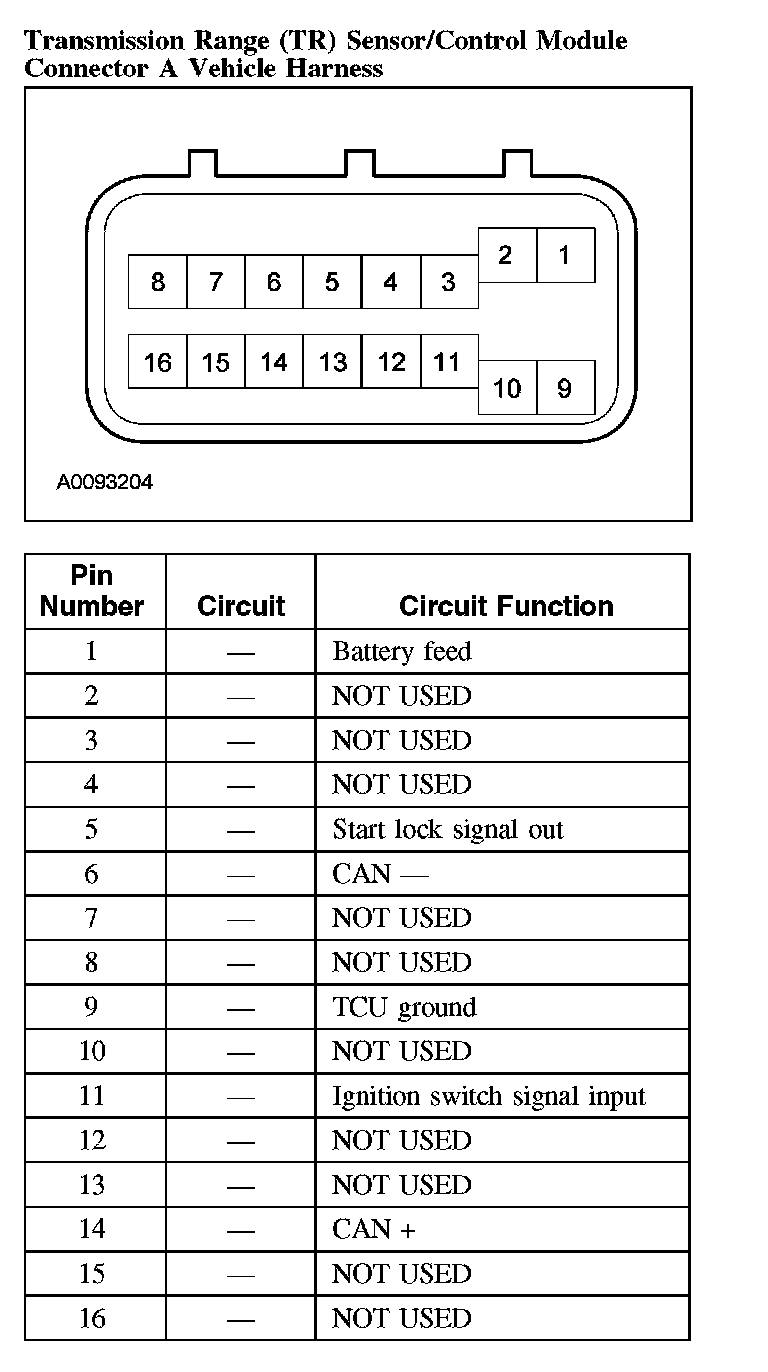

Transmission Range (TR) Sensor/Control Module Connector A Vehicle Harness:

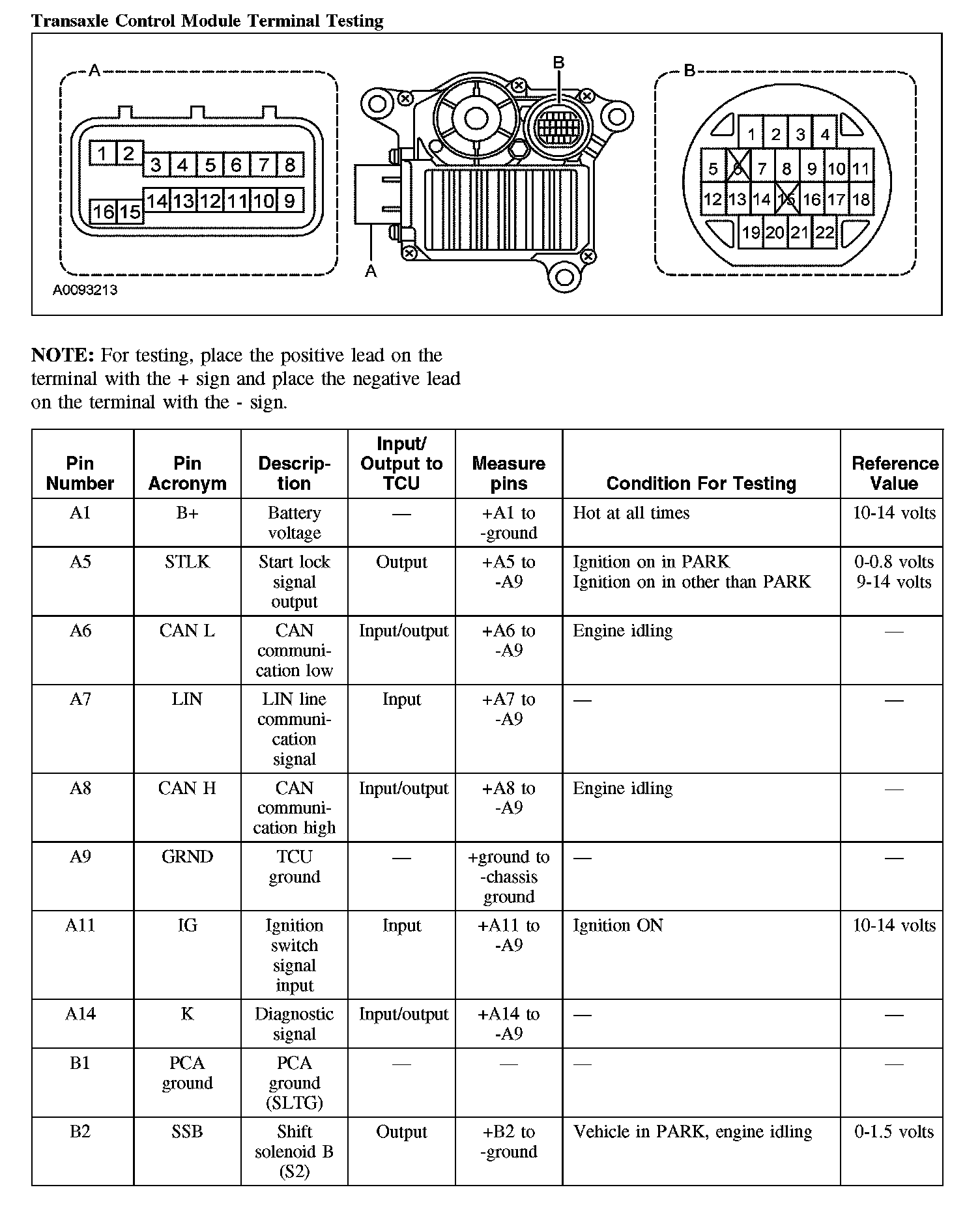

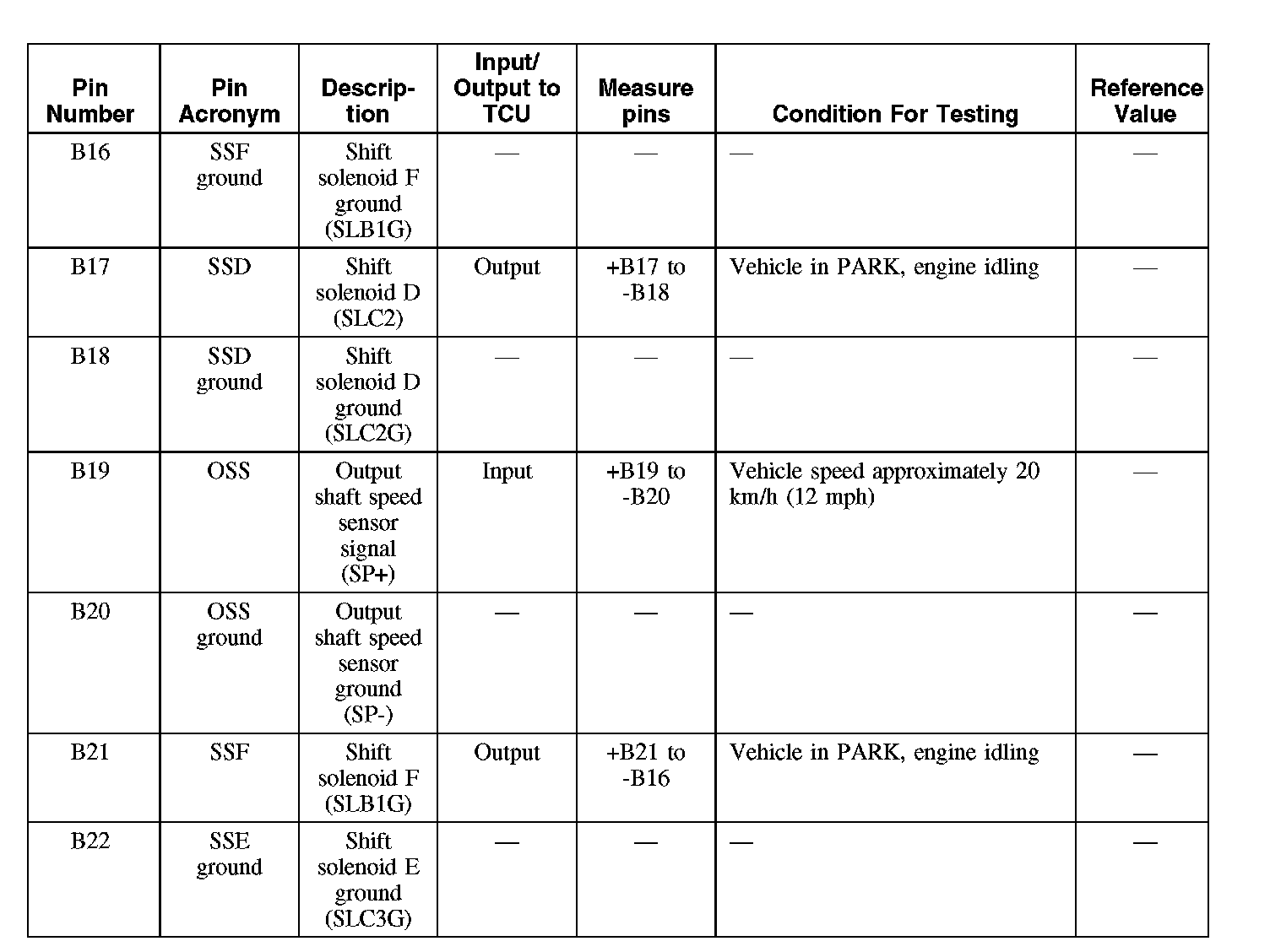

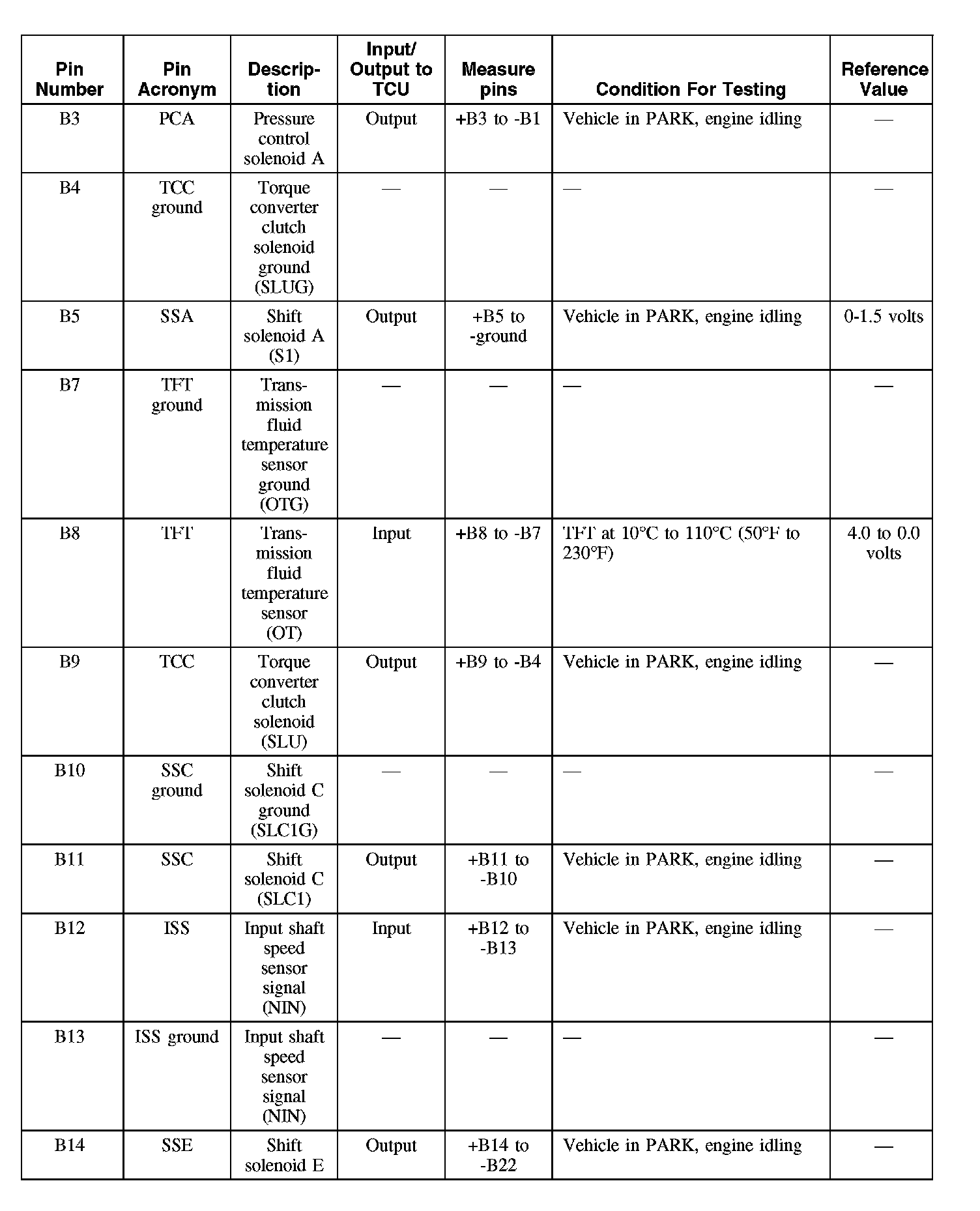

Transaxle Control Module Terminal Testing:
