Transaxle Description

Transaxle Description

This transaxle is a compact, lightweight, next generation electronically controlled, 6-speed automatic transaxle that employs Ravigeneaux-type and one single planetary gear sets.

This transaxle contains a high precision clutch hydraulic control system for a smooth, highly responsive gear shift feel.

All hydraulic functions are directed by electronic solenoids to control:
^ engagement feel.
^ shift feel.
^ shift scheduling.
^ modulated torque converter clutch (TCC) applications.
^ engine braking utilizing the coast clutch.

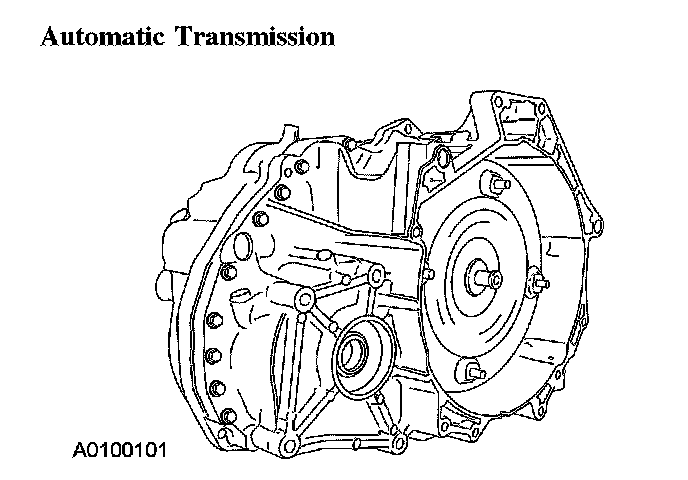

Automatic Transmission:
