Test C: Steering System Drift/Pull/Wander

Test C: Steering System Drift/Pull/Wander

Possible Causes
^ Steering gear
^ Intermediate shaft
^ Intermediate shaft U-joints
^ Steering gear mounts
^ Suspension components

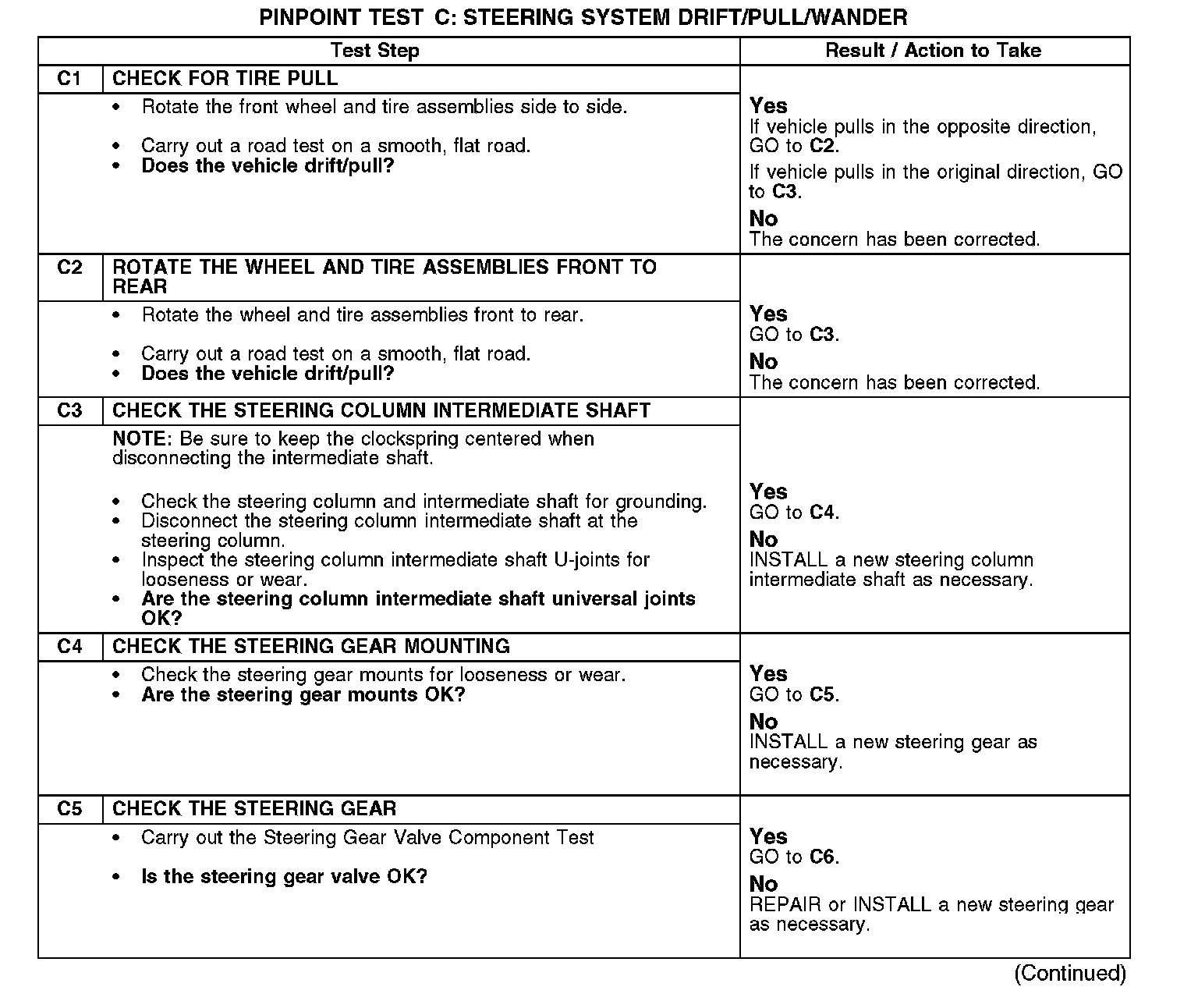

C1-C5:

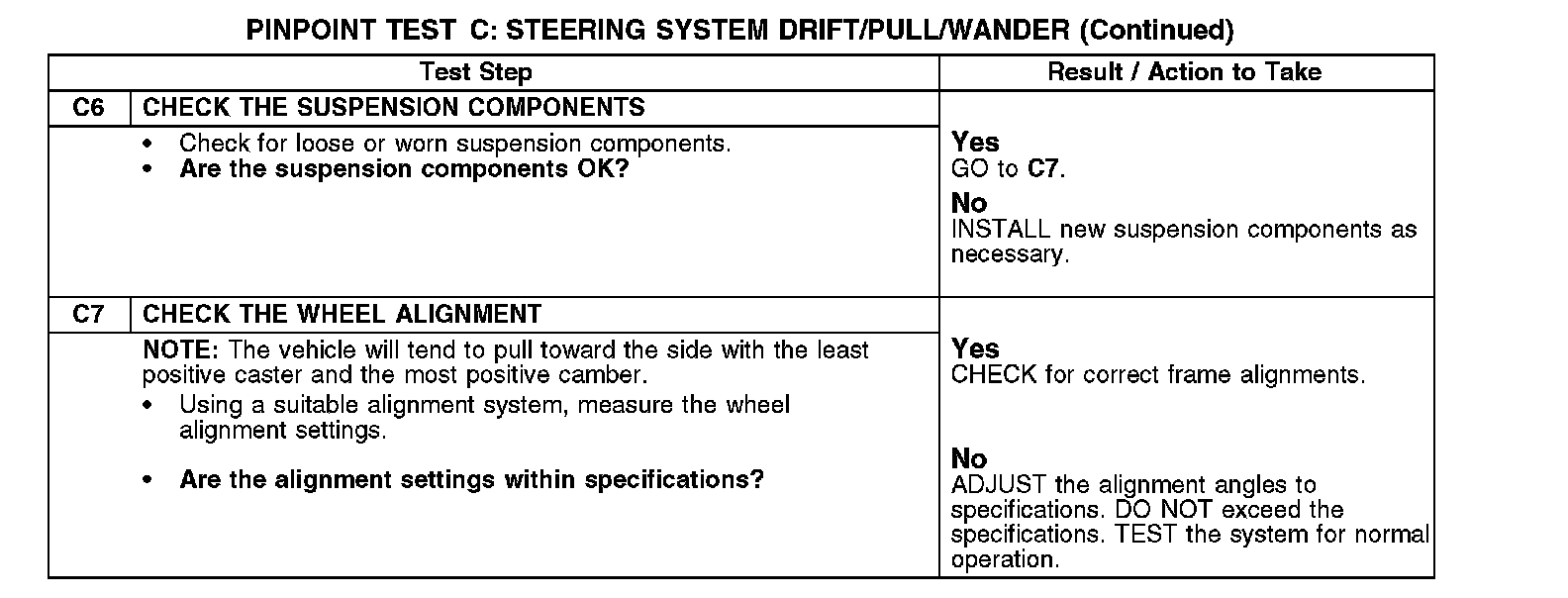

C6-C7:
