Rear Suspension - Exploded View

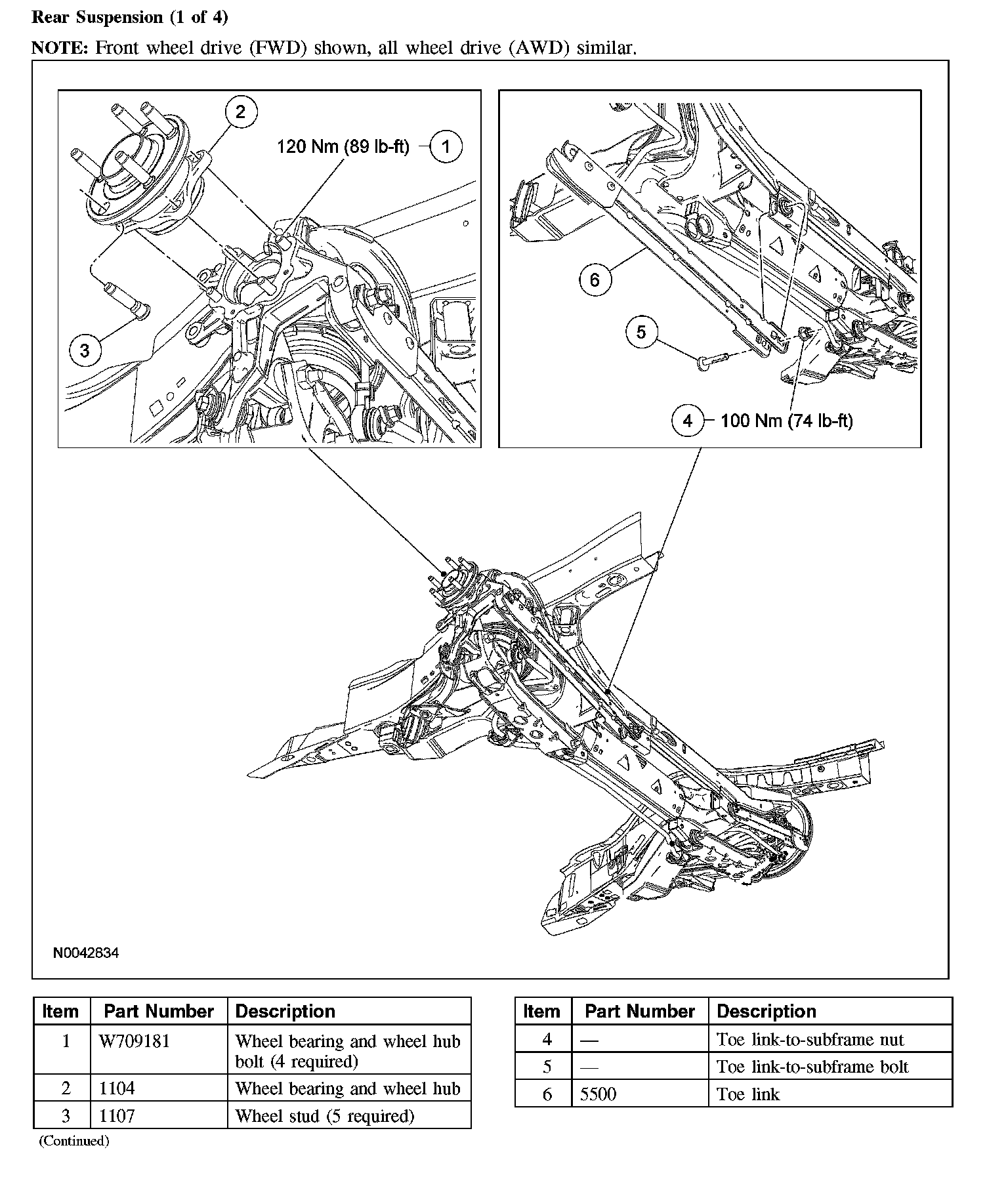

Rear Suspension (1 of 4):

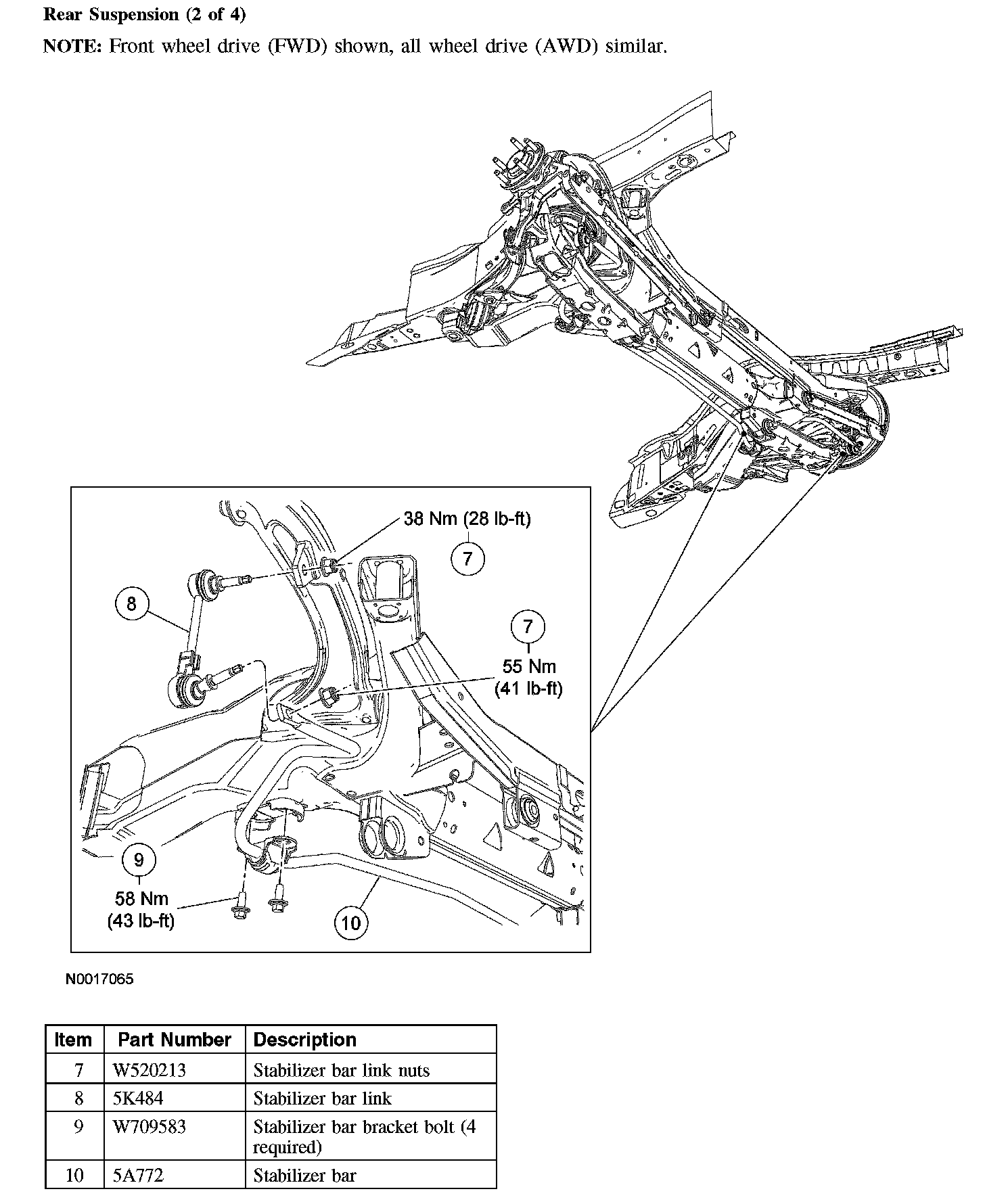

Rear Suspension (2 of 4):



Rear Suspension (3 of 4):



Rear Suspension (3 of 4):



Rear Suspension (3 of 4):
