Home >> Mercury >> 2007 >> Montego 2WD V6-3.0L VIN 1 >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Automatic Transmission/Transaxle >> System Specifications >> 6 Speed Automatic Transmission >> Clutch and Brake Pressure Chart

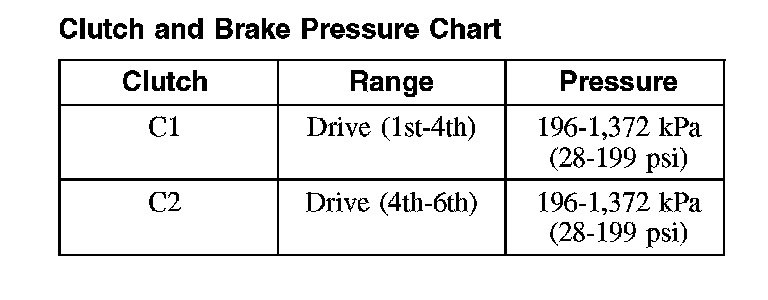

Clutch and Brake Pressure Chart

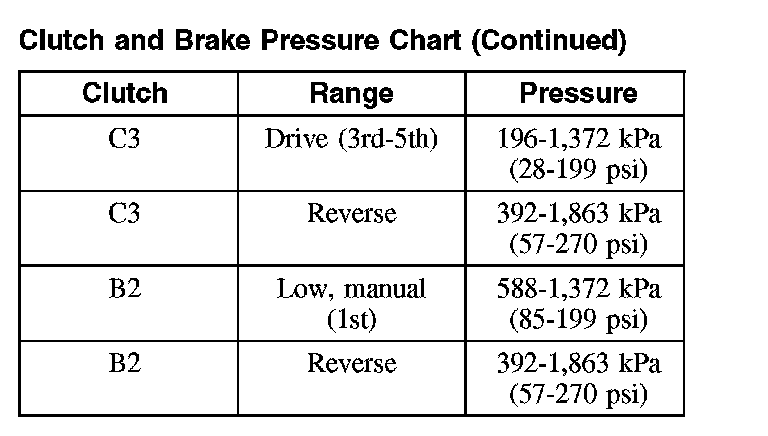

Clutch and Brake Pressure Chart:



Clutch and Brake Pressure Chart:
