Knock Sensor: Service and Repair

KNOCK SENSOR (KS)







Removal and Installation
1. With the vehicle in NEUTRAL, position it on a hoist.
2. Disconnect the battery ground cable.

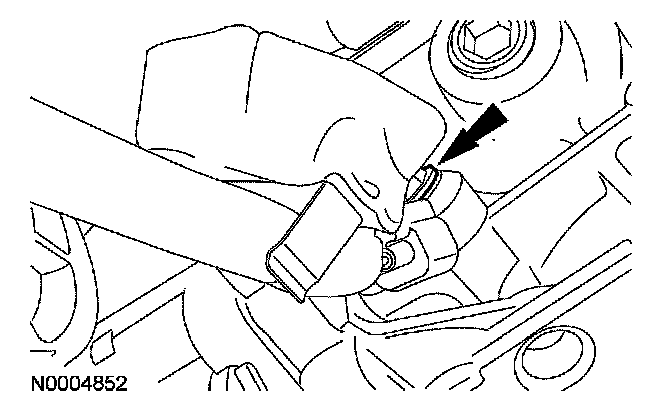

3. Position the knock sensor (KS) heat shield aside.

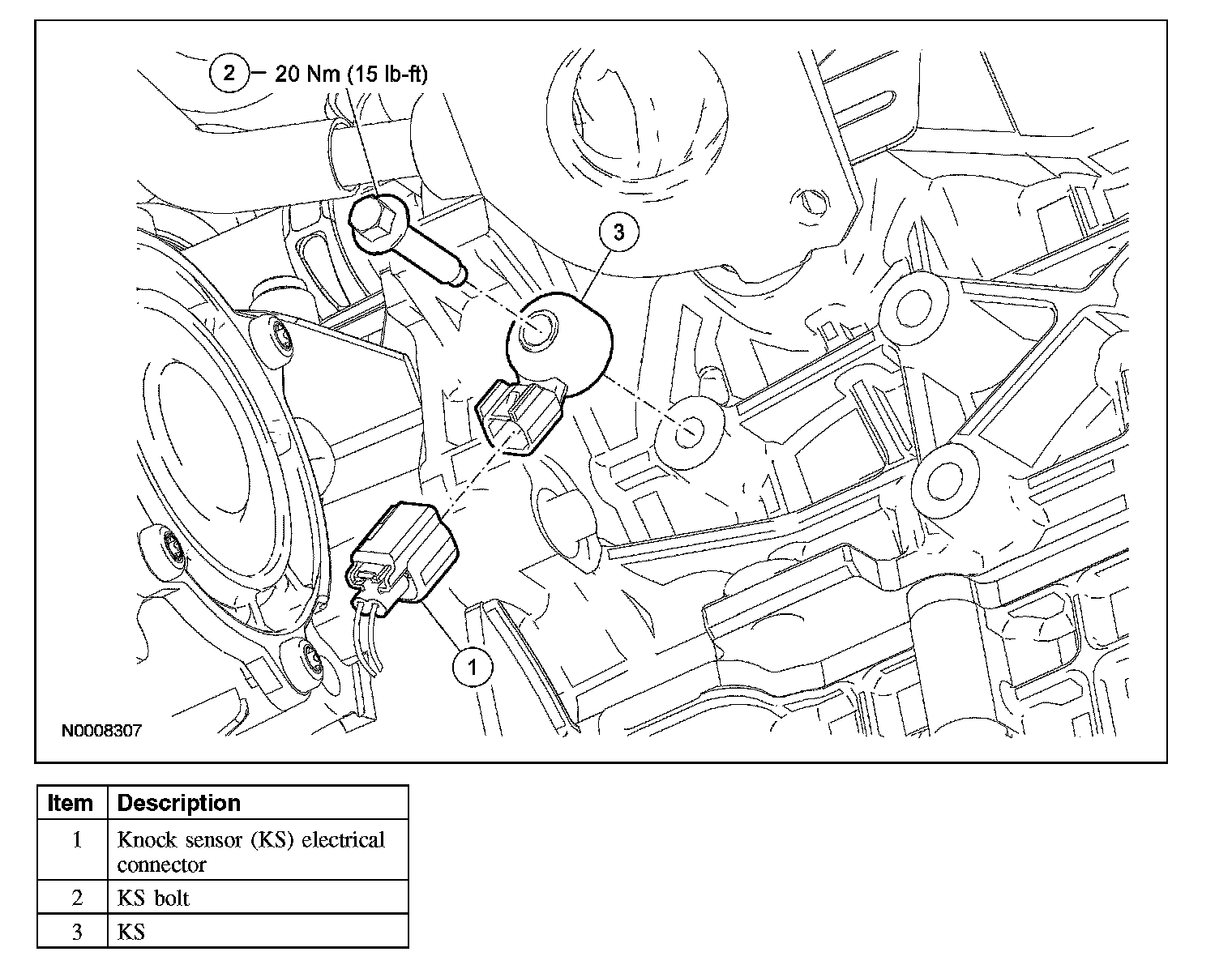

4. Disconnect the KS electrical connector.
5. Remove the bolt and the KS.
- To install, tighten to 20 Nm (15 lb-ft).

6. To install, reverse the removal procedure.
