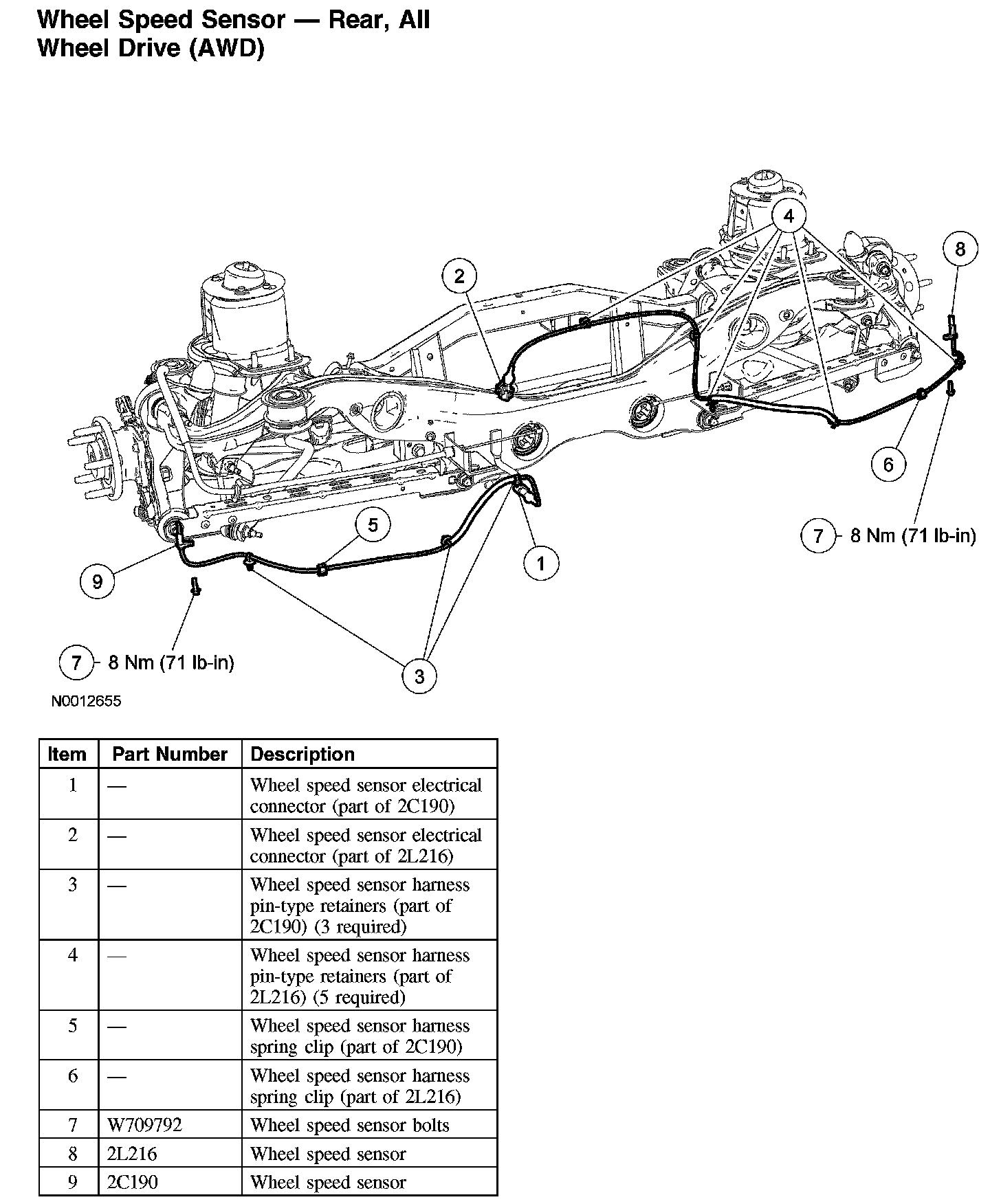

Wheel Speed Sensor - Rear, All Wheel Drive (AWD)

Wheel Speed Sensor - Rear, All Wheel Drive (AWD)

Wheel Speed Sensor - Rear, All Wheel Drive (AWD):

Removal and Installation

CAUTION: Make sure to correctly route and secure the wheel speed sensor harness in the rear subframe assembly.

All vehicles
1. With the vehicle in NEUTRAL, position it on a hoist.
2. Disconnect the wheel speed sensor electrical connector.
3. Remove the wheel speed sensor bolt.
^ To install, tighten to 8 Nm (71 lb-in).

LH

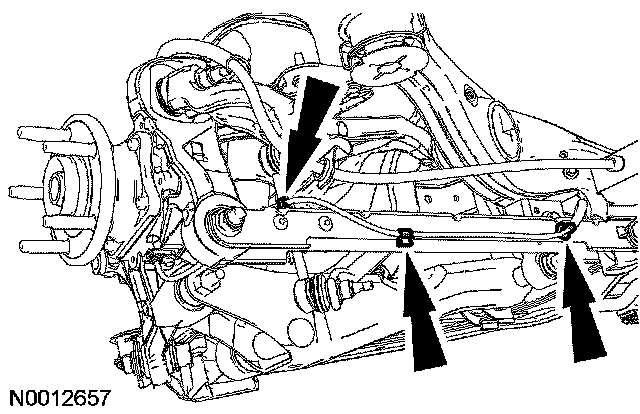

4. Release the wheel speed sensor harness spring clip and the 2 pin-type retainers from the rear control arm.

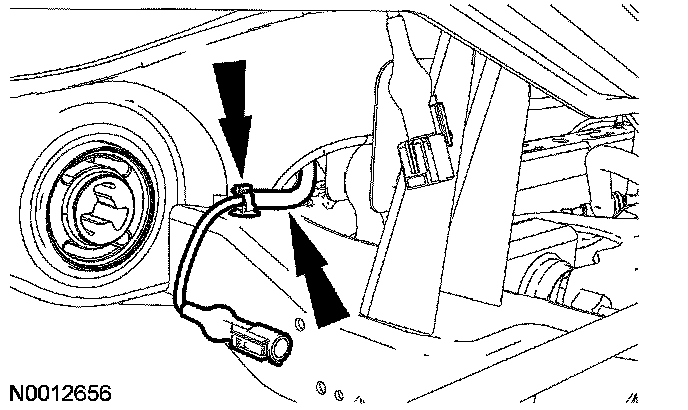

5. Release the wheel speed sensor harness pin-type retainer and remove the wheel speed sensor.





RH

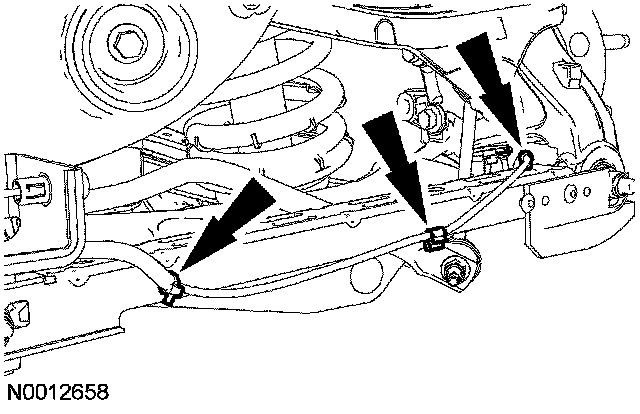

6. Release the wheel speed sensor harness spring clip and the 2 pin-type retainers from the rear control arm.

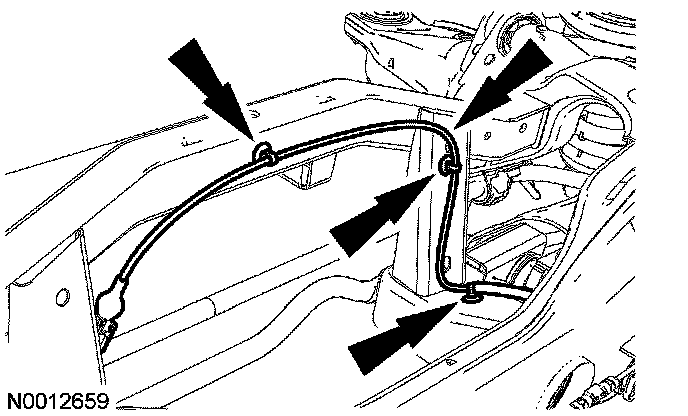

7. Release the 3 pin-type retainers and remove the wheel speed sensor.





All vehicles
8. To install, reverse the removal procedure.
