Tests KM: Air Conditioning Clutch Relay (A/CCR) Circuit

PINPOINT TEST KM: AIR CONDITIONING CLUTCH RELAY (A/CCR) CIRCUIT

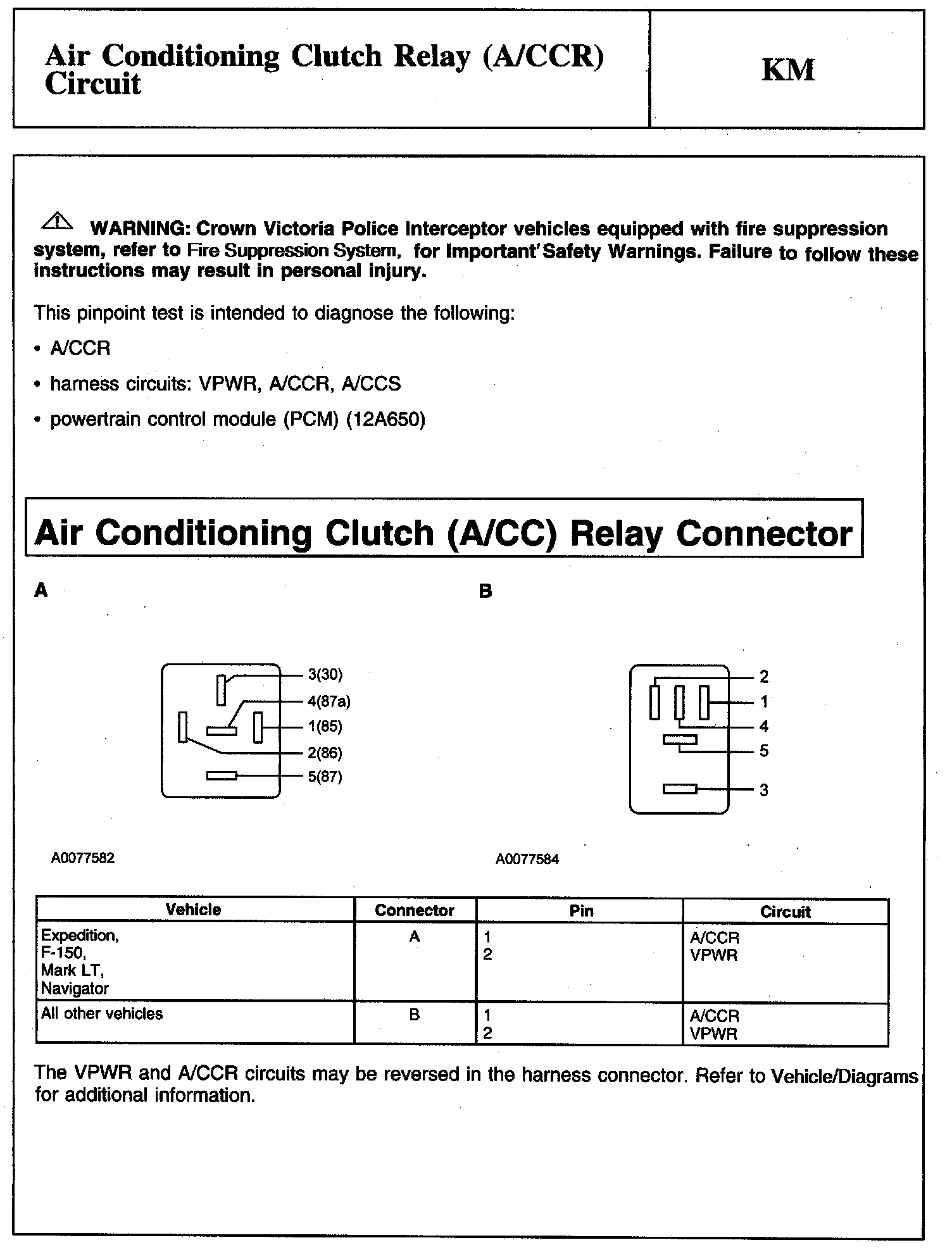

Warning And Air Conditioning Clutch (A/CC) Relay Connector:

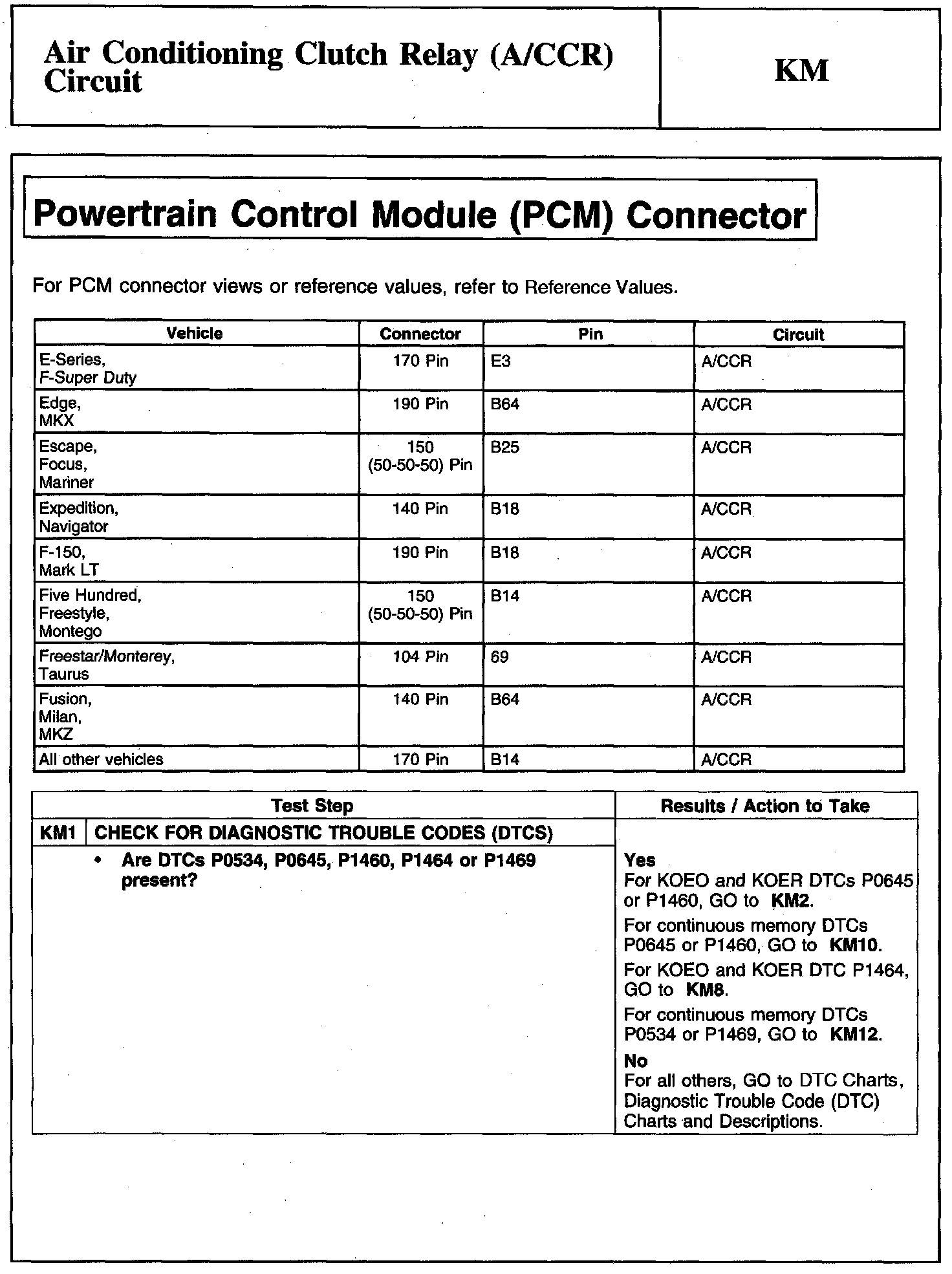

KM1:

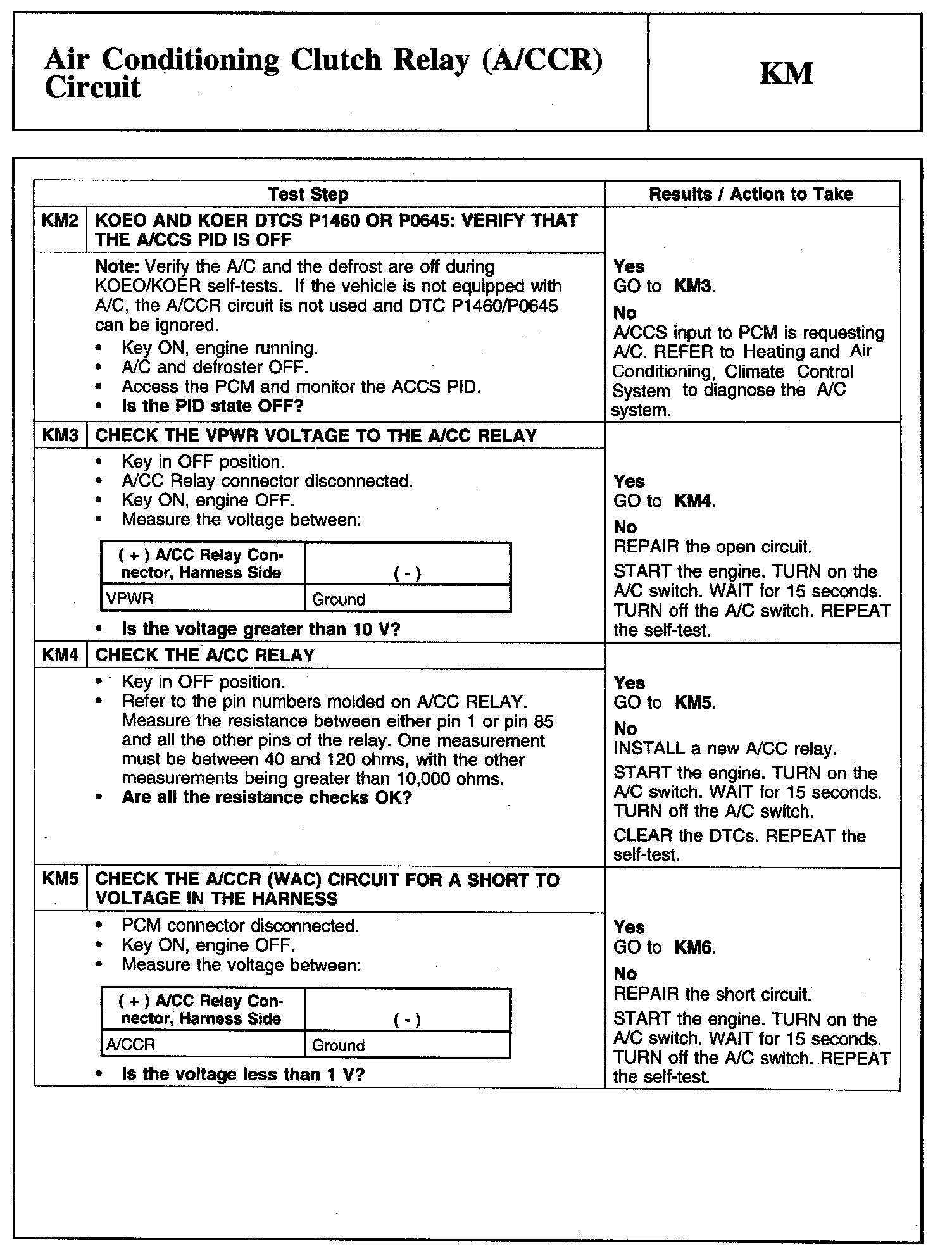

KM2-KM5:

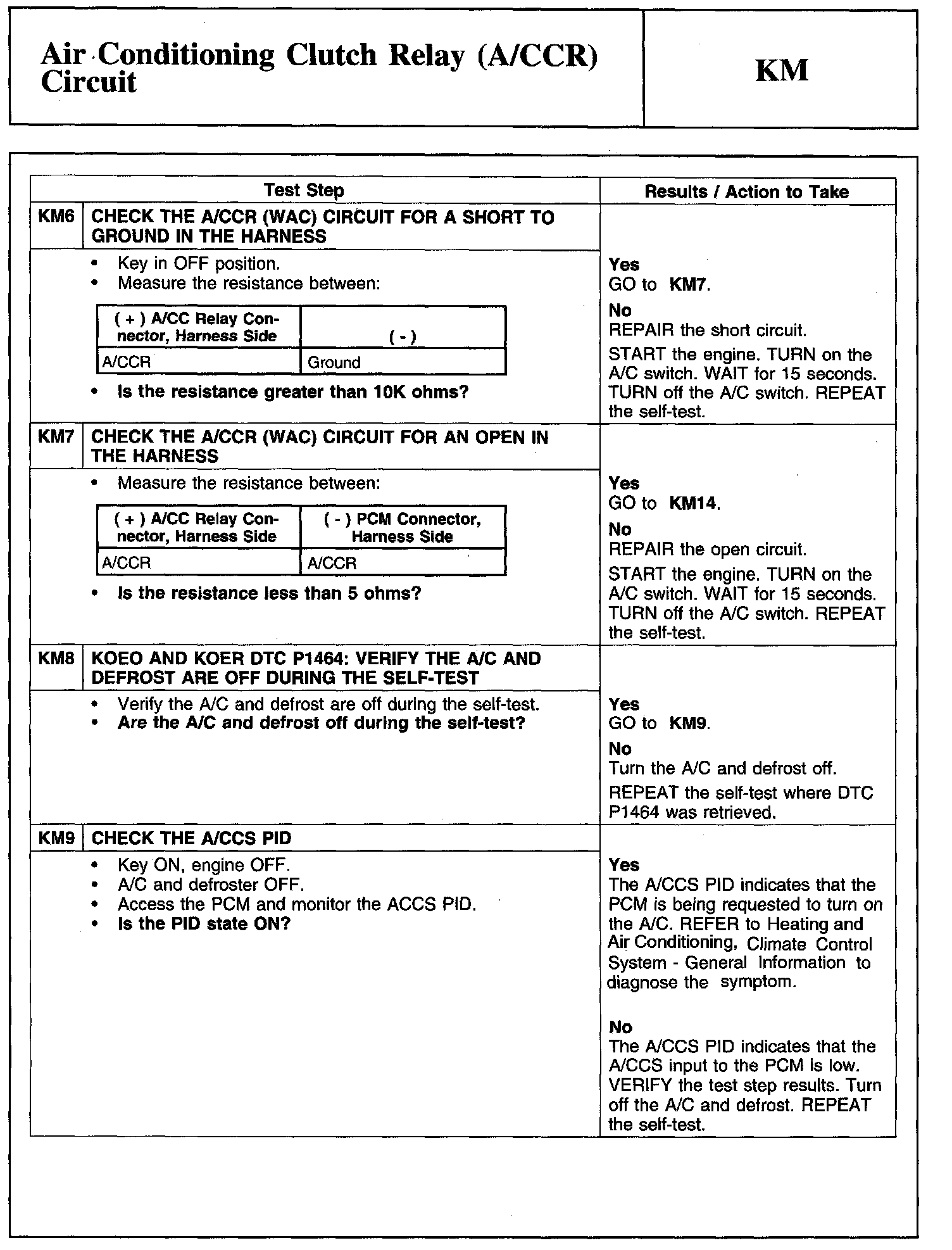

KM6-KM9:

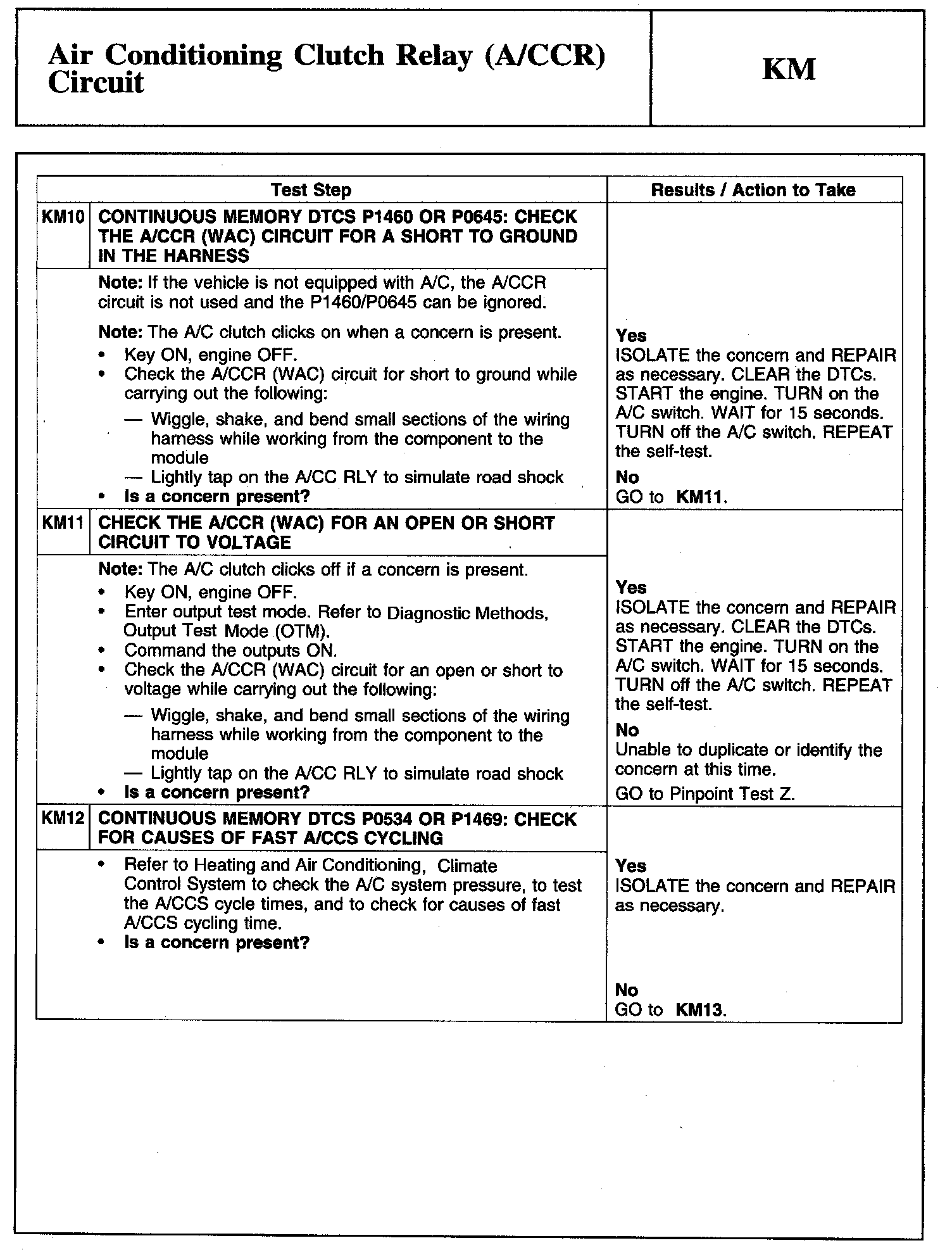

KM10-KM12:

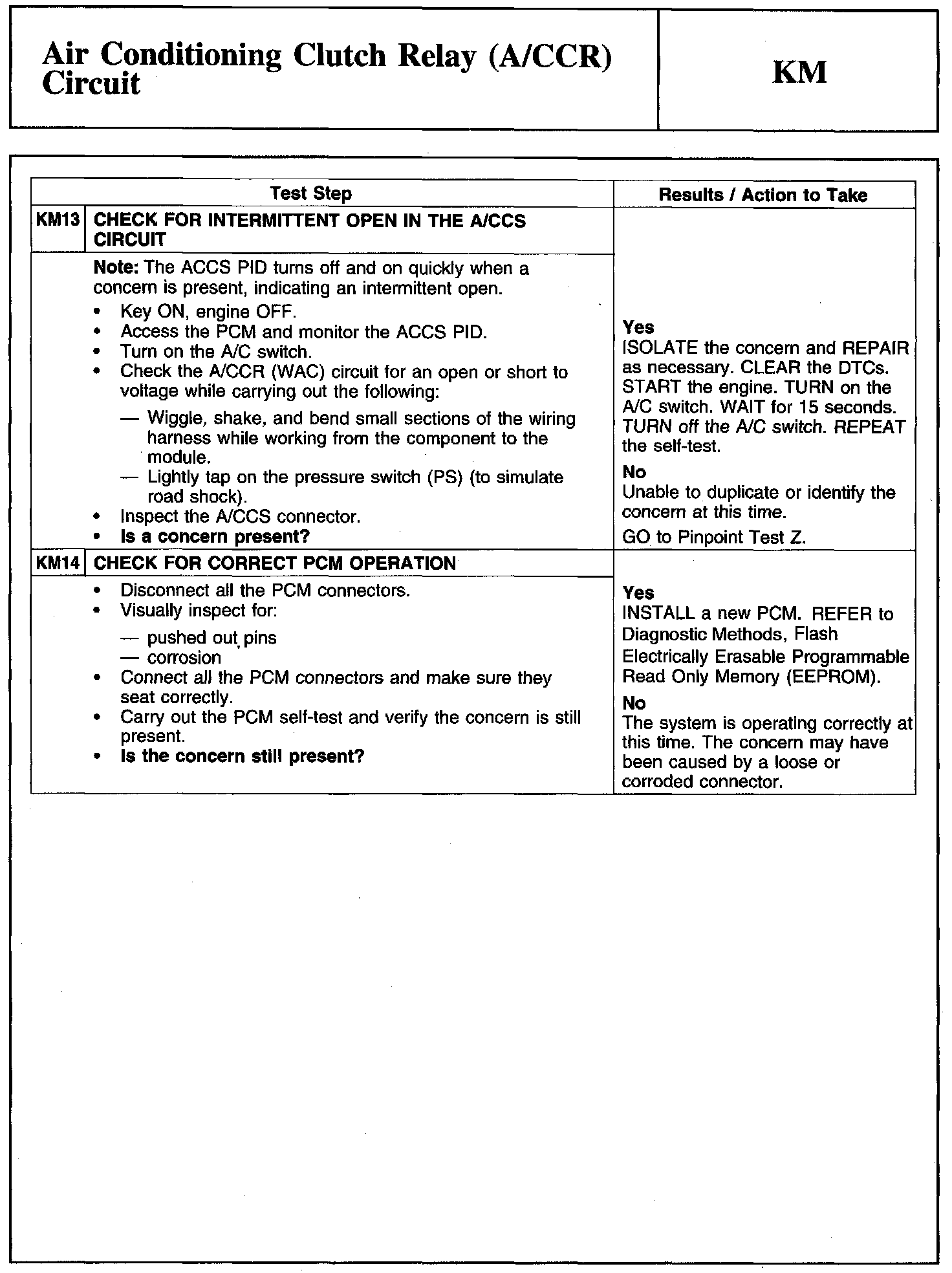

KM13-KM14:
