Home >> Mercury >> 2007 >> Montego 2WD V6-3.0L VIN 1 >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Information Bus >> Testing and Inspection >> Diagnostic Trouble Code Tests and Associated Procedures >> Module Communications Network

Module Communications Network

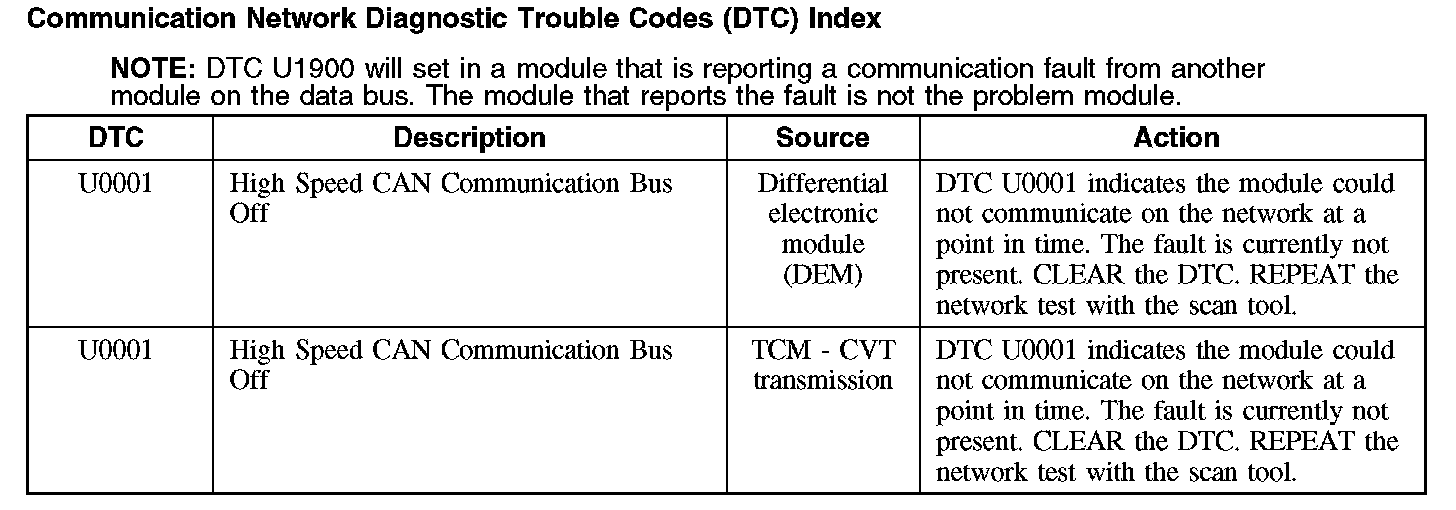

U0001-U0001:

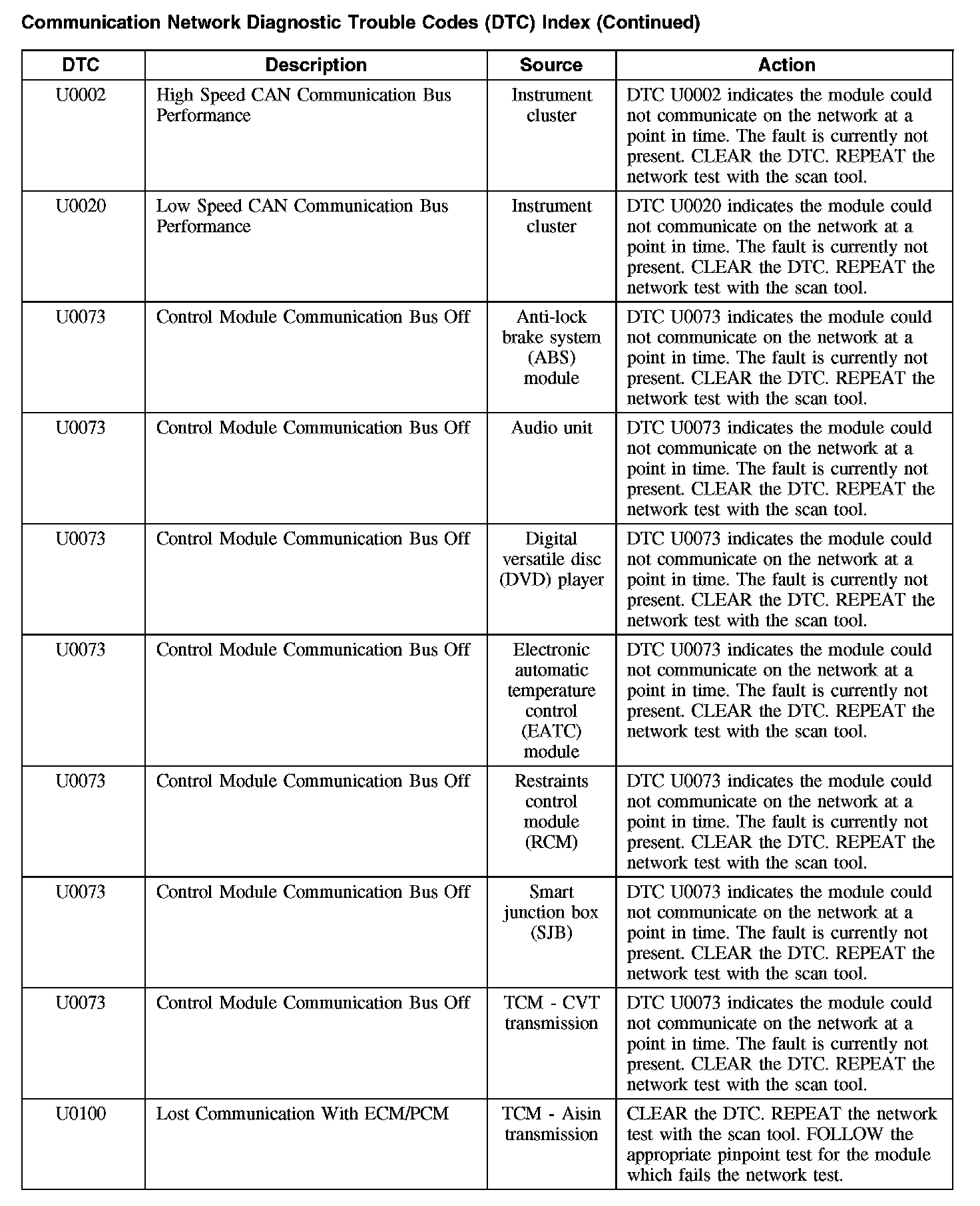

U0002-U0100:

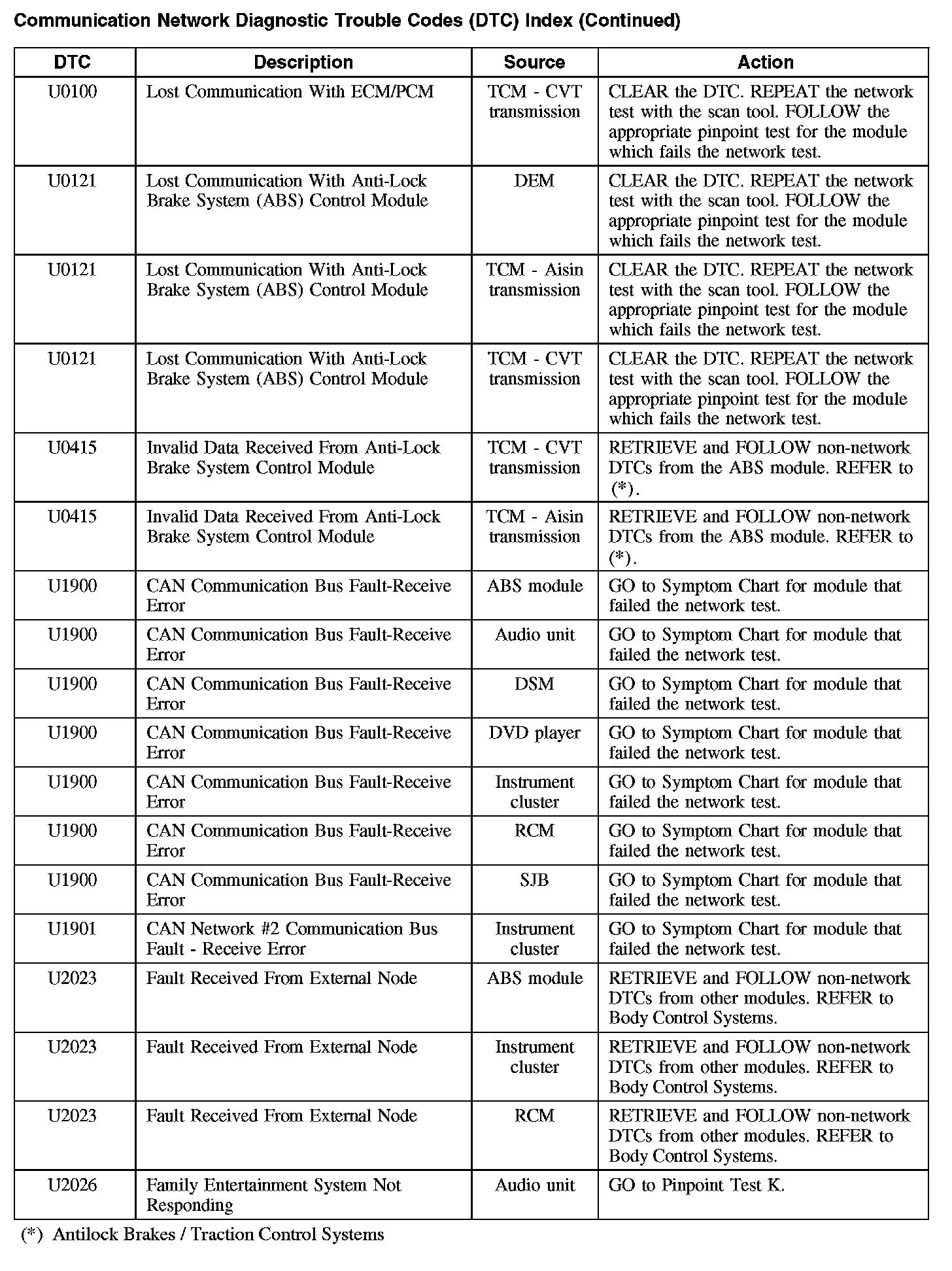

U0100-U2026:
