Test P: The High Beam Indicator Is Never/Always On

PINPOINT TEST P: THE HIGH BEAM INDICATOR IS NEVER/ALWAYS ON

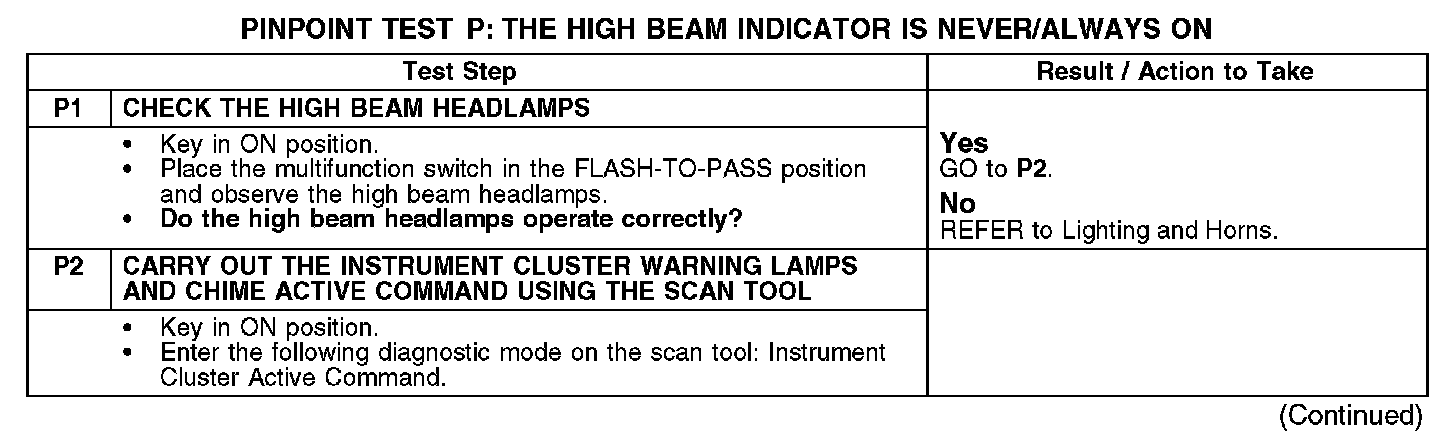

P1-P2:

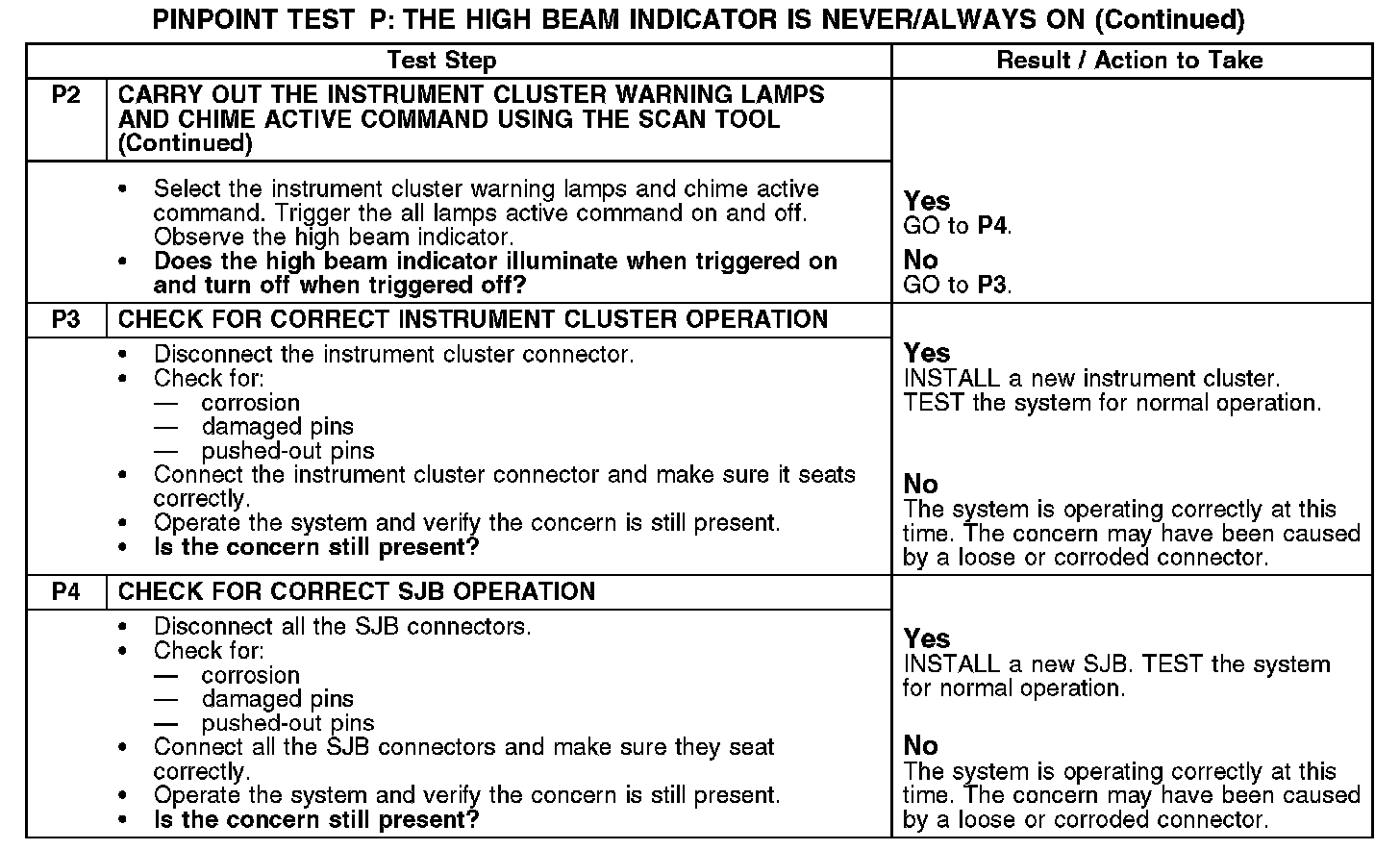

P2-P4:

Normal Operation
When the high beams are turned on, the smart junction box (SJB) sends a signal to the instrument cluster through the communication network to illuminate the high beam indicator.

Possible Causes
- SJB
- Instrument cluster
