Auxiliary Blower Motor: Service and Repair

AUXILIARY BLOWER MOTOR

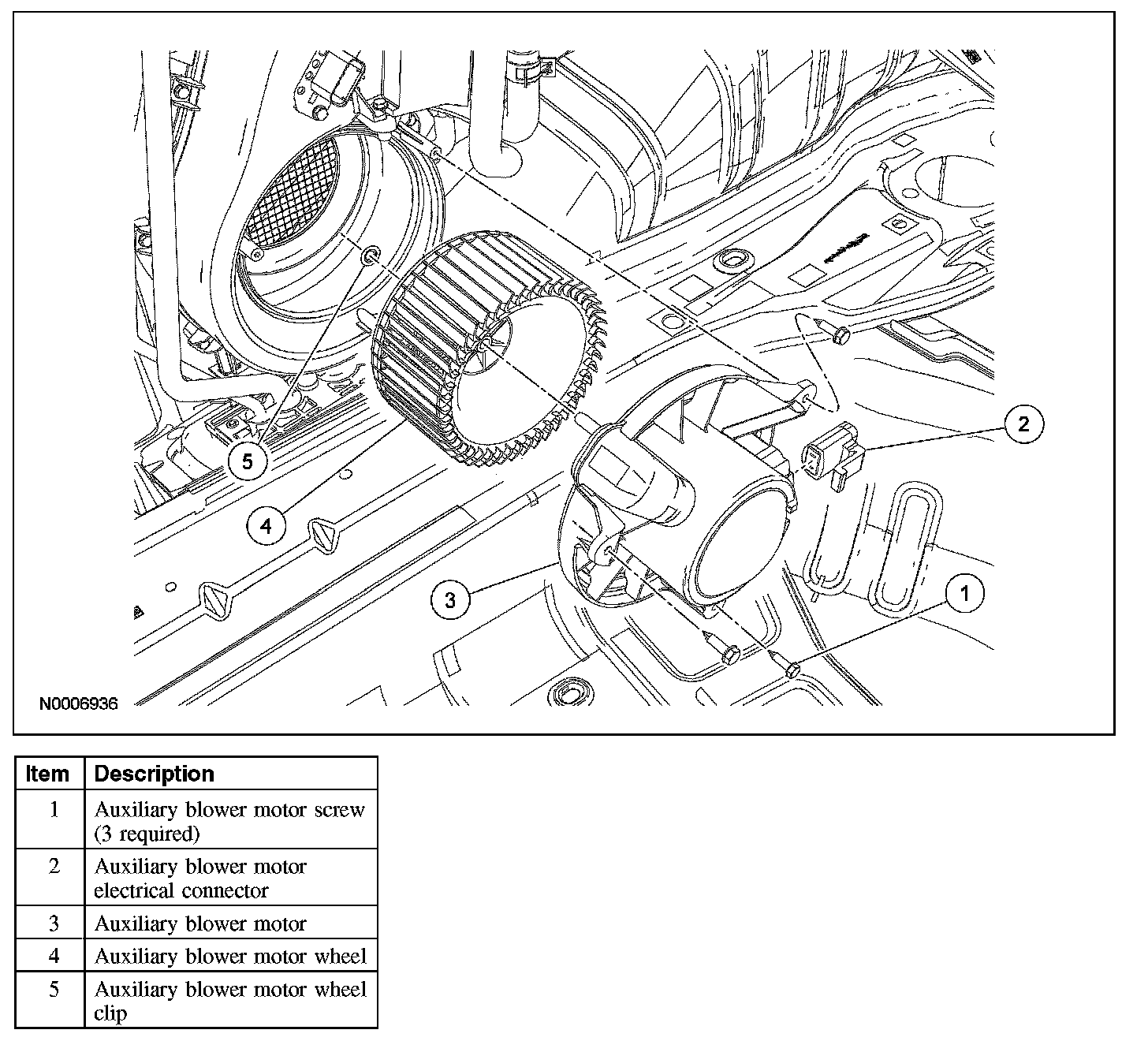

Removal and Installation
1. Remove the LH quarter trim panel.
2. Disconnect the auxiliary blower motor electrical connector.
3. Remove the 3 auxiliary blower motor screws.
4. Remove the auxiliary blower motor.
5. Remove the auxiliary blower motor wheel clip.
6. Remove the auxiliary blower motor wheel.
7. To install, reverse the removal procedure.
