Console - Front, Floor

CONSOLE-FRONT, FLOOR







Removal and Installation
1. Remove the floor shifter trim ring.
2. Remove the floor console center finish panel.

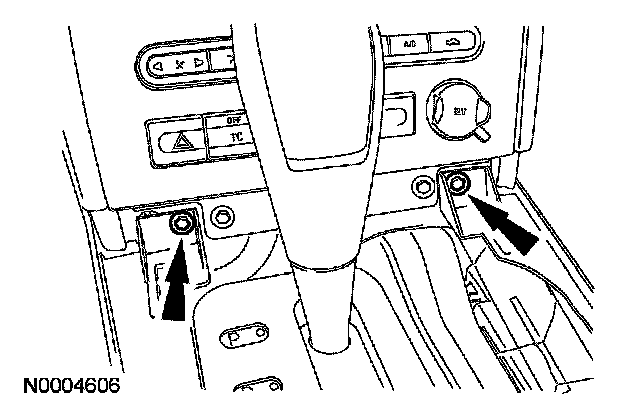

3. NOTE: Five Hundred, Montego shown; Freestyle similar.

Remove the 2 floor console front screws.

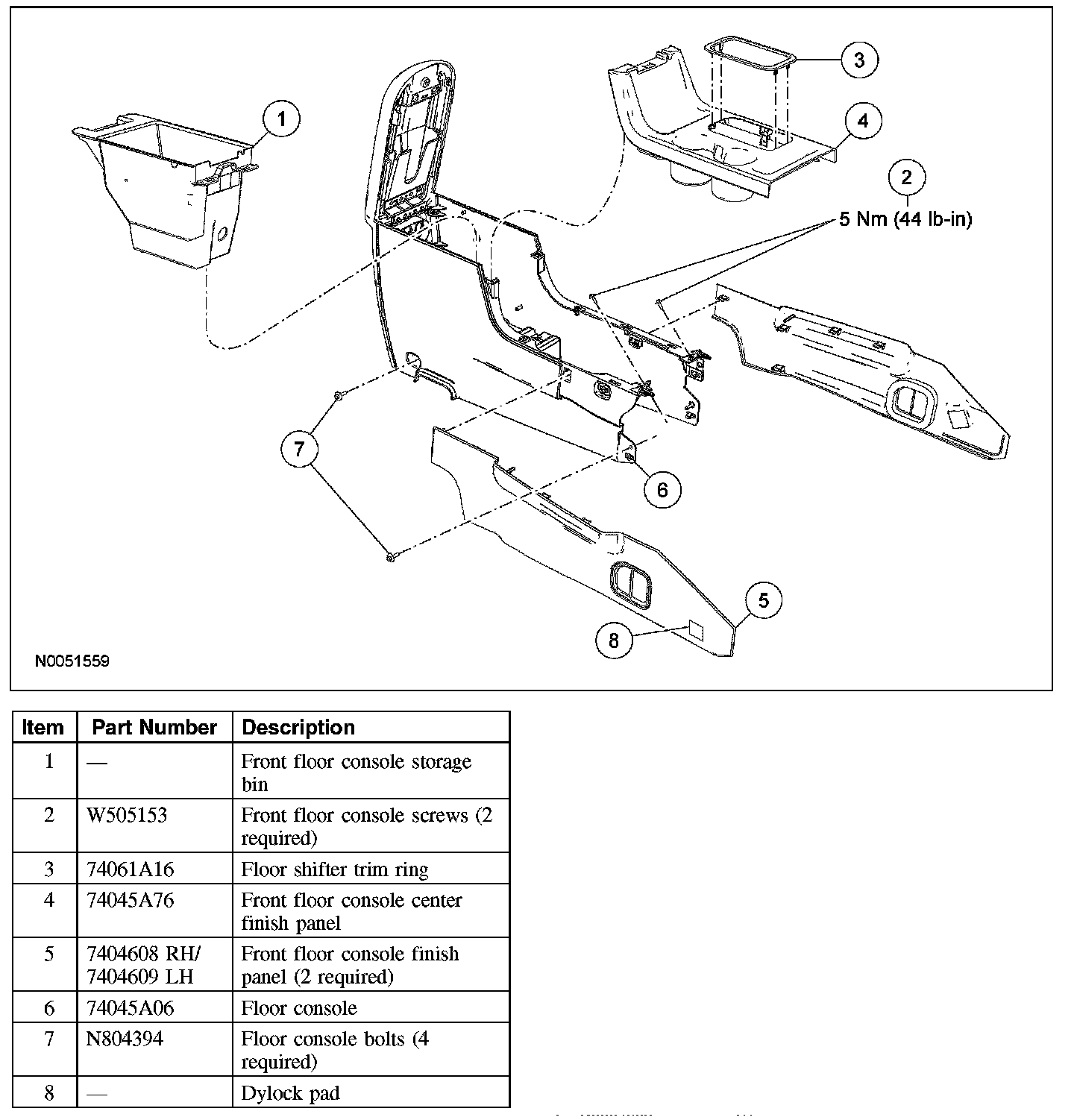

4. Remove the floor console LH and RH finish panels.
- To install, apply 110 Nm (81 lb-ft) of force to the Dylock area in the front of the panel.

5. Remove the 4 front floor console bolts.
6. Remove the 2 front floor console-to-instrument panel screws.
- To install, tighten to 5 Nm (44 lb-in).

7. Disconnect the electrical connectors.
8. Remove the floor console.
9. To install, reverse the removal procedure.
