Home >> Mercury >> 2007 >> Milan FWD V6-3.0L VIN 1 >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> FNR5 - Automatic Transaxle/Transmission >> Diagnostic Routines >> Shift Concerns 210-337 >> 211-311, Timing Concerns - Early/Late

211-311, Timing Concerns - Early/Late

Timing Concerns - Early/Late

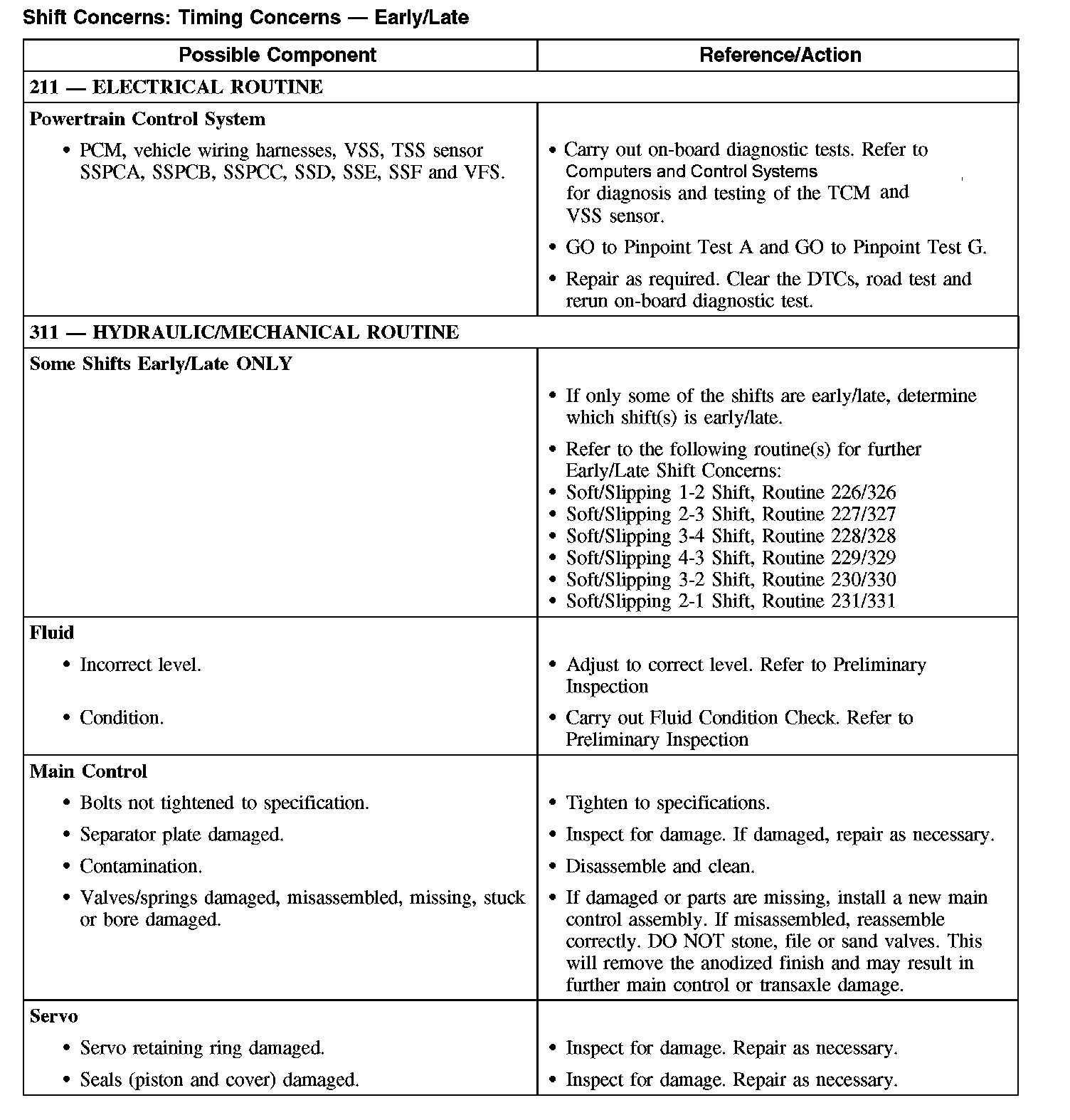

211-311 (Part 1):

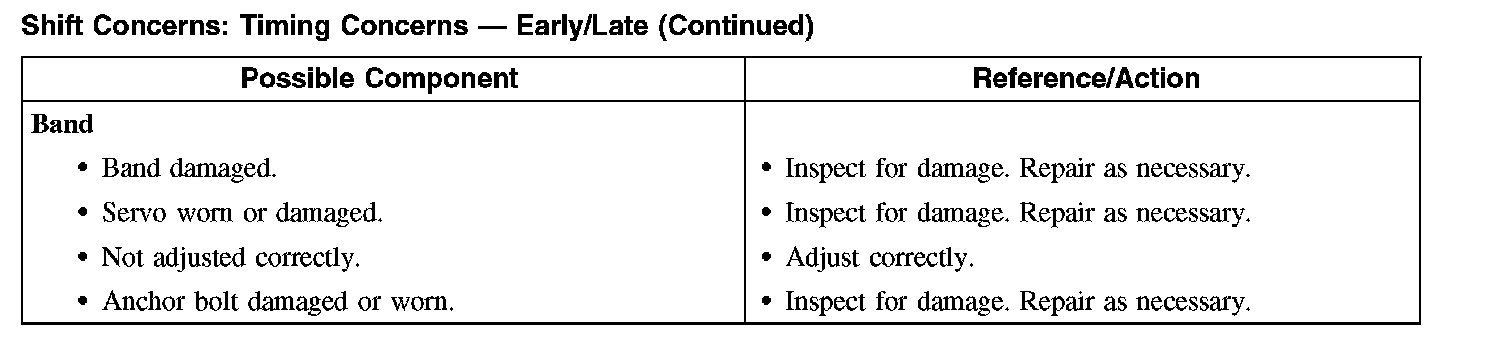

211-311 (Part 2):
