Selector Lever Knob

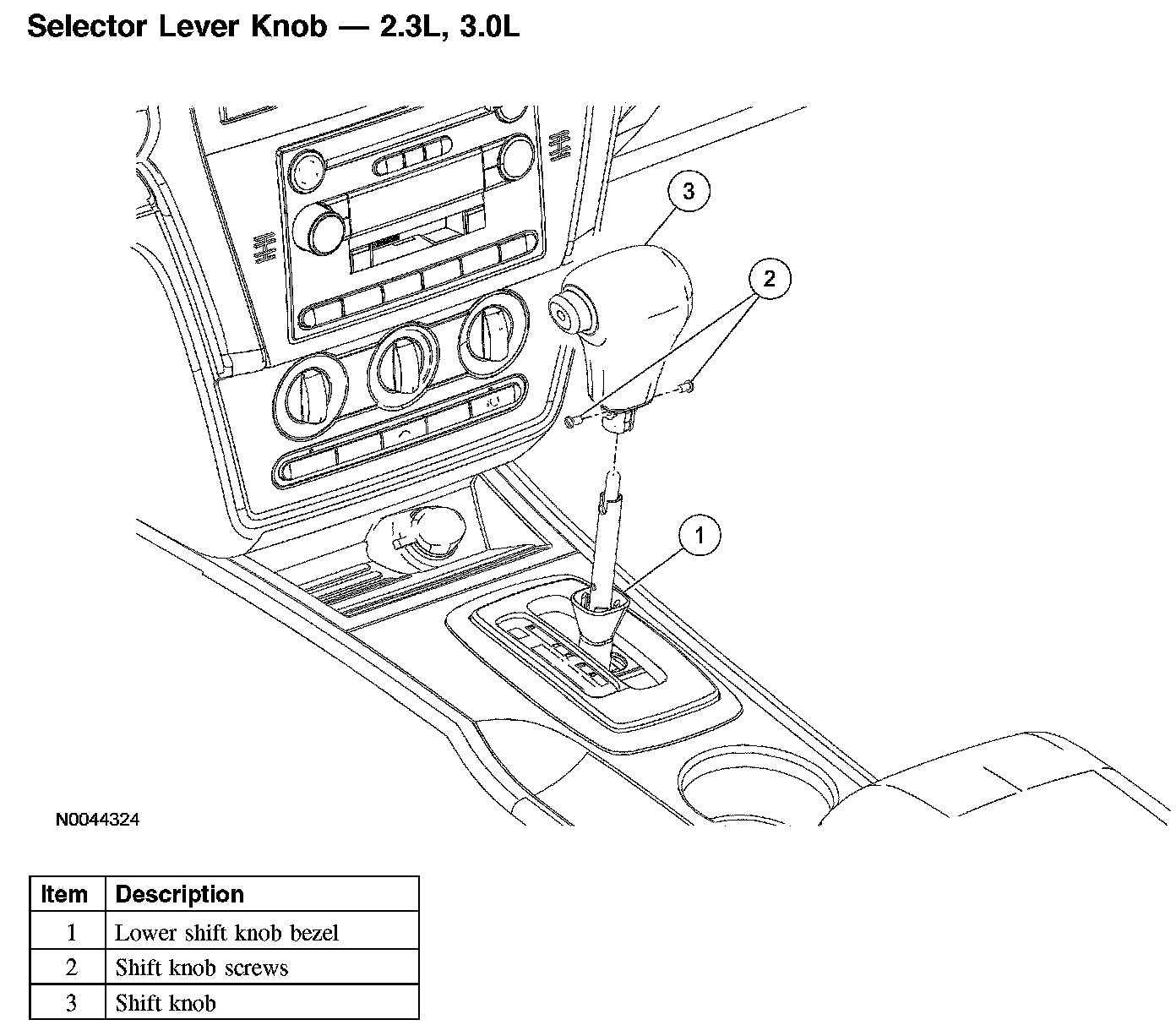

Selector Lever Knob - 2.3L, 3.0L

Selector Lever Knob - 2.3L, 3.0L:





Removal
1. Slide the lower shift knob bezel downward.

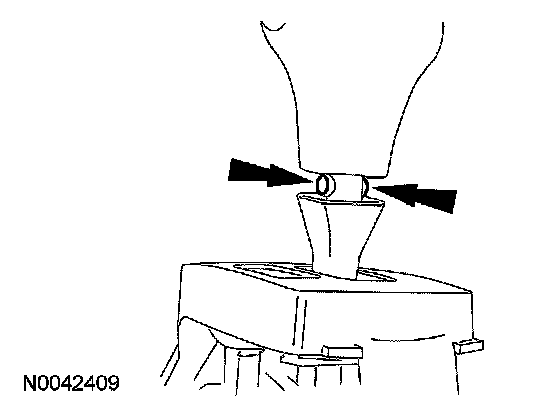

2. Remove the 2 bolts and lift up on the shift knob to remove.





Installation

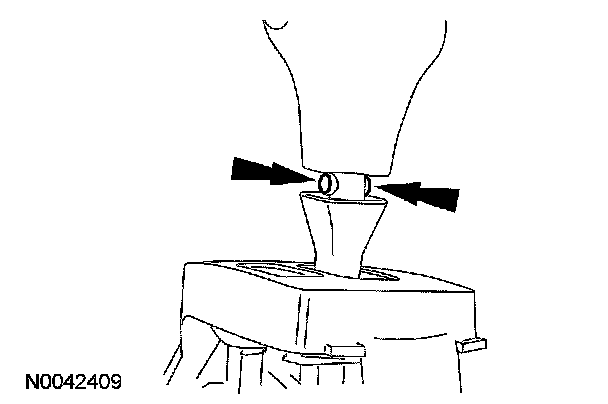

1. Install the shift knob and the 2 bolts.





2. Slide the lower shift knob bezel up and snap it into place.
