Test D: No Power in START

Test D: No Power in START
Refer to Vehicle/Diagrams

Normal Operation
The ignition switch START circuit provides fused ignition voltage, along circuit CDC35 (BU/WH) to the SJB, when the key is in the START position.

Possible Causes
- Circuit open
- Circuit shorted
- Ignition switch
- SJB

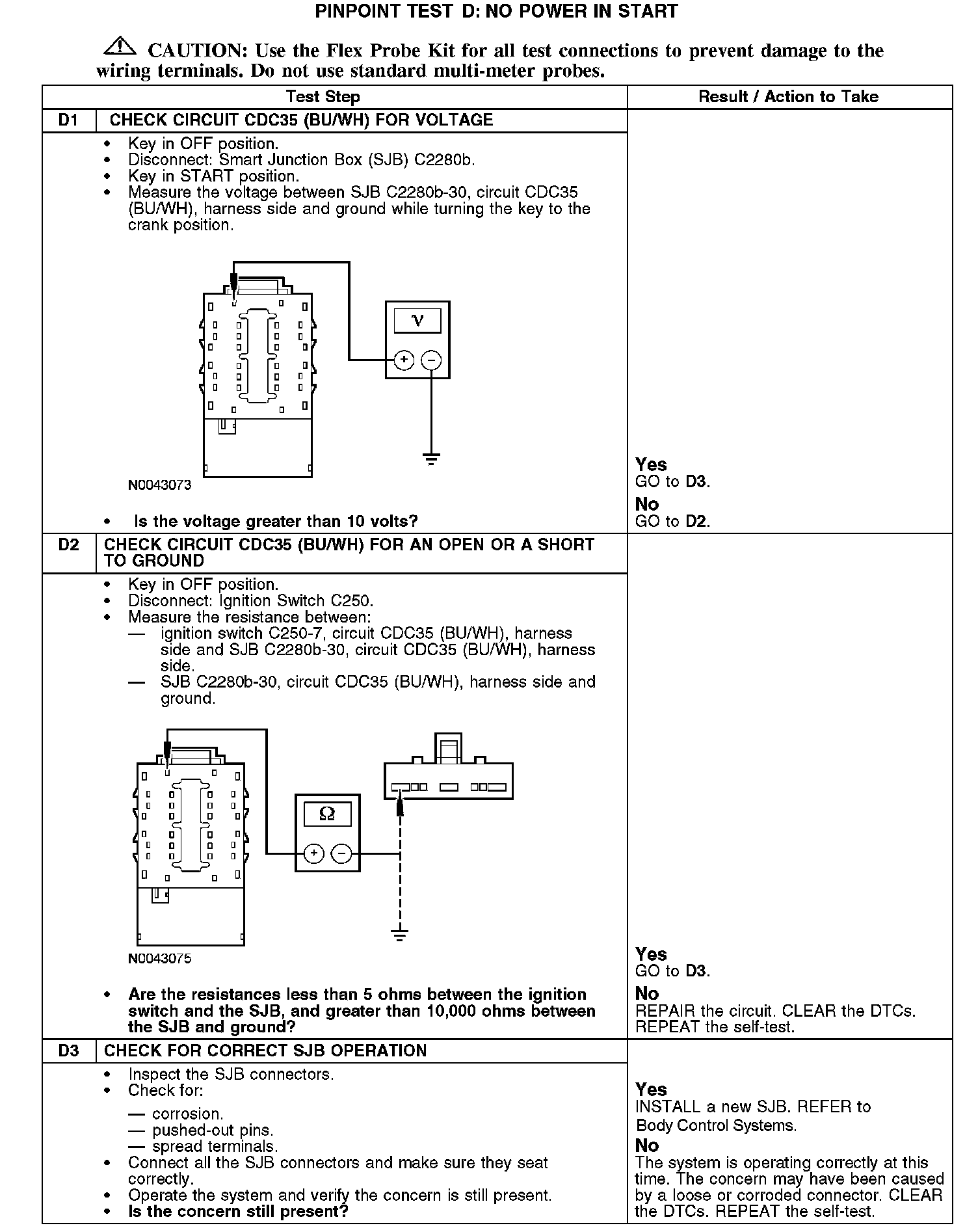

D1-D3:
