Wheel Speed Sensor - Front

Wheel Speed Sensor - Front

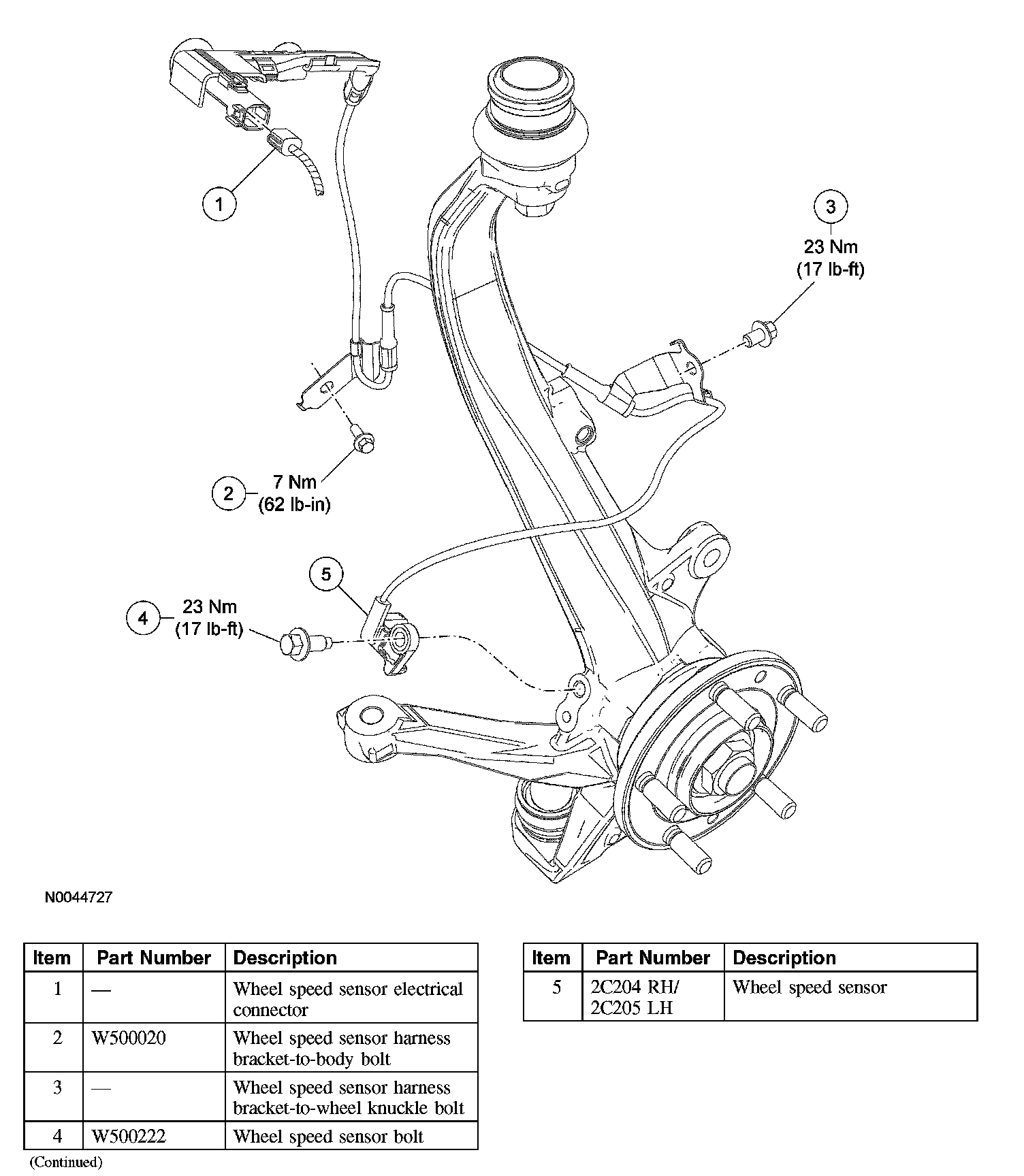

Removal and Installation
1. With the vehicle in NEUTRAL, position it on a hoist.
2. Remove the retainers and position the fender splash shield aside.
3. Disconnect the wheel speed sensor electrical connector.
4. Remove the 2 wheel speed sensor harness bracket bolts.
^ To install:
- Tighten the bracket-to-wheel knuckle bolt to 23 Nm (17 ft. lbs.).
- Tighten the bracket-to-body bolt to 7 Nm (62 inch lbs.).

5. Remove the front wheel speed sensor bolt from the knuckle and remove the wheel speed sensor.
^ To install, tighten to 23 Nm (17 ft. lbs.).

6. To install, reverse the removal procedure.
