Receiver Dryer: Service and Repair

RECEIVER DRIER CARTRIDGE

Removal and Installation

NOTE: Installation of a new receiver/drier cartridge is not required when repairing the air conditioning system except when there is physical evidence of system contamination from a failed A/C compressor or damage to the receiver/drier cartridge.

1. Recover the refrigerant.
2. With the vehicle in NEUTRAL, position it on a hoist.
3. Remove the lower radiator air deflector.

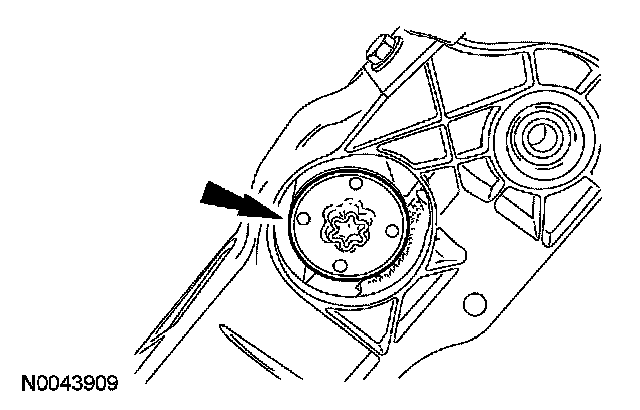

4. Unscrew and remove the plastic receiver/drier cap.







5. NOTE: If the receiver/drier plug is difficult to remove, open a refrigerant system fitting to relieve any vacuum created during refrigerant recovery, and attempt to remove the plug again.

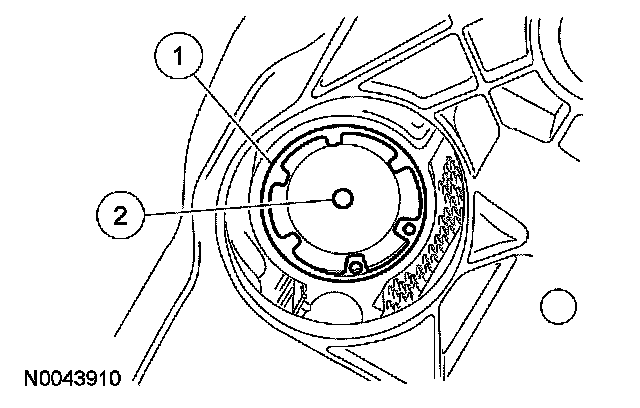

Remove the receiver/drier plug.
1 Push the receiver/drier plug upwards and remove the snap ring.
2 Install the bolt included with the A/C desiccant cartridge service kit in the center of the receiver drier plug and remove the plug.

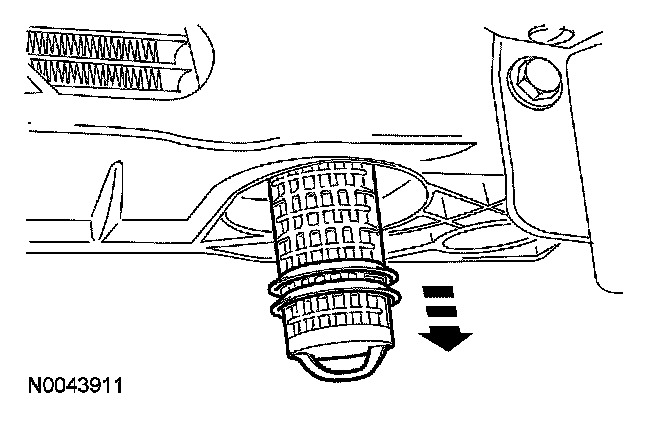

6. Using a suitable tool, grasp the receiver/drier cartridge grab handle and remove the receiver/drier cartridge.
7. To install, reverse the removal procedure.
- Lubricate the receiver/drier plug O-ring seals using residual refrigerant oil from inside the receiver/drier.
- Lubricate the refrigerant system with the correct amount of clean PAG oil.

8. Evacuate, leak test and charge the refrigerant system.
