Console - Floor

CONSOLE - FLOOR

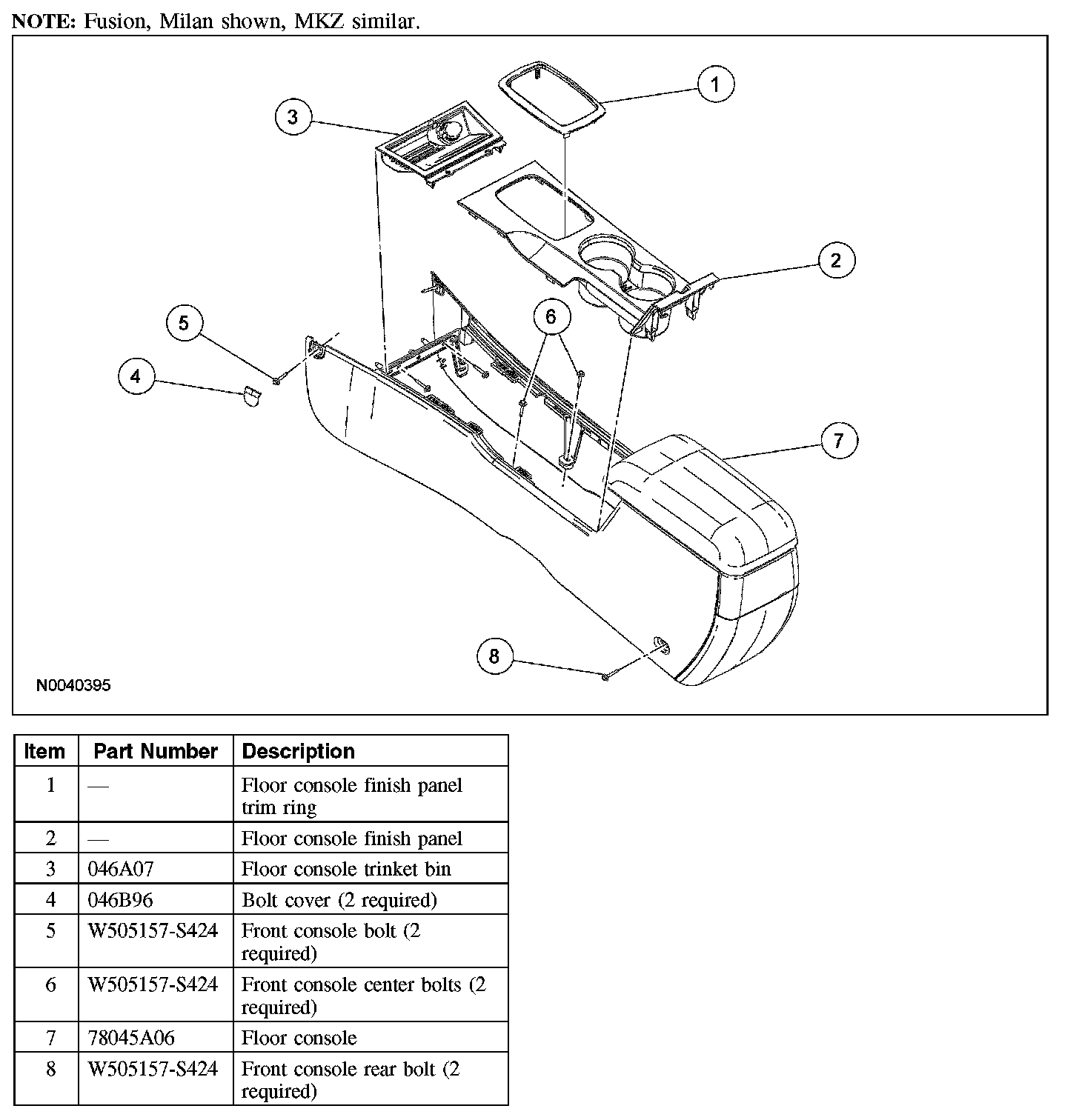

Removal and Installation

All vehicles
1. Position the seats forward and remove the 2 rear bolts.
2. Position the seats rearward.
3. Position the parking brake handle to the full-up position, if equipped.

Fusion, Milan
4. Remove the floor finish panel trim ring, if equipped with automatic transmission.

All vehicles
5. Remove the manual transmission gearshift knob, if equipped.
6. Open the storage compartment door.
7. Remove the floor console finish panel.
- Disconnect the electrical connectors.

Fusion, Milan
8. Remove the trinket tray.
- Disconnect the electrical connector.
- Disconnect the audio jack connector.

9. Remove the 2 bolt covers.
10. Remove the 2 bolts.

MKZ only

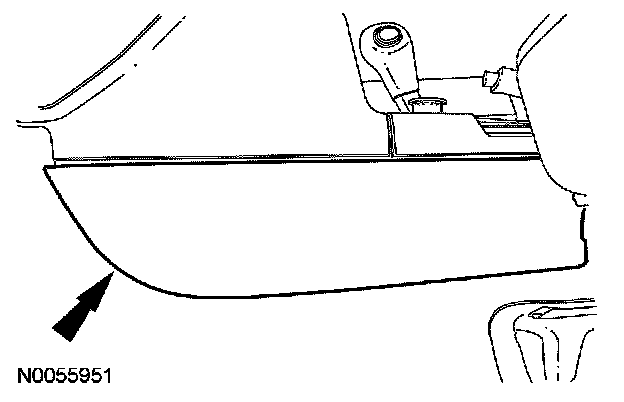

11. Remove the 2 console side finish panels.

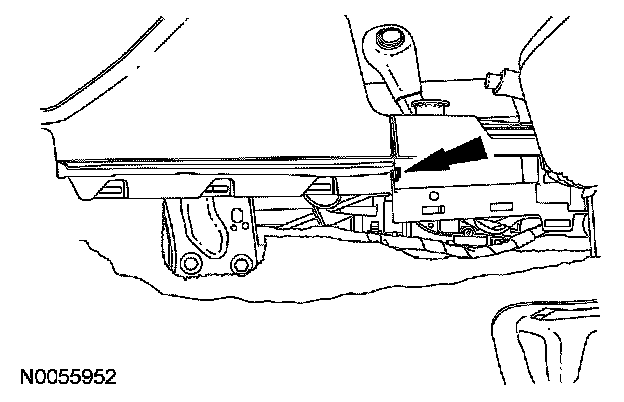

12. Remove the 2 console-to-instrument panel bolts (one each side).

All vehicles
13. Remove the remaining 4 bolts and remove the floor console.
14. To install, reverse the removal procedure.
