Flywheel: Service and Repair

Flywheel

Removal
1. With the vehicle in NEUTRAL, position it on a hoist.
2. Remove the clutch.
3. Remove the 6 bolts and the flywheel.

Installation

1. NOTE: Special bolts are used for installation. Do not use standard bolts.

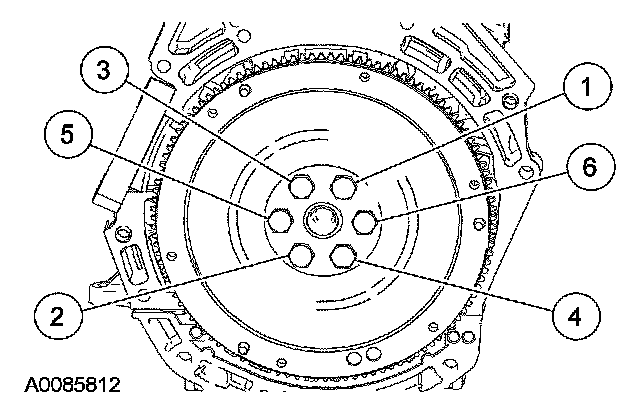

Install the flywheel and tighten the bolts in the sequence shown in 3 stages.
^ Stage 1: Tighten to 50 Nm (37 ft. lbs.).
^ Stage 2: Tighten to 80 Nm (59 ft. lbs.).
^ Stage 3: Tighten to 112 Nm (83 ft. lbs.).





2. Install the clutch and manual transaxle.
