Selector Lever Bezel

Selector Lever Bezel

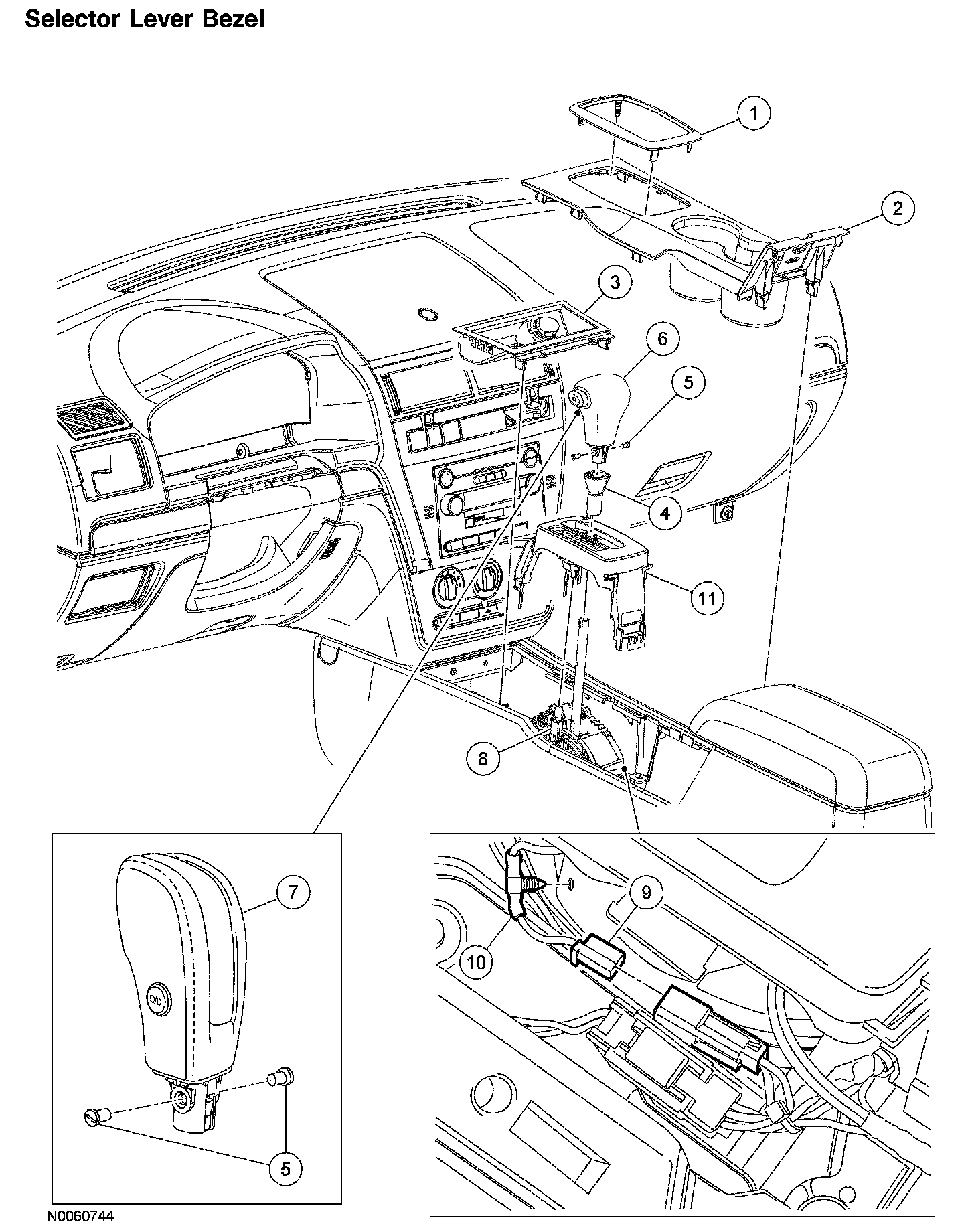

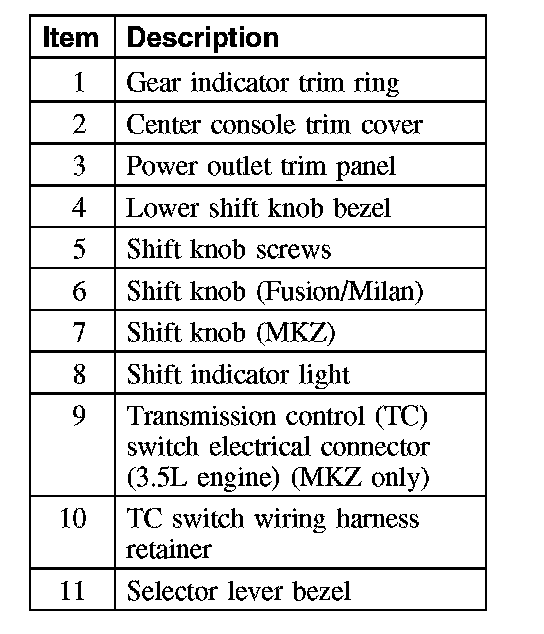

Selector Lever Bezel (Part 1):

Selector Lever Bezel (Part 2):

Removal
All vehicles

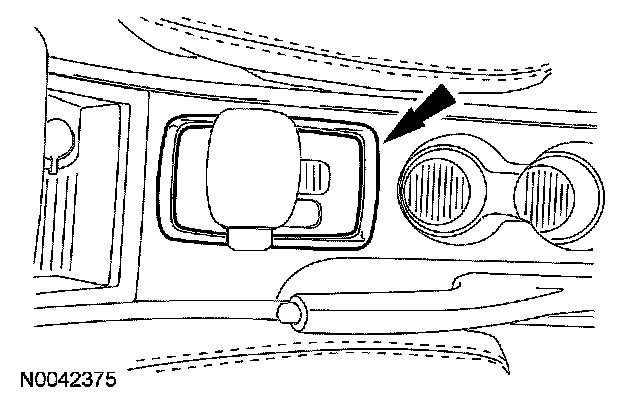

1. Remove the PRNDL trim ring.

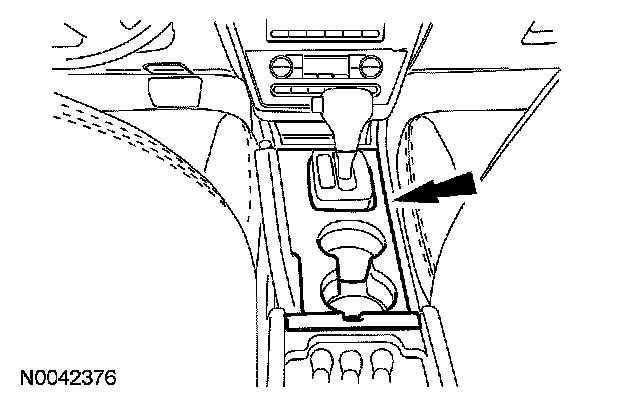

2. Remove the upper console panel.





Fusion/Milan

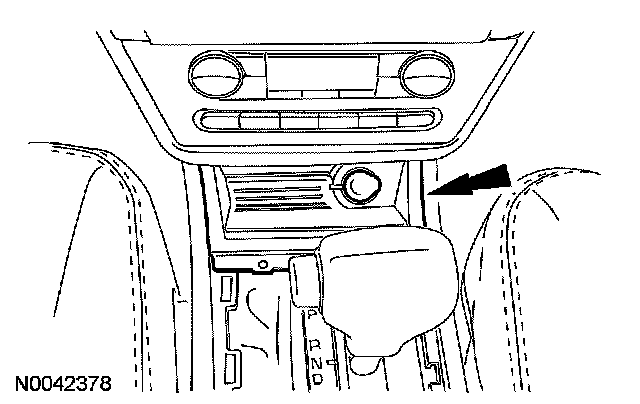

3. Remove the power outlet trim panel from the center console.

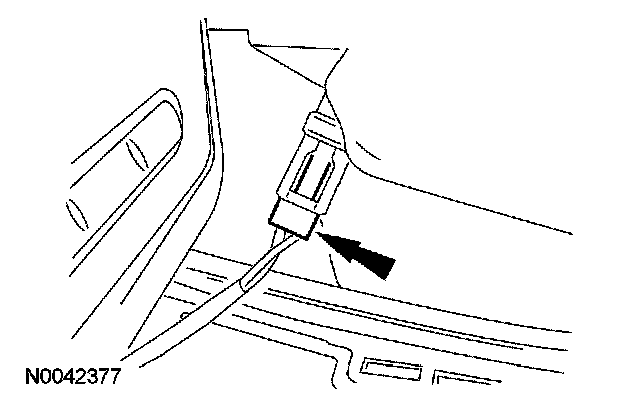

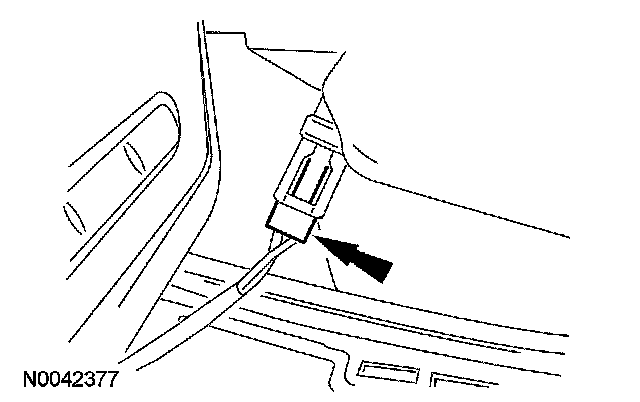

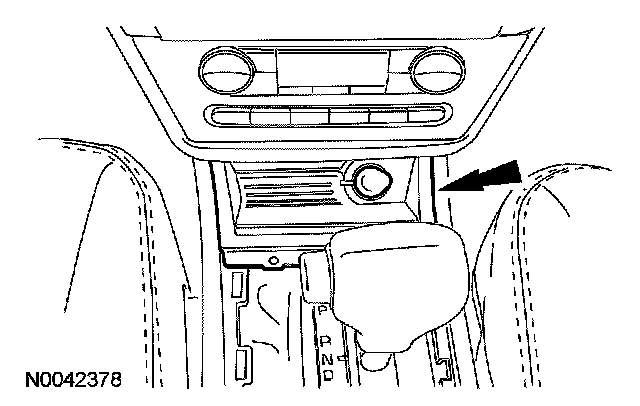

4. Disconnect the electrical connector and remove the power outlet trim panel.





All vehicles

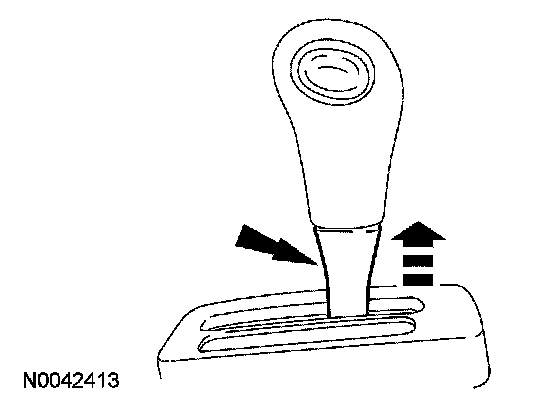

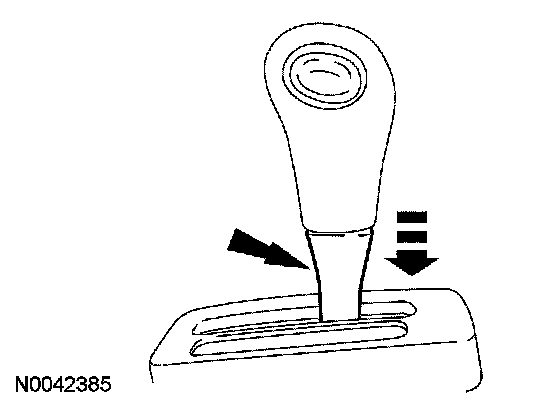

5. Slide the lower shift knob bezel downward.

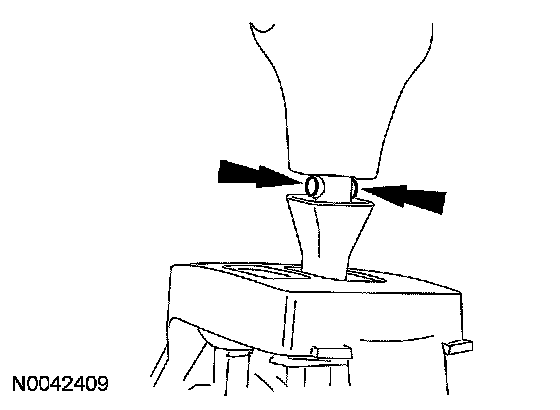

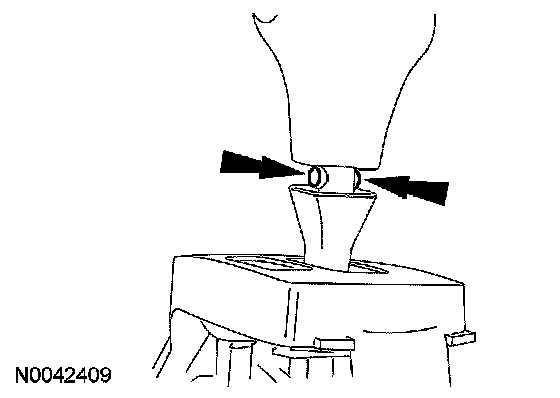

6. Remove the 2 bolts from the selector lever knob.





Vehicles equipped with a light bulb

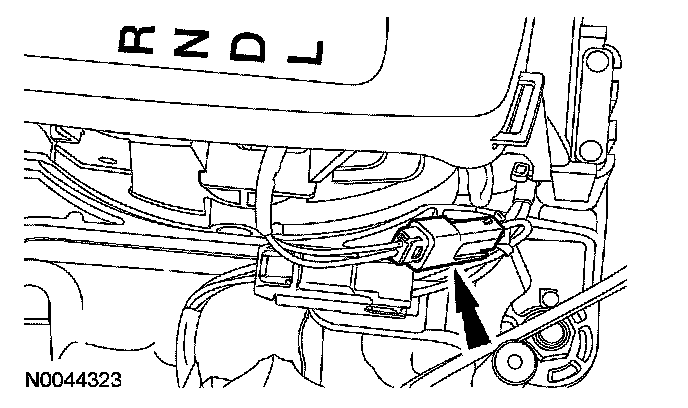

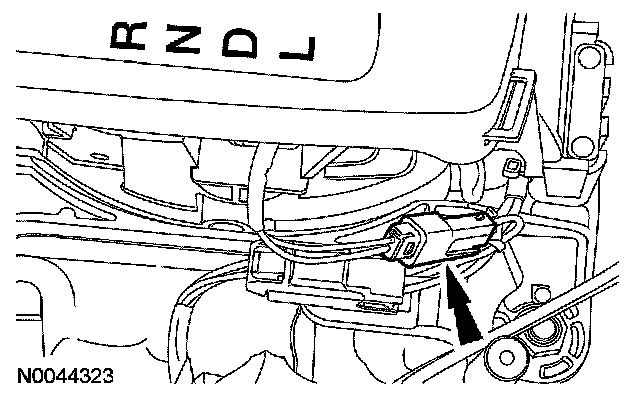

7. Disconnect the light from the PRNDL bezel.





Vehicles equipped with LED illumination

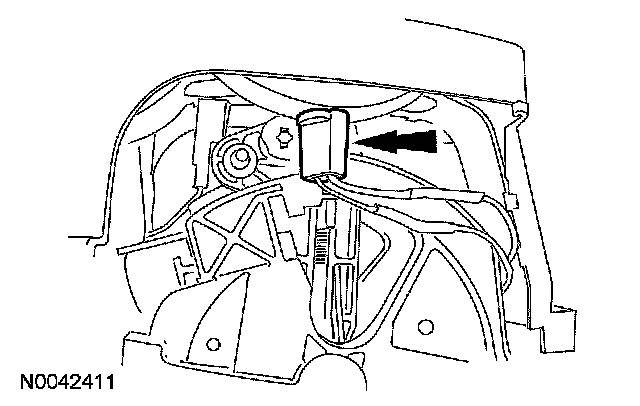

8. Disconnect the LED electrical connector.





Vehicles equipped with a transmission control (TC) switch

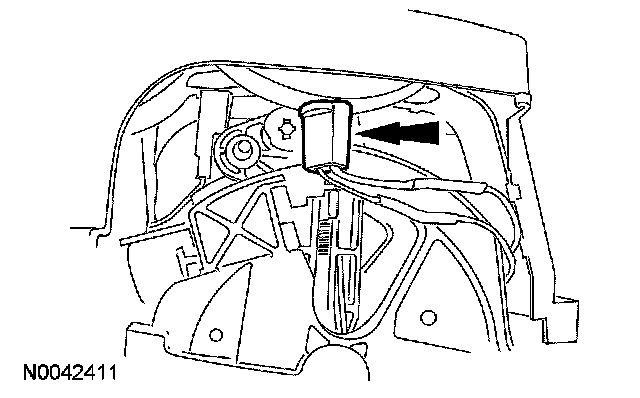

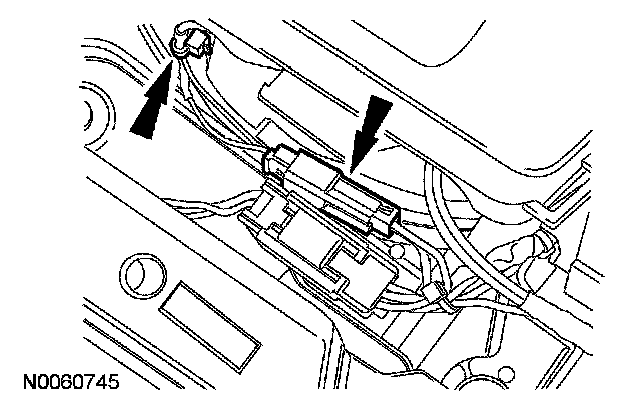

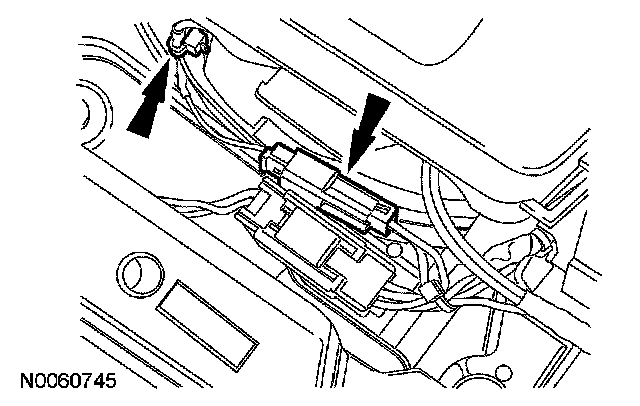

9. Disconnect the transmission control (TC) switch electrical connector and remove the wiring harness fastener from the selector lever housing.





All vehicles

10. NOTE: Selector lever removed for clarity.

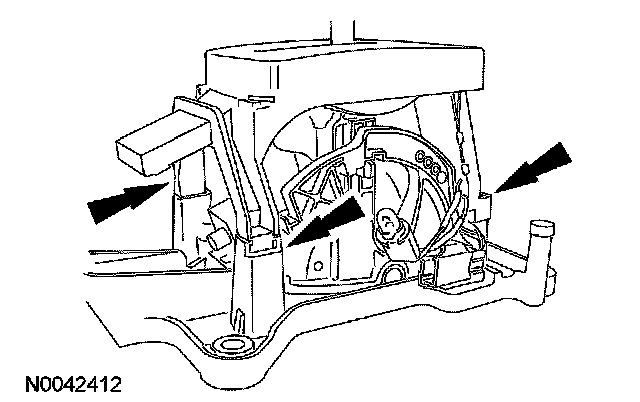

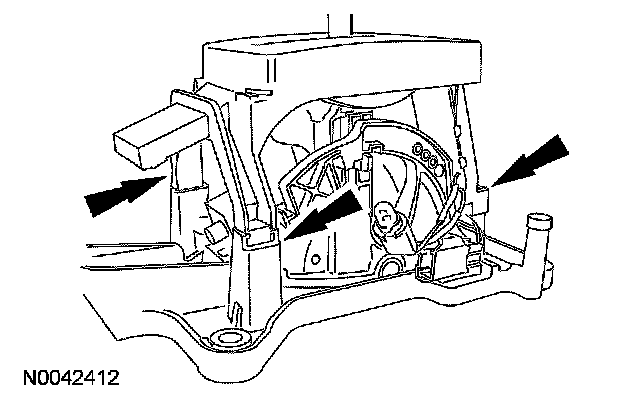

Release the 3 tabs and remove the PRNDL bezel selector lever knob and knob bezel.





Installation
Vehicles equipped with a TC switch
1. Route the TC switch wiring harness through the selector lever knob bezel and the PRNDL bezel.

All vehicles

2. NOTE: Selector lever removed for clarity.

Install the PRNDL bezel, selector lever knob and knob bezel on the selector lever.
- Make sure that the 3 locking tabs are locked in place.





Vehicles equipped with a TC switch
3. Connect the TC switch electrical connector and install the wiring harness retainer on the selector lever housing.





Vehicles equipped with LED illumination
4. Connect the LED electrical connector.





Vehicles equipped with a light bulb
5. Connect the light to the PRNDL bezel.





All vehicles
6. Install the shift knob and the bolts.





7. Slide the lower shift knob bezel up and snap it into place.





Fusion/Milan
8. Connect the power outlet electrical connector.





9. Install the power outlet trim panel in the center console.





All vehicles
10. Install the upper console panel.





11. Install the PRNDL trim ring.
