System Specifications

Timing chain guide bolts 10 Nm (89 inch lbs.)
Timing chain tensioner bolts 10 Nm (89 inch lbs.)
Engine front cover timing hole plug (lower) 12 Nm (9 ft. lbs.)
Engine front cover timing hole plug (upper) 10 Nm (89 inch lbs.)

CAUTION: The crankshaft must remain in the TDC position during installation of the pulley bolt or damage to the engine can occur. Therefore, the crankshaft pulley must be held in place with the special tool and the bolt should be installed using hand tools only.

CAUTION: Do not reuse the crankshaft pulley bolt.

Crankshaft Pulley bolt

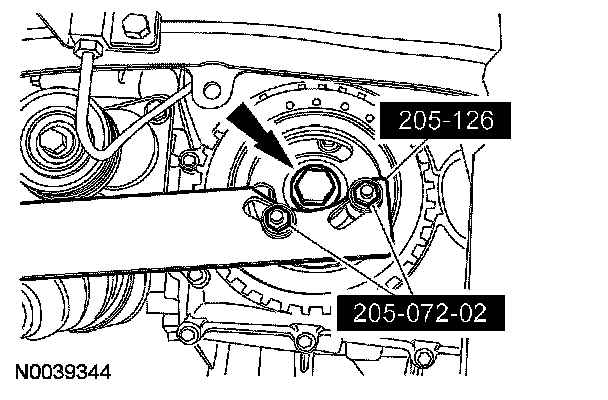

^ Install a new crankshaft pulley bolt. Using the special tools to hold the crankshaft pulley in place, tighten the crankshaft pulley bolt in 2 stages:
^ Stage 1: Tighten to 100 Nm (74 ft. lbs.).
^ Stage 2: Tighten an additional 90 degrees (1/4 turn).





Engine Front Cover

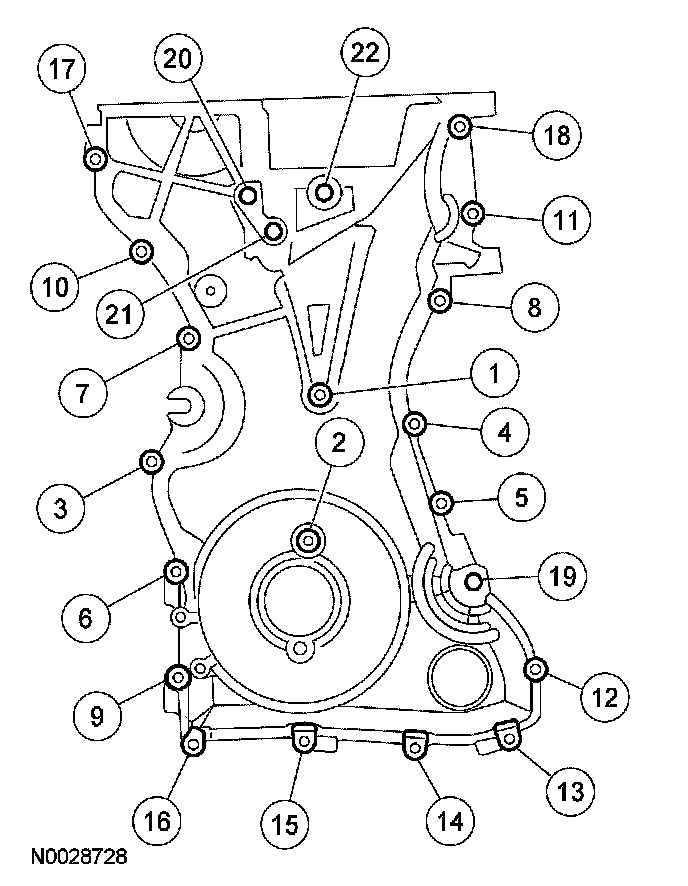

Install the engine front cover. Tighten the bolts in the sequence shown, to the following specifications:
^ Tighten the 8-mm bolts to 10 Nm (89 inch lbs.)
^ Tighten the 13-mm bolts to 48 Nm (35 ft. lbs.)
